Xinpuguang 100W 12V Solar Panel kit

$289.90
Shipping from:
Quantity:

✈ Solar Panel
Rated Power 100W
Style: Monocrystalline
Operating Voltage(Vmp): 18V
Open circuit voltage(Voc): 21.6V
Short circuit current (Isc): 6.06 A
Working current (Imp): 5.55A
Max System Voltage: 1000VDC(IEC)/600V DC (UL)
Temperature range: -40 Degree to 80 Degree:

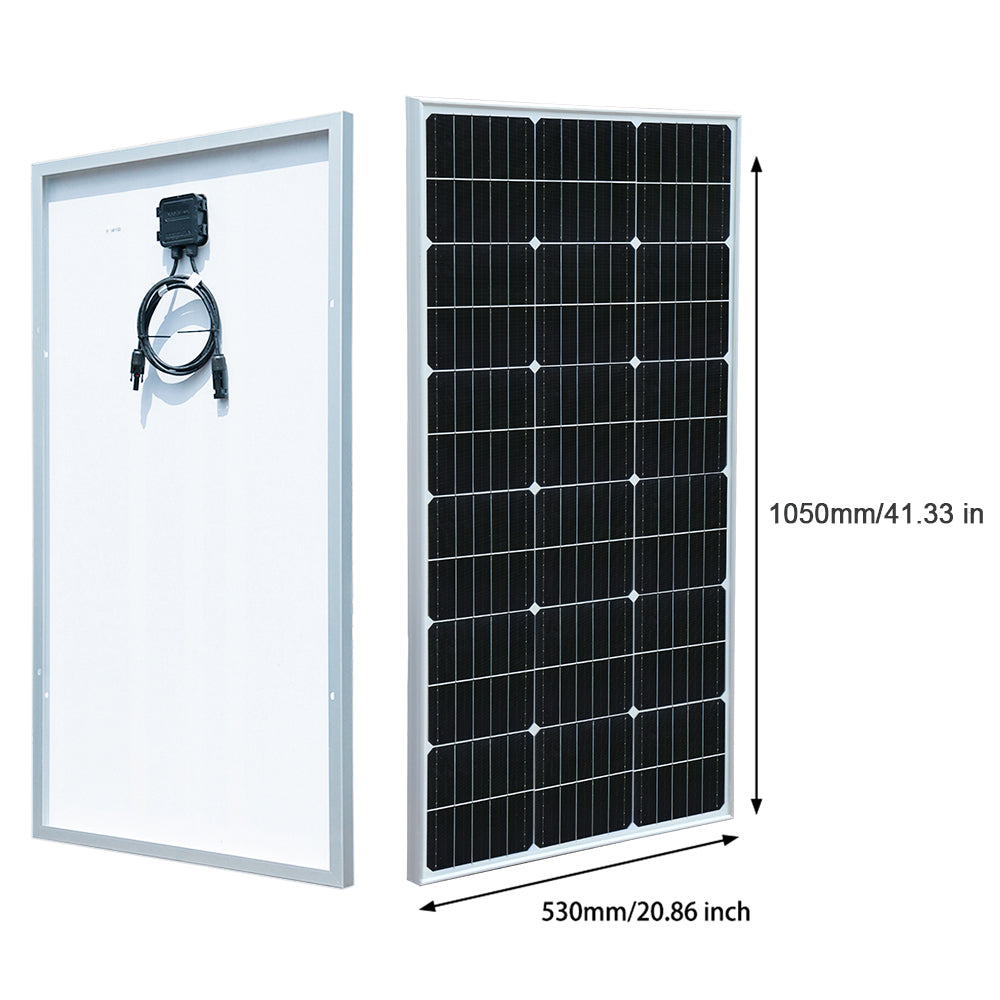

Dimensions: 1160*530*2.5MM
Weight : 6.5kg

✈ 10A Controller
● 3-Stage Intelligent PWM charging:Bulk, Boost/Equalize, Float
● Support 3 charging options: Sealed, Gel, and Flooded
● LCD display design, dynamically displaying device’s operating data and working condition
● Double USB design, the power supply charge for electronic equipment
● With humanized button settings, the operation will be more comfortable and convenient
● Multiple load control modes
● Energy statistics function
● Extensive Electronic protection

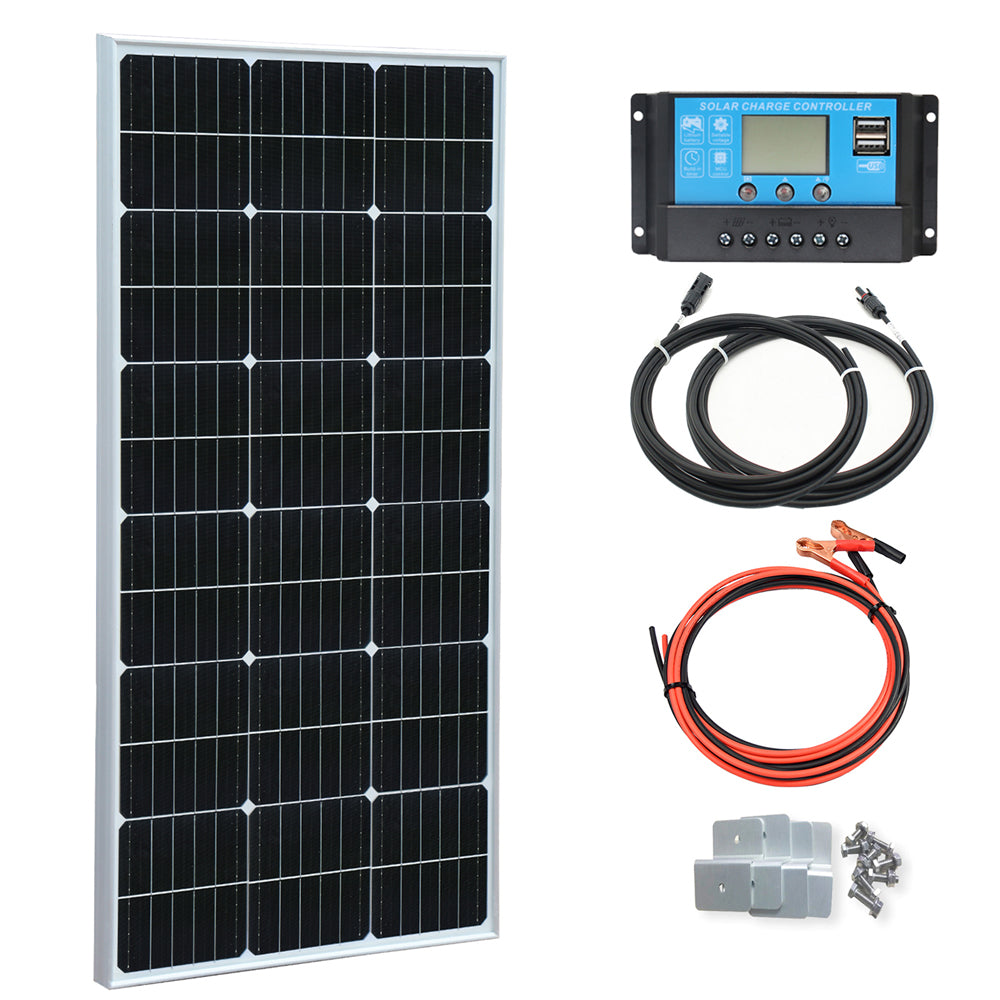

✈ Packing list
1. pcs 100w solar panel
2. 10A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip (connect to battery)

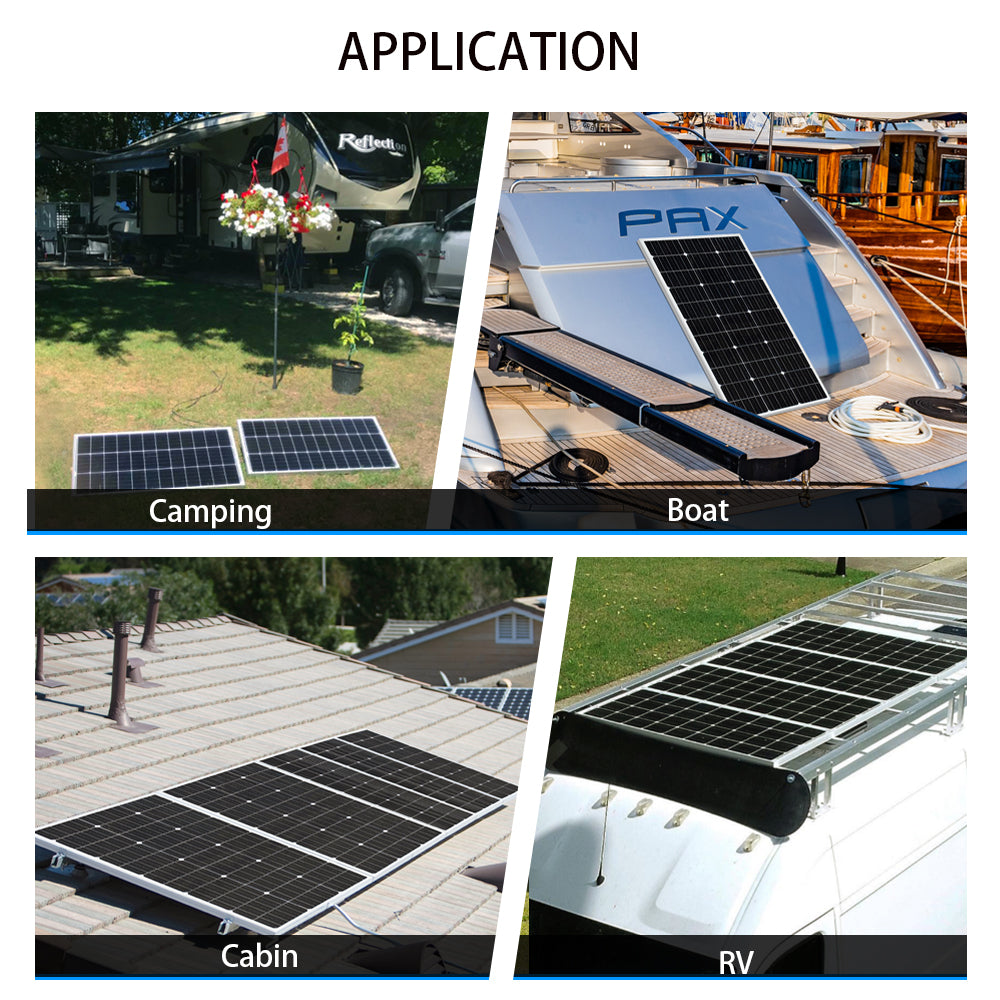

Basic component for on-grid, off-grid solar panel system, RV, boat, Green house solar panel system

Easy Installation with pre-drilled hole. each solar panel comes with a 90cm 12AWG cable with By-Pass Diode to minimize the impact of shade.

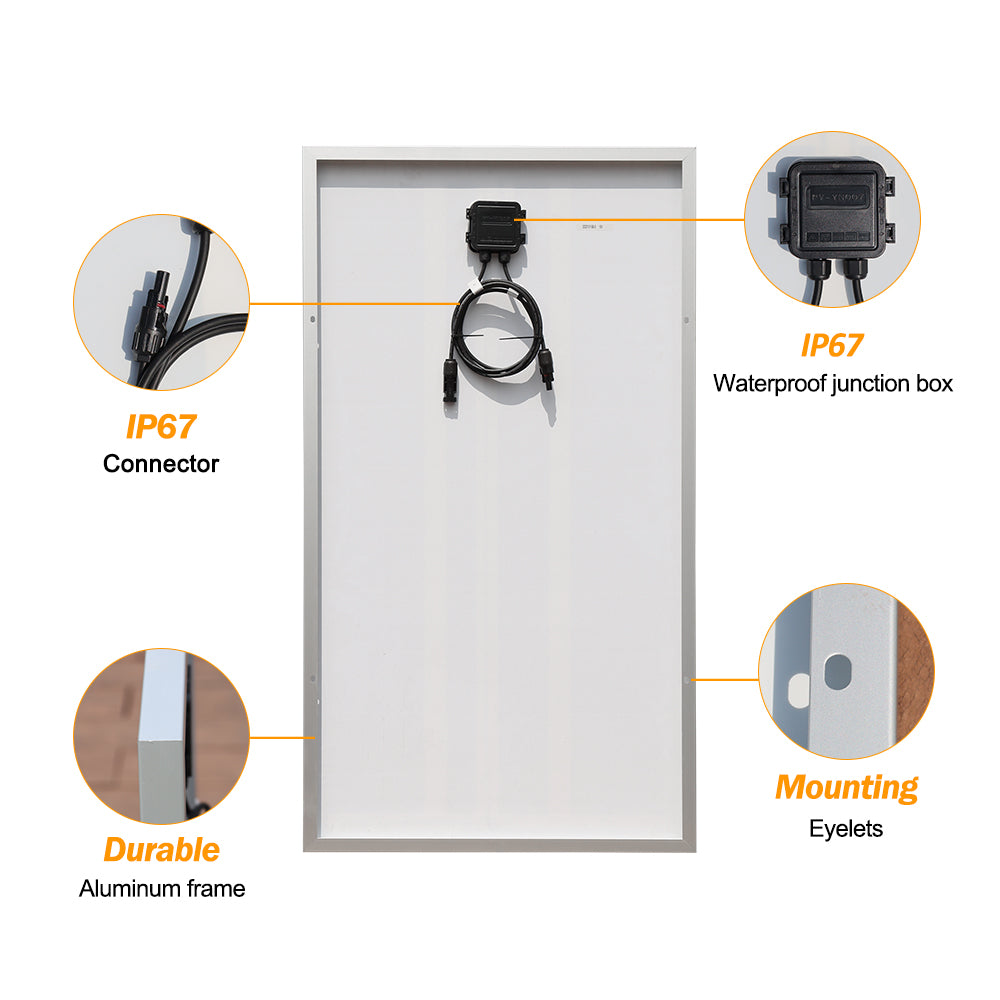

Waterproof IP-65 Rated Junction Box: Advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).

Resistance to Salt Corrosion and Humidity

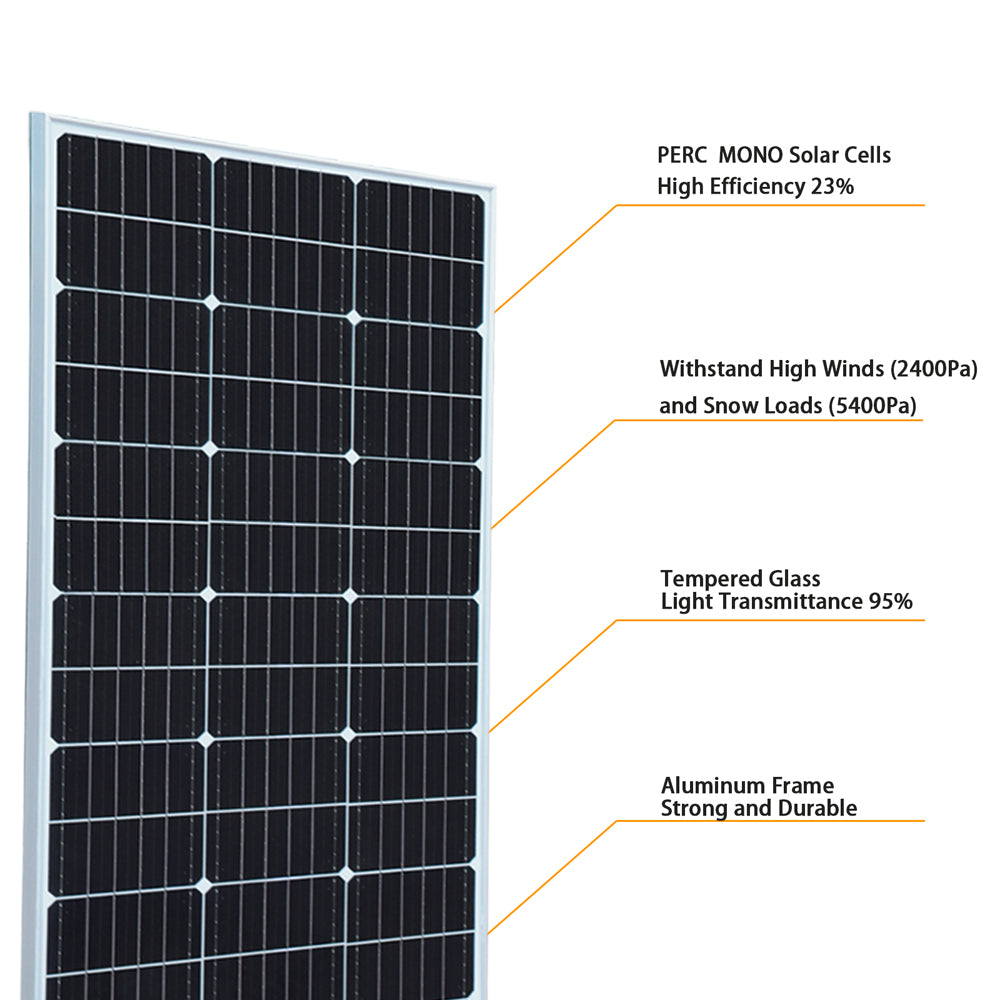

Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)
