1 set of 4 in 1 adapter only
Product Name: PV Connector
Working current: 50A
Withstand voltage: DC1000V
Contact resistance: <= 0.5mΩ
Insulation resistance: > 500MΩ
Applicable single core cable section: 1.5mm2-6mm2
Cable outer diameter range: Φ5mm~7mm
Ambient temperature: -40°C ~ +90°C
Protection level: IP67
Security level: II
Insertion force: ≤ 50N
Pulling force: ≥ 50N
Insulation: PPO, black
Contact: copper cn, nickel-plated SN
Flame Retardant Rating: UL94-VO
Terminal connection method: crimp

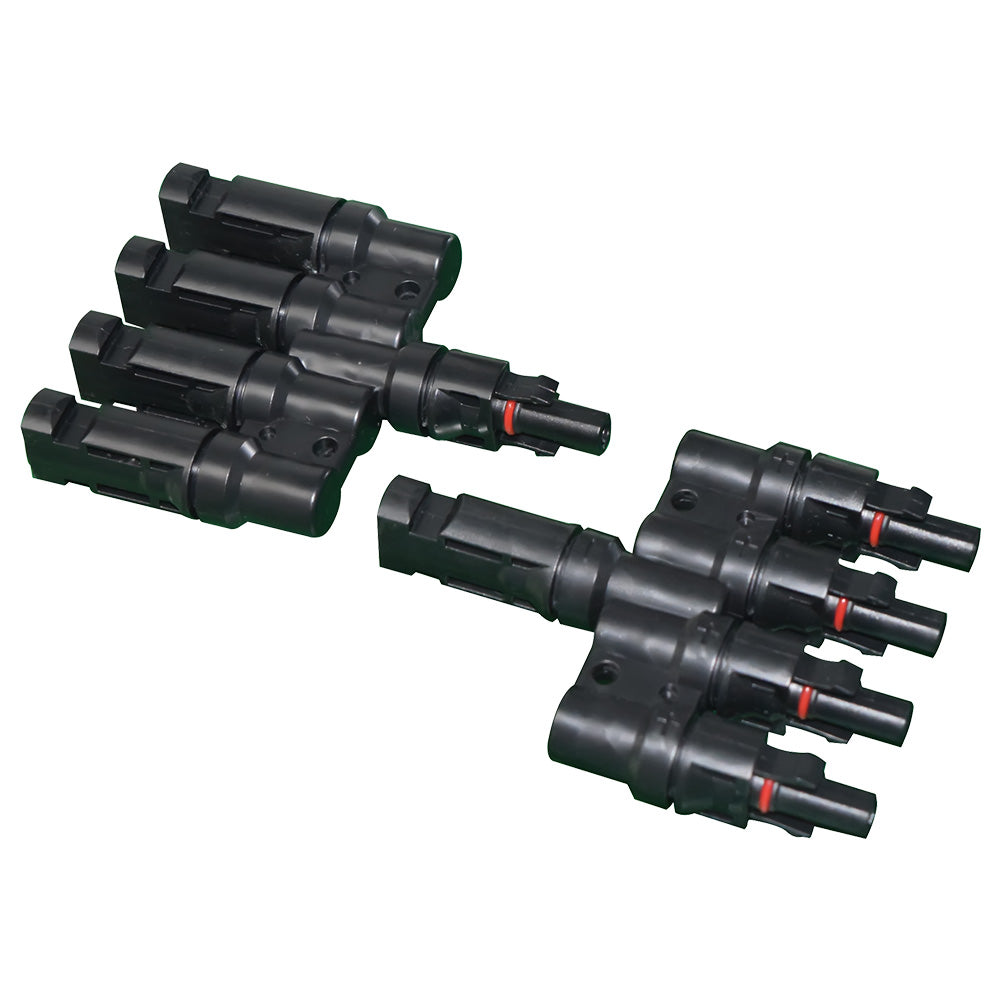

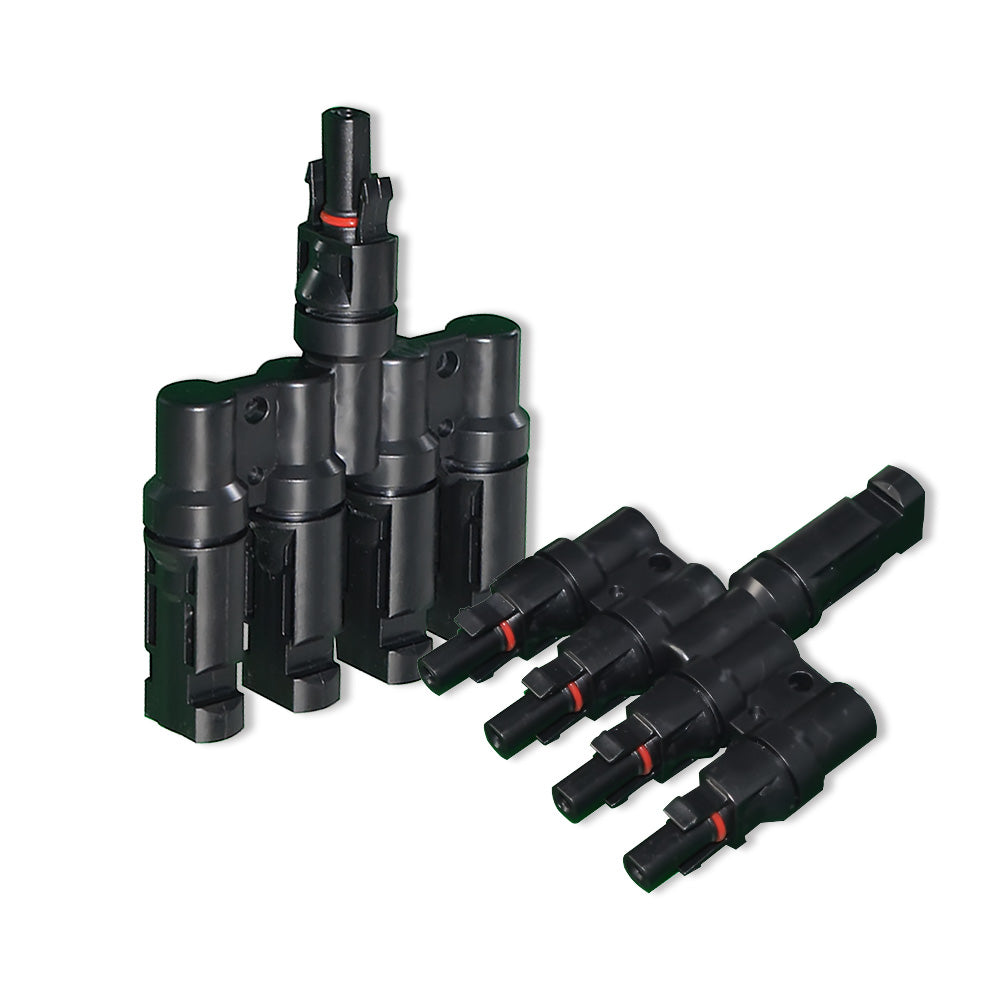

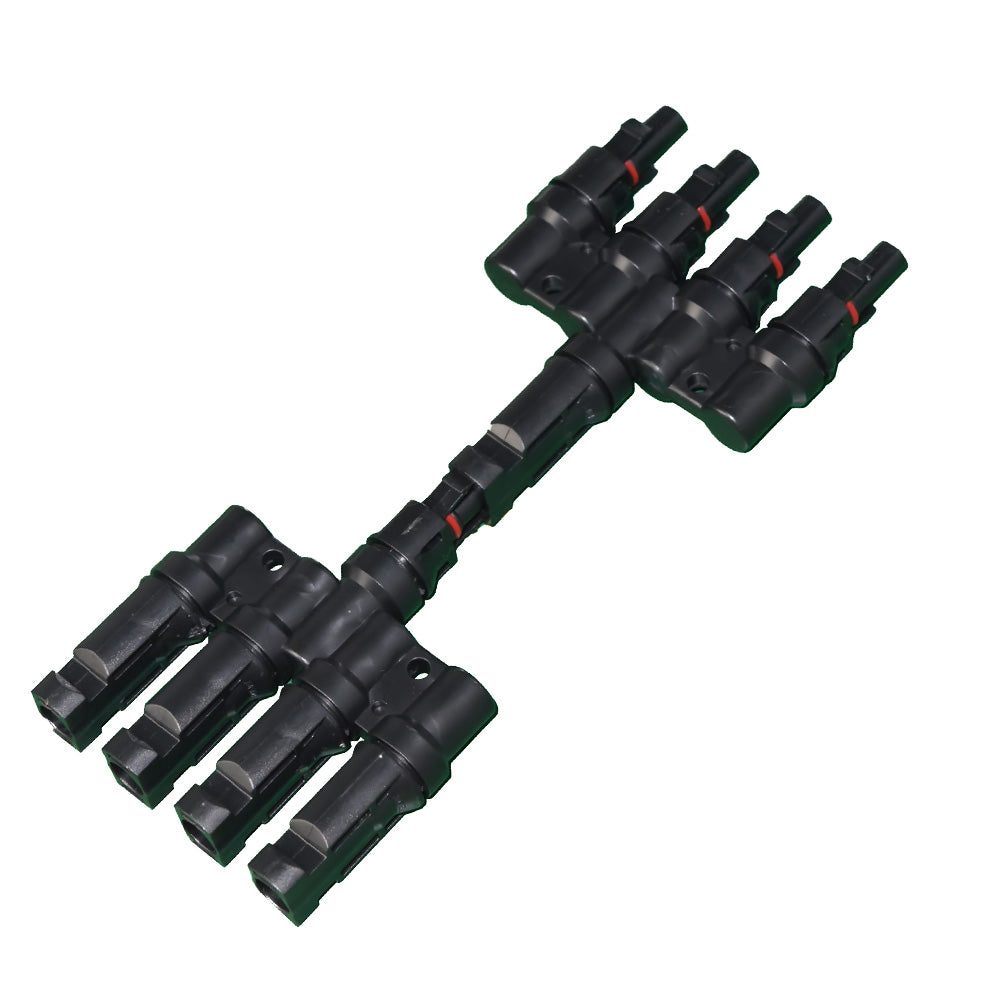

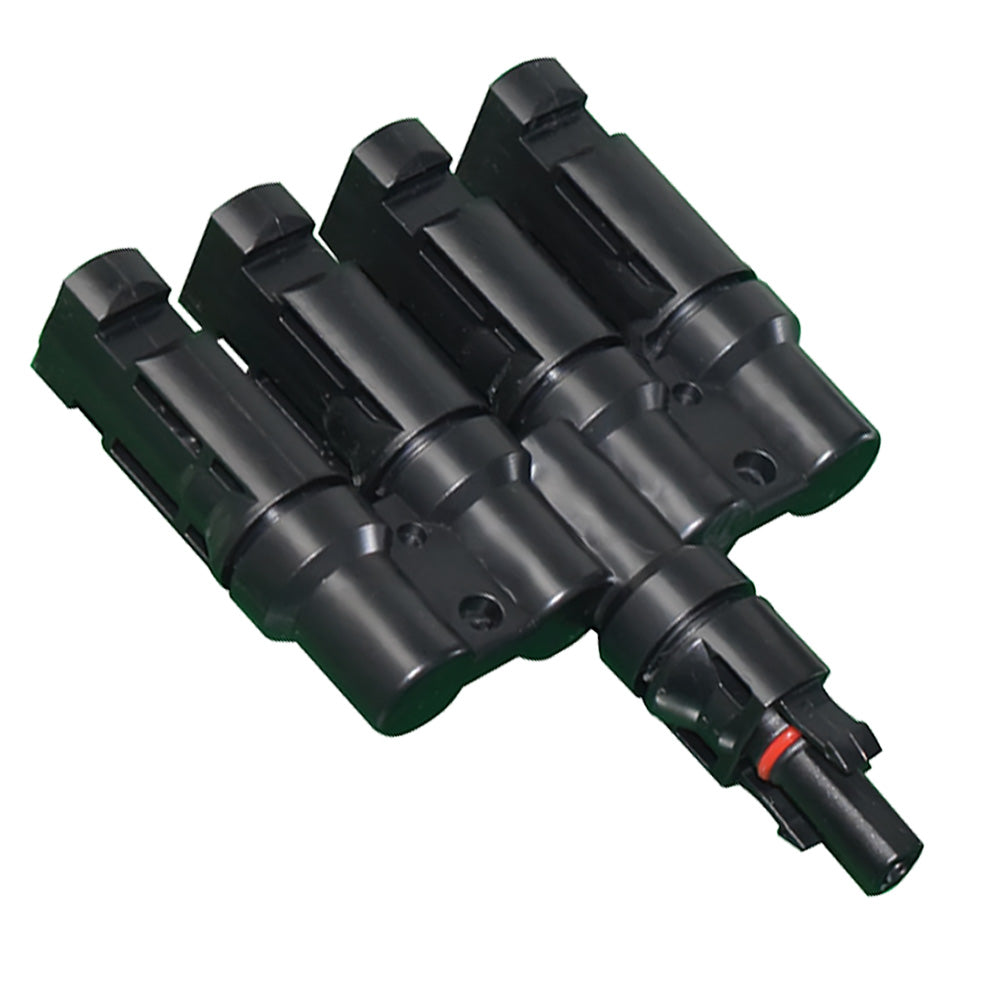

▶ PV connector is a special connector for photovoltaic panels in parallel form an array.
▶ Easy to connect, waterproof and dustproof, easy to use.
▶ The shell has strong anti-aging and UV resistance.
▶ The connection of the cable is connected by pressing and tightening, and the fixing of the male and female heads is stable and self-locking.
