【Maximum power voltage】18V
【Maximum power current】5.55A
【Open circuit voltage】22v
【Short circuit current】5.95A
【Number of cells】36pcs

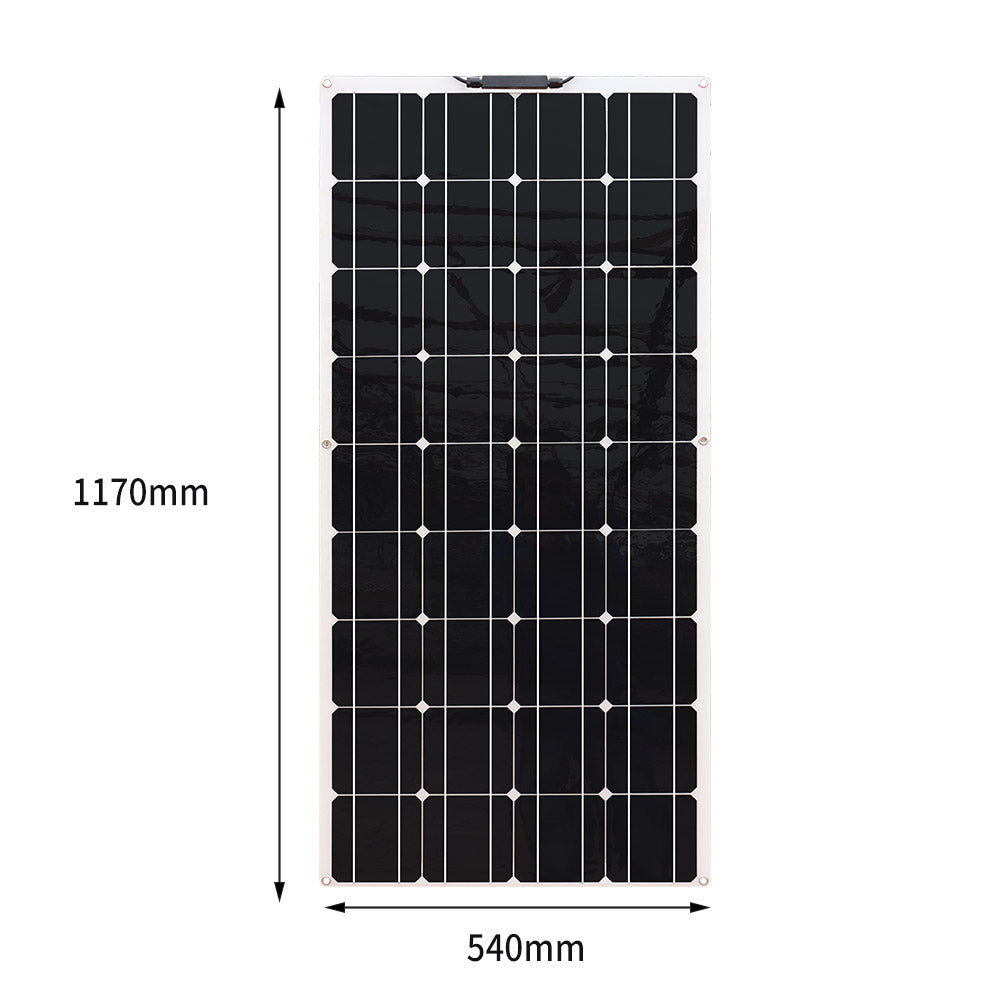

【Size of module】1175X540X3mm
【Temperature Range】-20- +60 ℃
【Tolerance Wattage】 +/-5%
【Weight per piece】 2.2kg
【Junction Box Type】IP65
【Length of Cables】 90cm
【Cell Efficiency】 > 19.5%
【Module Efficiency】 > 19%
【Standard Test Conditions】AM1.5 100mw/cm2 25 ℃
【Temperature coefficients of Isc (%)】0.065+/-0.015%/ ℃
【Temperature coefficients of Voc (%)】-(2.23+/-0.1) / ℃
【Temperature coefficients of Pm (%)】-(0.5+/-0.05)/ ℃
【Temperature coefficients of Im (%)】 +0.1/ ℃
【Temperature coefficients of Vm (%)】-0.38/ ℃

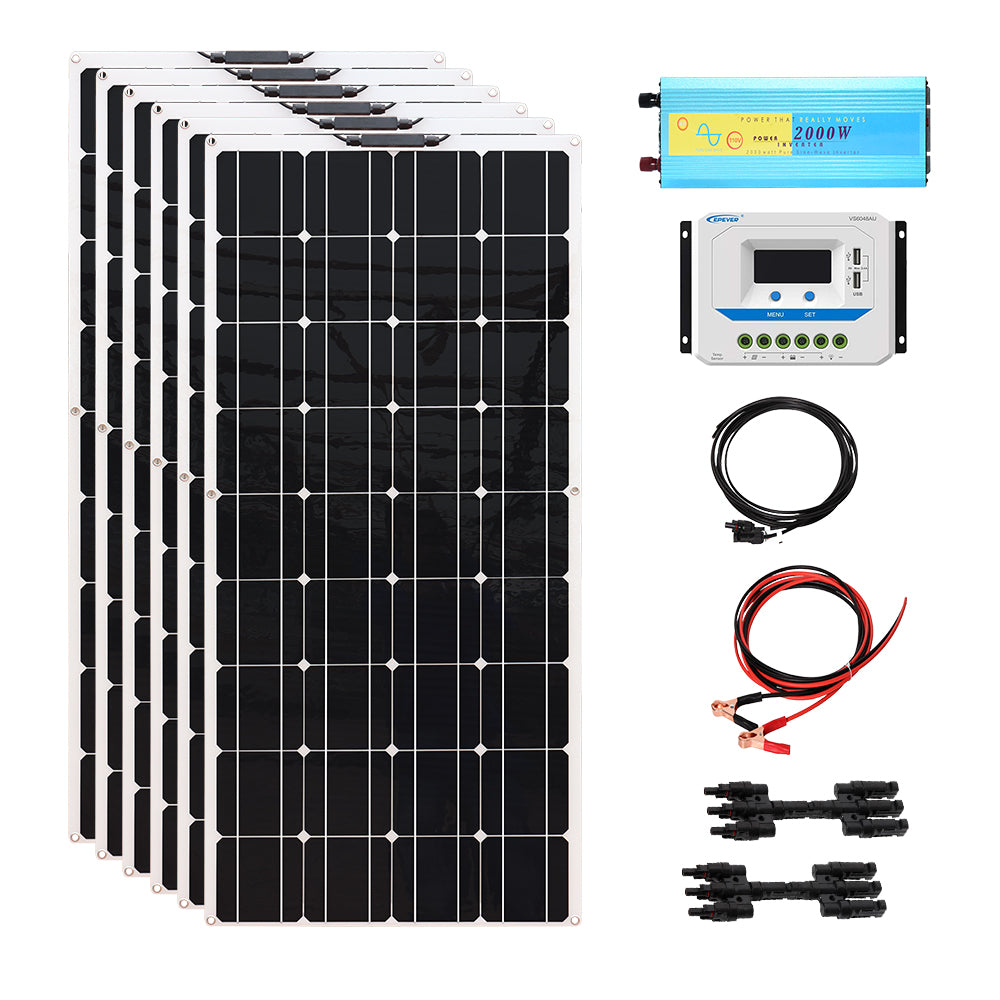

1. 100Wx6 pcs flexible solar panel
2. 1 piece 45A solar controller
3. 1 piece pure sine wave 24V/2000W inverter
4. 2 sets 3 in 1 PV connector
5. 2 sets 3M cable with PV Connector(1*2.5mm2）
6. 1X3M cable with alligator clip（1*6 mm2）
✈Practicality: This solar panel kit can be used as a 24V off-grid system.suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.

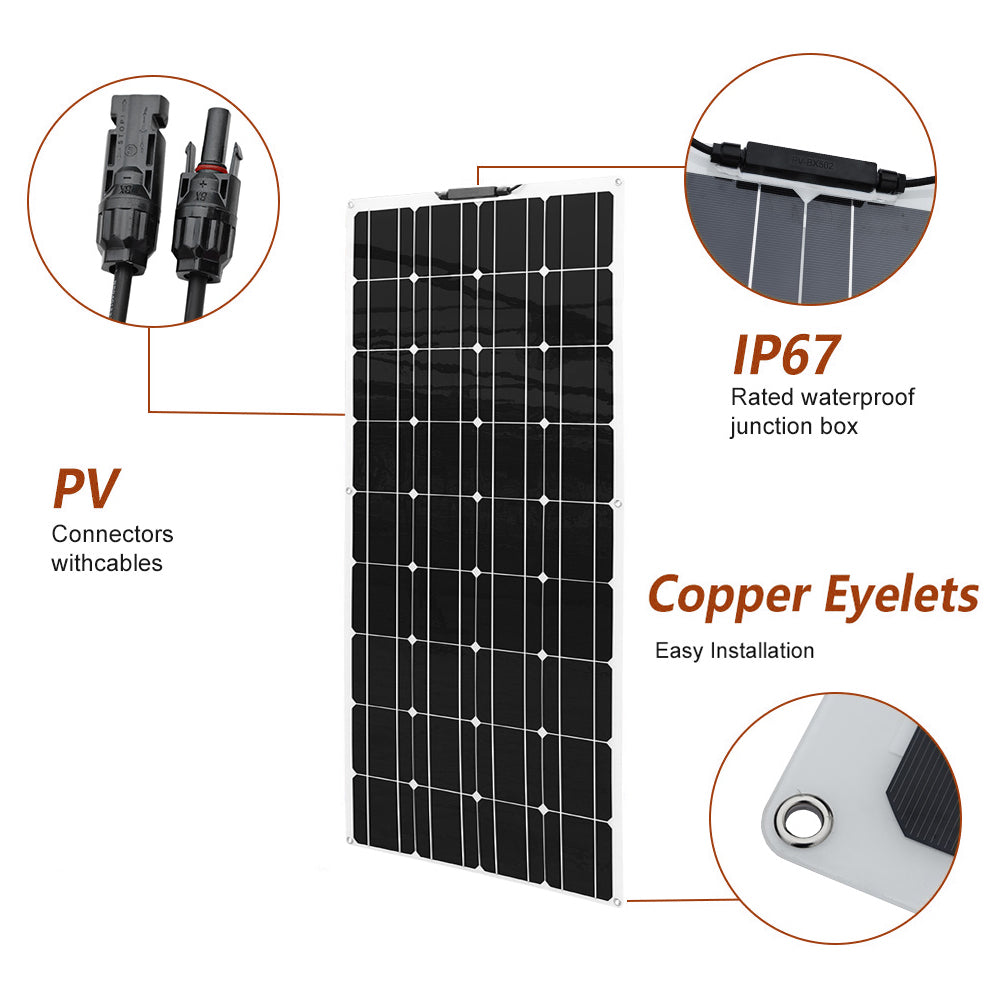

✈Easy Installation: The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.

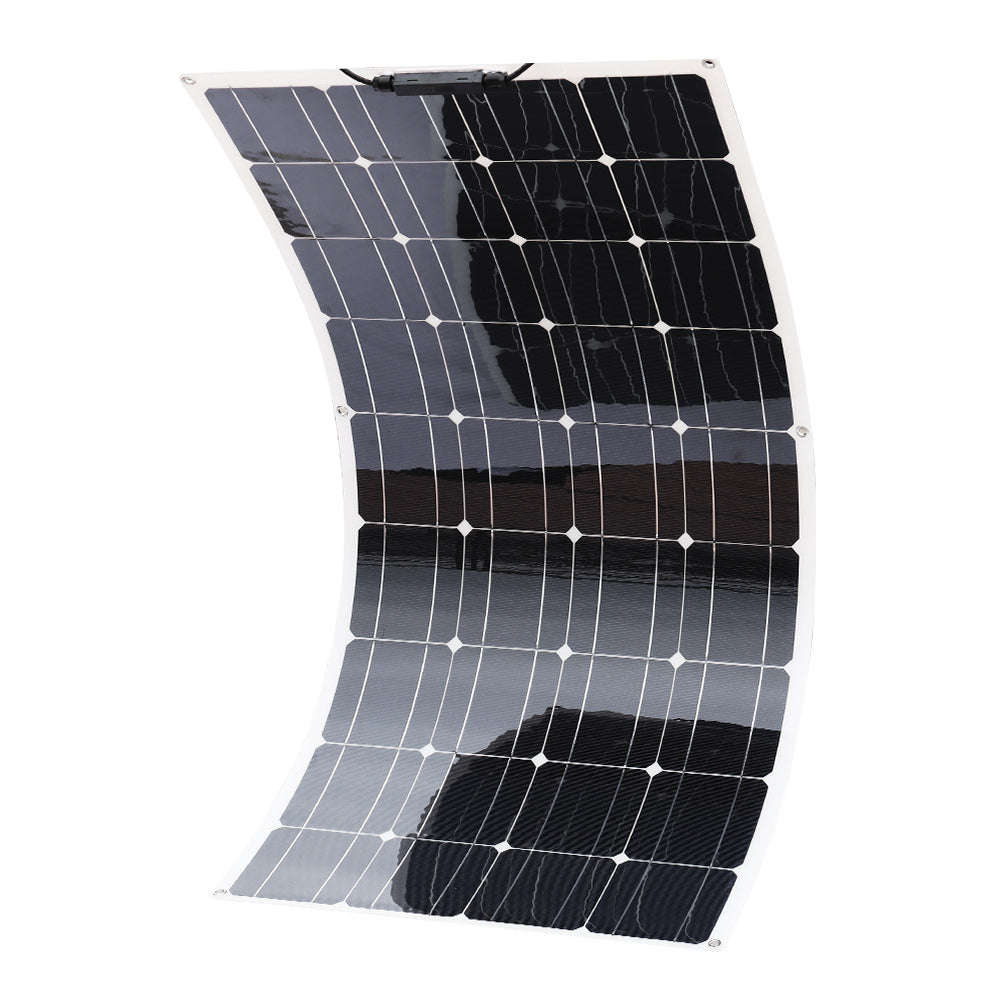

✈Flexible: This panel is a good choice for curved surfaces of RV, boat,yacht,truck, car, cabin, camper , tent , trailer, golf cart or any other irregular surface.

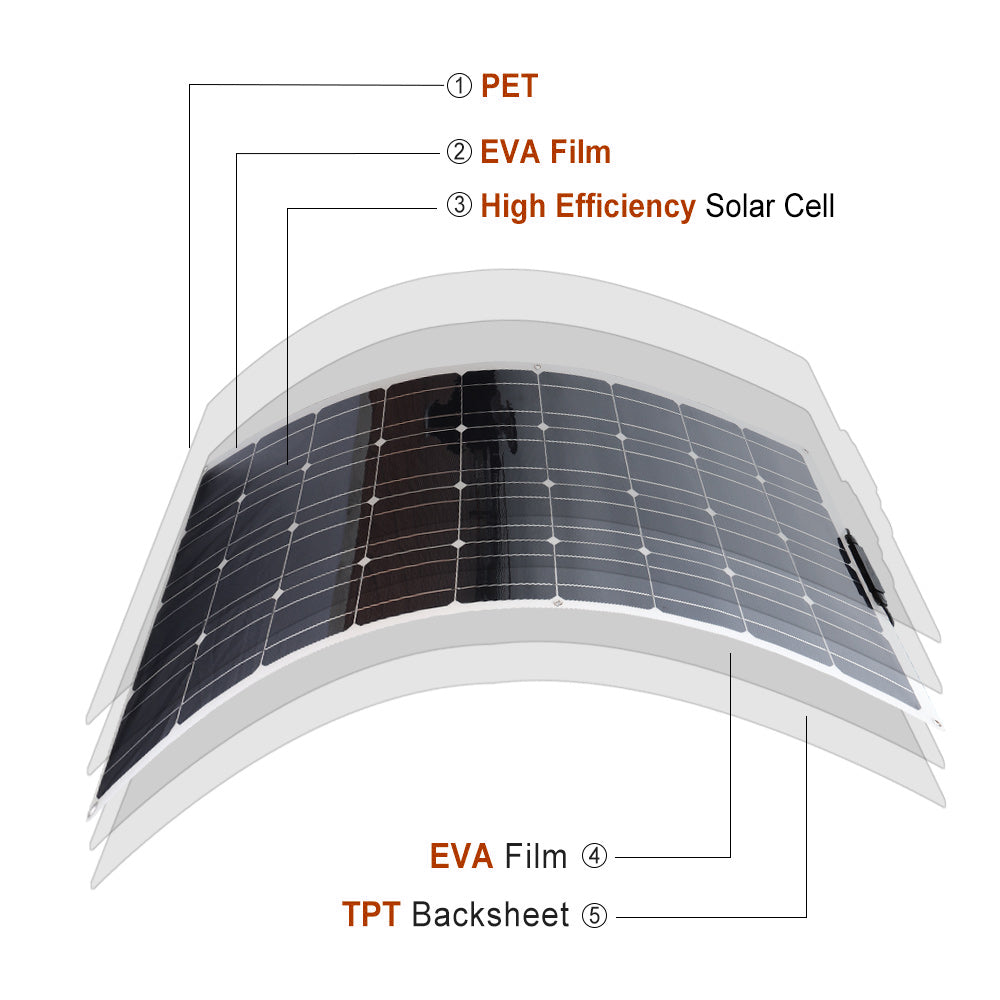

✈Reliable: Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.
1. The solar kit connection is divided into parallel connection and serial connection. The controller must first connect the battery, and then connect the solar panels.
2. solar panels connected in series or in parallel, attention should be paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.
3. The total input power of the solar panel cannot be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.
4. The cable is connected to each component, the connection should be stable and there should be no looseness.
5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.
6.When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.
