Xinpuguang 50W Monocrystalline Flexible Solar Panel

$97.90 $129.90
ship from:
Quantity:


Maximum power(Pmax) 50W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 19.2V
Short circuit current(Isc) 3.43A
Maximum power voltage(Vmp) 16V
Maximum power current(Imp) 3.12A
Operating temperature(NOCT) 45±2℃
Temperature range -40℃~+80℃
Weight 1030g

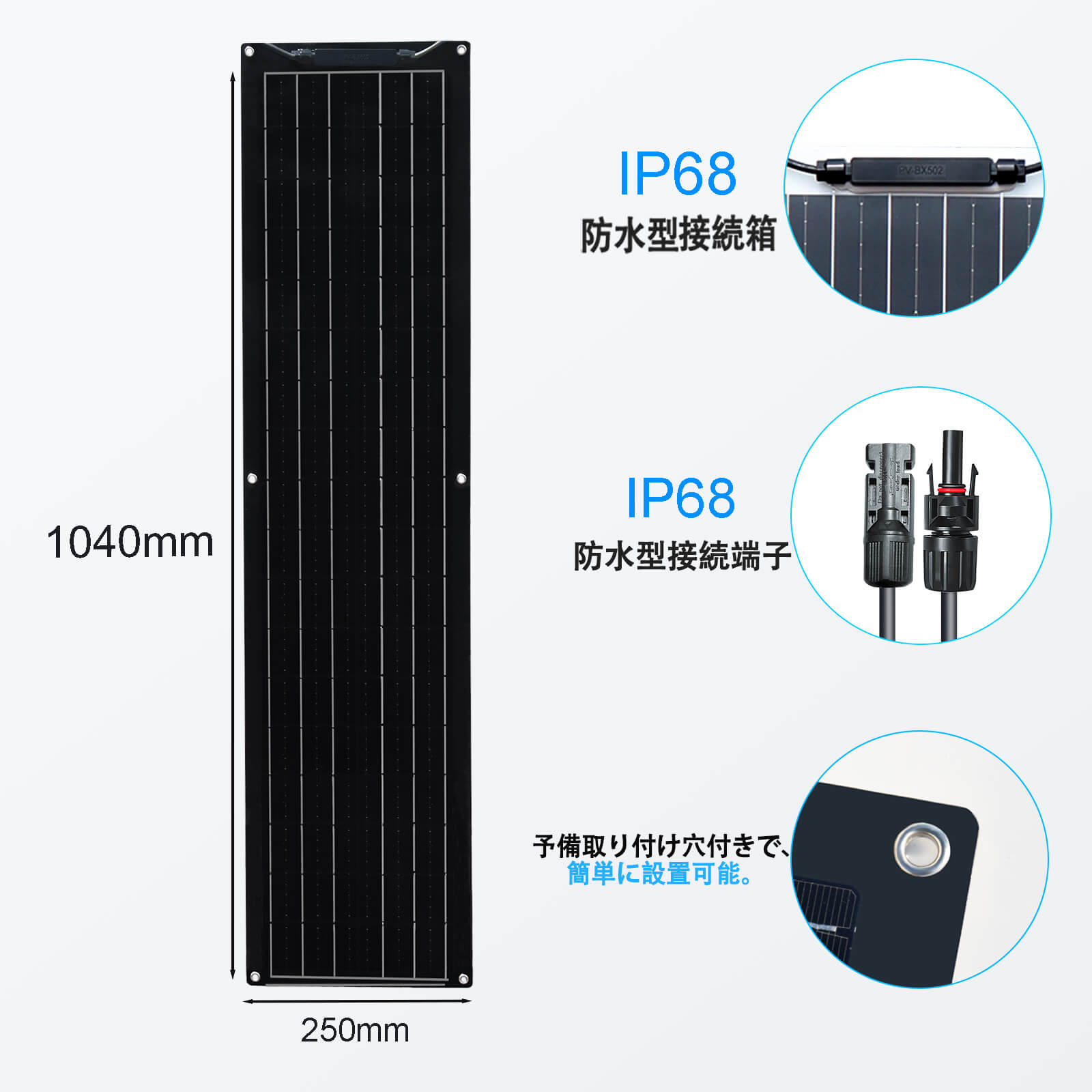

Size 1060*277*3 mm
Color Black
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

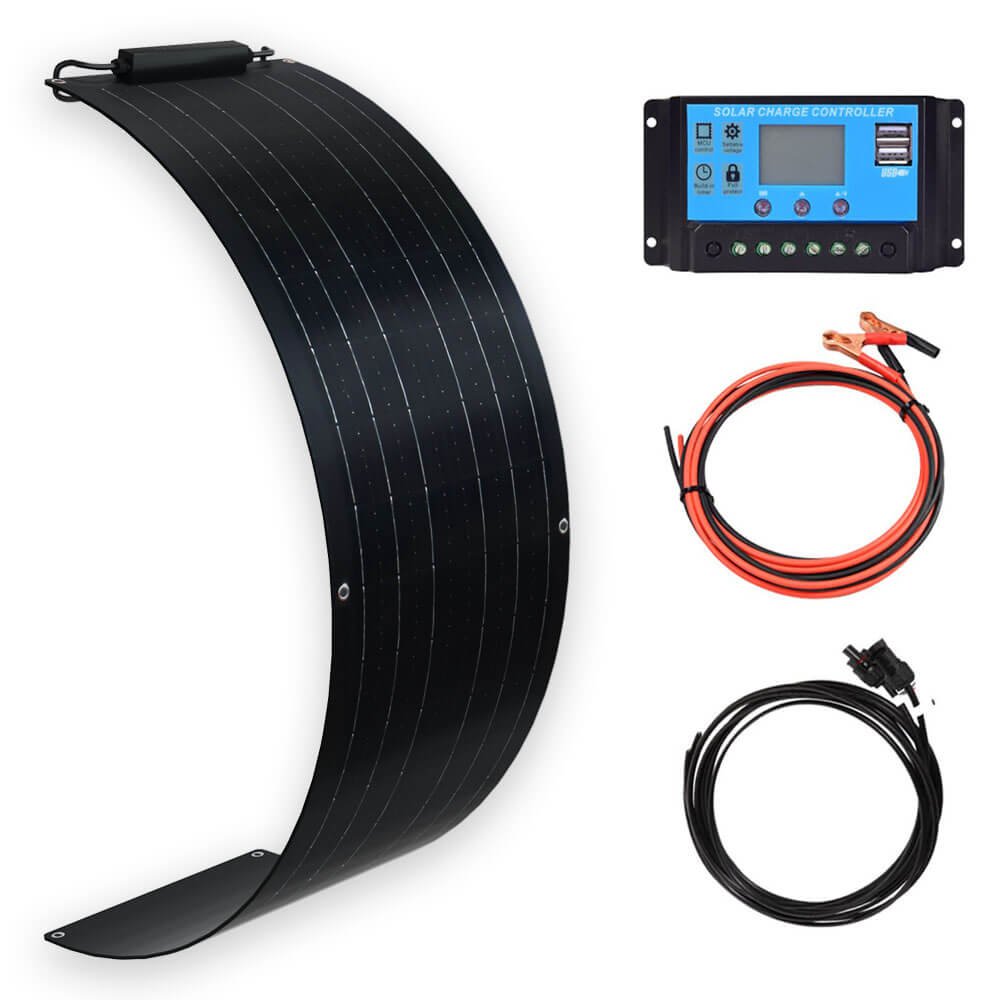

Package list :
1、 1*50w solar panels
2、 1 set 3m cable with PV connector
3、 1 set 3m cable with Alligator clip

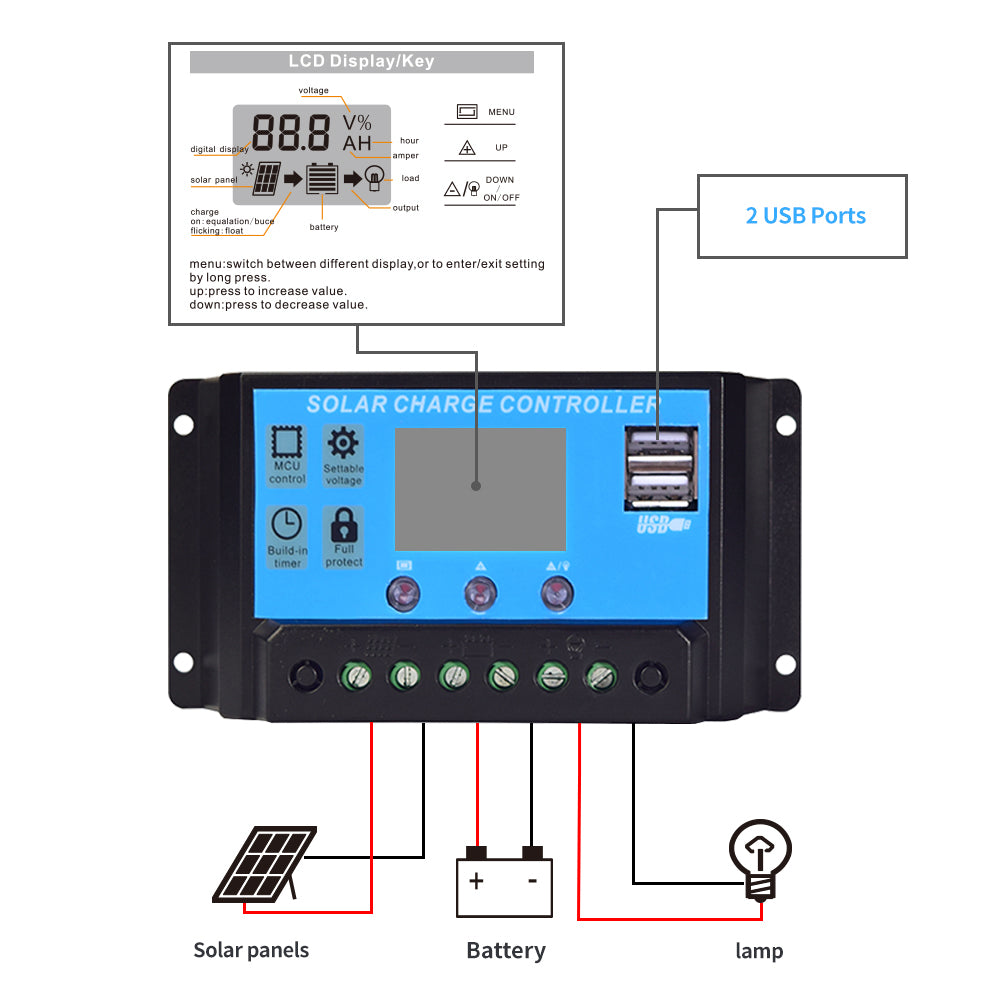

4、 1*10A Controller

1. Select high-efficiency monocrystalline silicon solar cells, the power generation efficiency is about 1.2 times that of conventional polysilicon, and the overall area is smaller at the same power.
2. Using the latest component packaging technology, thinner, lighter, softer, and longer life.
3. The surface is made of PET and treated with a special process, which is more wear-resistant and improves the absorption efficiency of sunlight.
4. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.
5. The junction box adopts an IP67 waterproof design, contains a bypass diode, and the circuit adopts overcharge and reverses the current protection design.
6. Use photovoltaic special cable and MC4 connector, outdoor use is safe, waterproof, high-temperature resistance, and weather resistance. MC4 connector is easy to use, plug and play.
7. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights, and solar power stations.

1. Please install the solar panel system on cloudy days. If installing in strong light, pay attention to protection against electric shock.

2. Normally red color is the positive electrode and black color is the negative electrode. The positive and negative electrodes must be installed correctly. Do not directly connect the positive and negative poles of the solar panel to avoid a short circuit.

3. Do not scratch or step on the solar panel during installation and use. Check in advance whether the controller, battery, inverter, and other accessories are normal.

4. First connect the battery to the controller to activate the controller. There is no display if only the solar panel is connected to the controller.
