Xinpuguang 500W 12V Flexible Solar Panel kit

$643.90 $803.90
ship from:

Maximum power(Pmax) 100W
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.11 A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Temperature range -40℃~+80℃
Maximum system voltage :700V DC
Weight 1.85kg(4 lb)

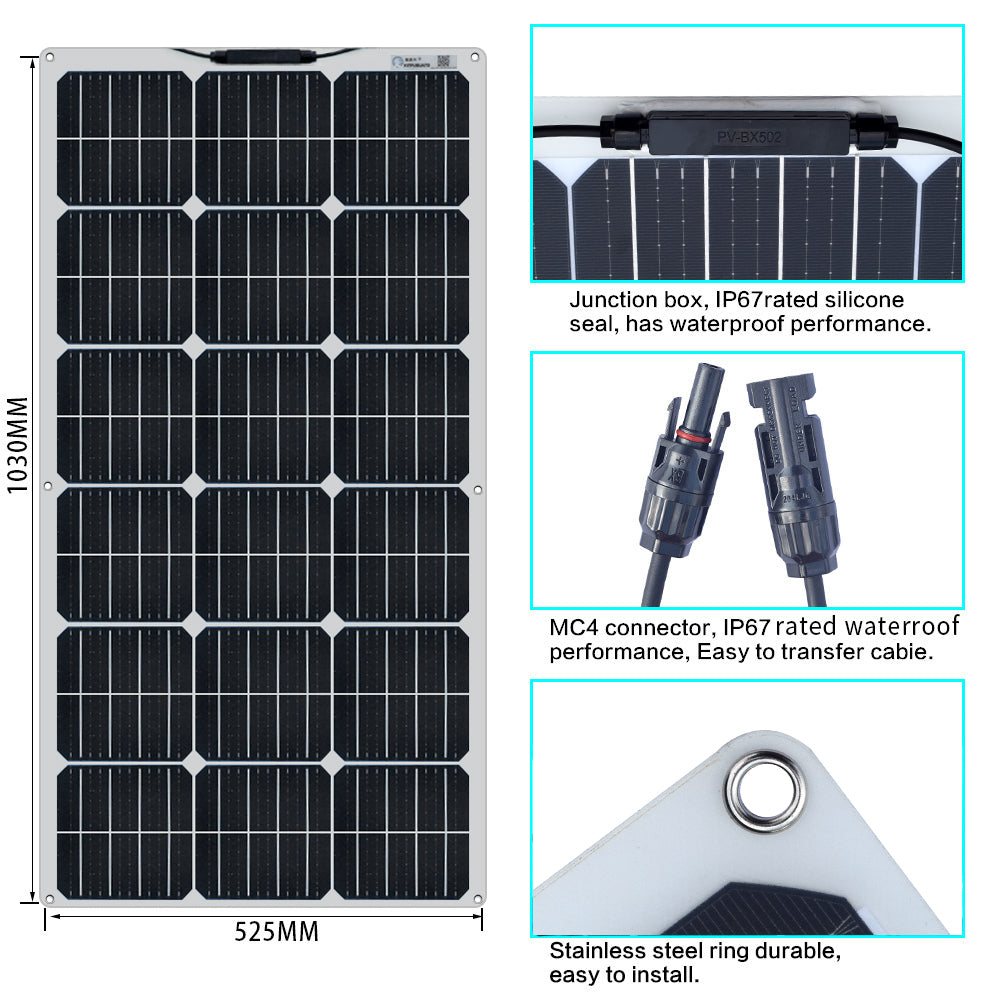

Size 1030X525X3 mm(40.55x20.66x0.11 in)
Standard Test Conditions : lrradiance 1000w/m2,Temperature 25℃,AM=1.5

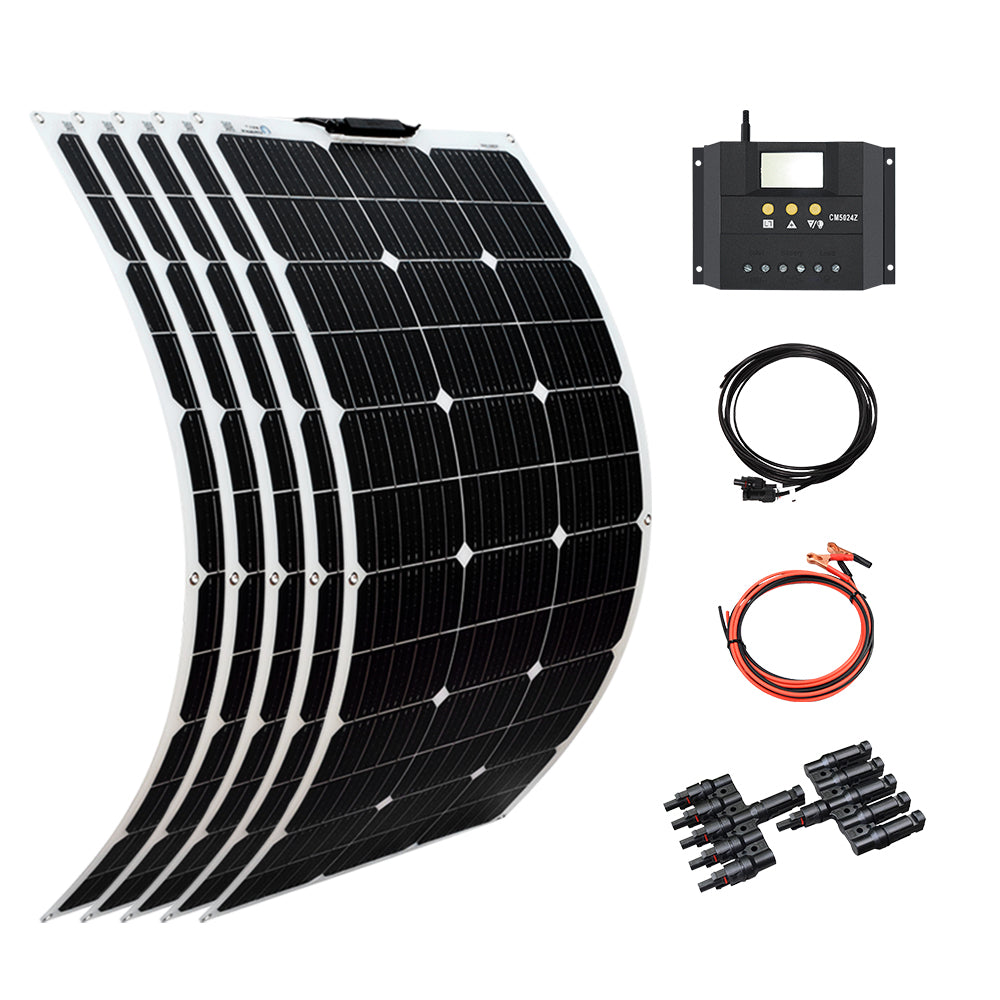

Packing list
1. 5pcs solar panel
2. 50A charger controller
3.1 sets cable with PV connector
4.1 sets cable with Crocodile clip line
5.1 sets 5 in 1 connector

The solar panel kits are delivered separately from different warehouses. If you only receive part of the products, please inform us.

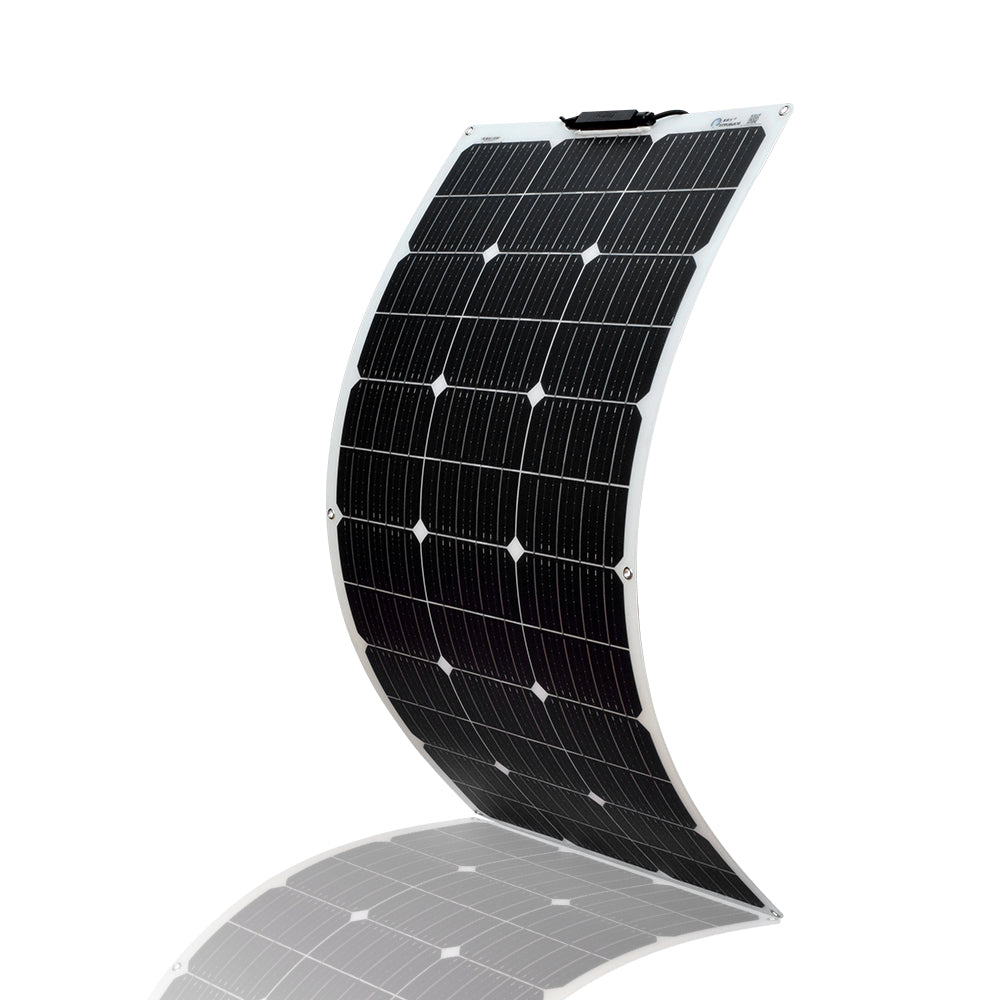

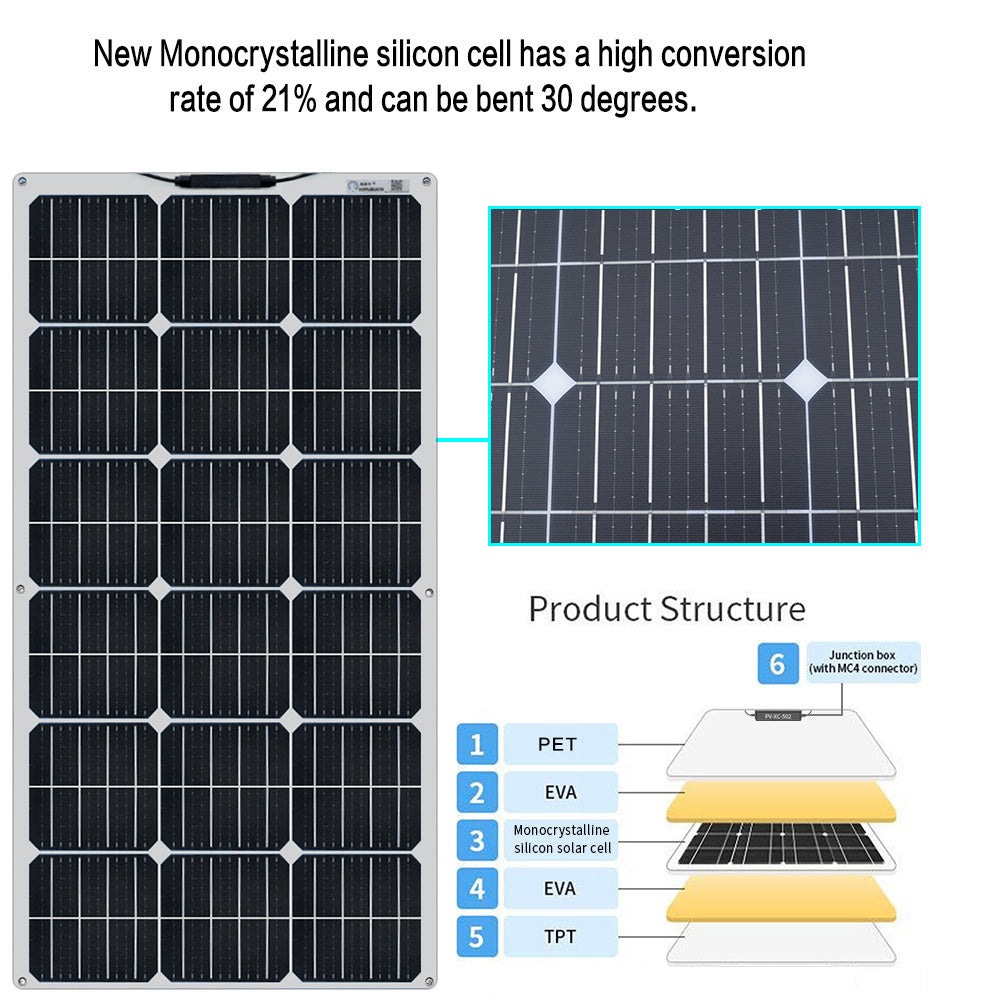

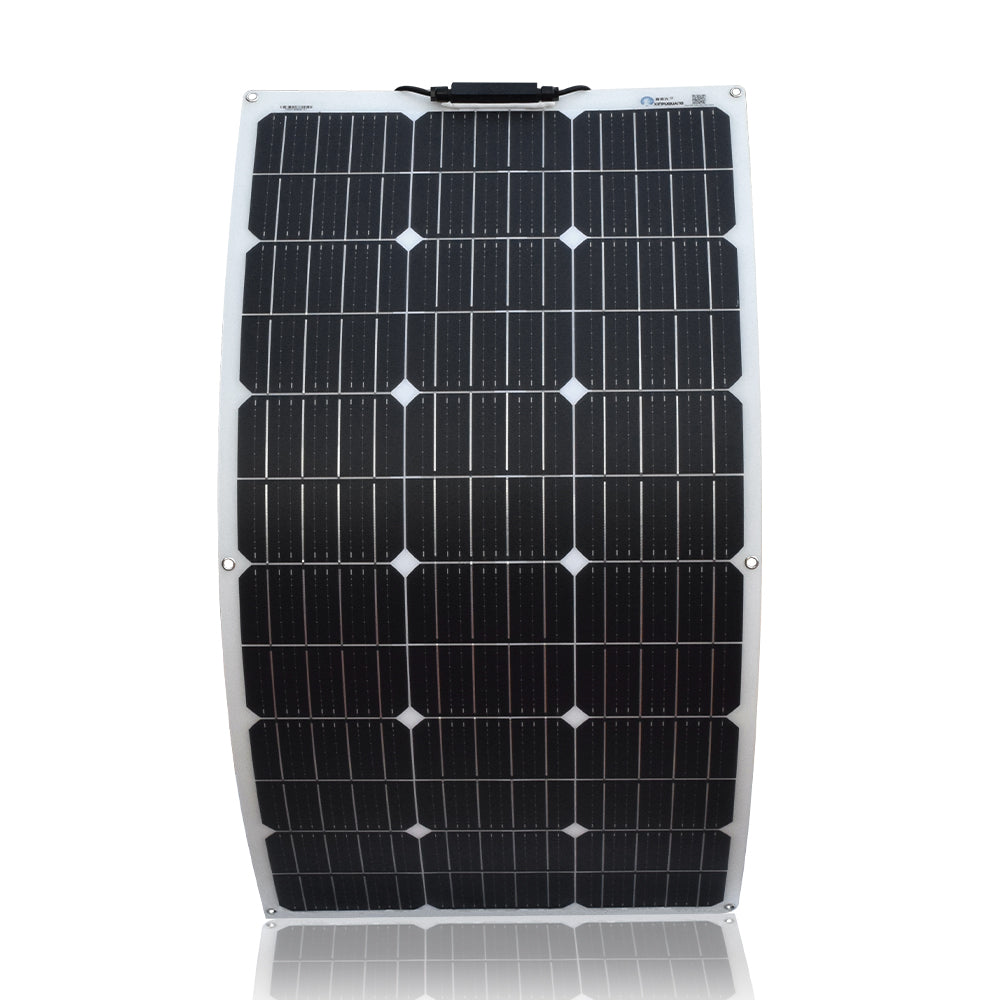

The XINPUGUANG 100Watt flexible solar panel is made of PERC Monocrystalline cells with a conversion rate of 22%. The weight is 1.85kg(4lb), which is 20% of the traditional solar panels.Size is 1030X525X3 mm(40.55x20.66x0.11 in).

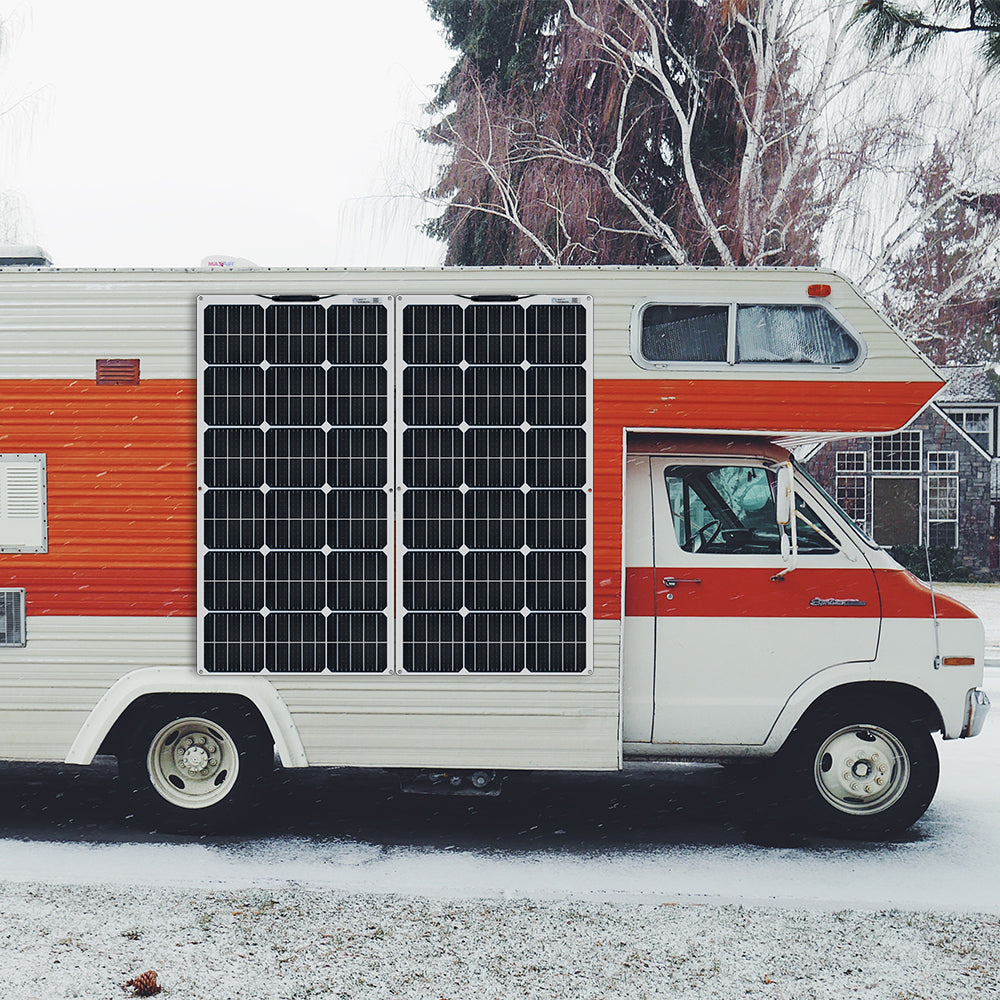

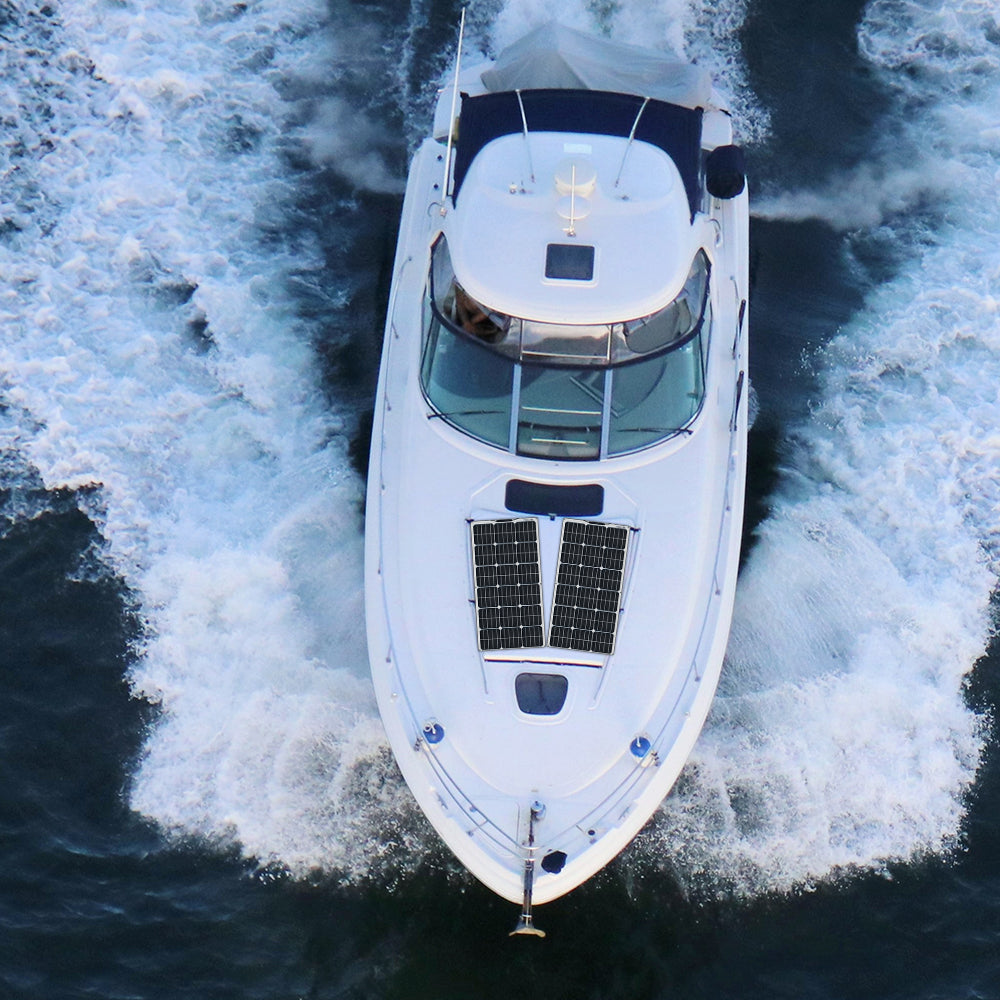

The lightweight nature of flexible solar panels makes solar panels more effective for use in RVs, caravans,boats, tents, trailers, cabins, etc. Portable, easy to install, plug and play.

About this item

*High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 22% conversion rate, 100w solar panels are smaller, lighter, and more portable

*Semi-Flexible: The plastic back sheet can be curved to a maximum 30-degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers, or any other irregular surface.

*Thin & Lightweight:100W solar panel weighs approximately 4lb, Thickness is 0.1in, weighs 70% less than conventional solar panels, making transportation and installation a breeze.

*Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas

*The kit will be sent in a separate box. Don't worry if you only receive one package, because they are sent separately. Shipping from the US.

1. The solar system kit connection is divided into parallel connections or serial connections. The controller must first connect the battery and then connect the solar panels.

2. When the solar panels are connected in series or in parallel, paid to the highest PV input voltage of the controller. The voltage connected in parallel to the controller after the series connection cannot exceed the maximum input voltage of the controller.

3. The total input power of the solar panel can't be greater than the rated power of the controller, otherwise, there is a risk of burning the controller.

4. When the cable is connected to each component, the connection should be stable and there should be no looseness.

5. The positive and negative poles of the controller and battery should be checked clearly. Do not reverse the positive and negative poles.

6. When the power rating of one controller is insufficient to meet all solar panels, multiple controllers can be simultaneously connected to the battery.

We can provide free shipping for most of the products, for the EU and North America. However, some remote zip codes may require additional remote fees (especially remote islands). After the order is shipped, you will receive a shipping notification email with a tracking number and other information. You can check the status of the package through various official websites such as UPS, FedEx, DHL, USPS, Canada Post, DPD, etc. You can also query through our website, the query path is "support" --- "order tracking". Enter the tracking number to query.
