100W Solar Panel
Maximum power voltage：19.8V
Maximum power current：5.05A
Open circuit voltage：21.78V
Short circuit current：6.06A

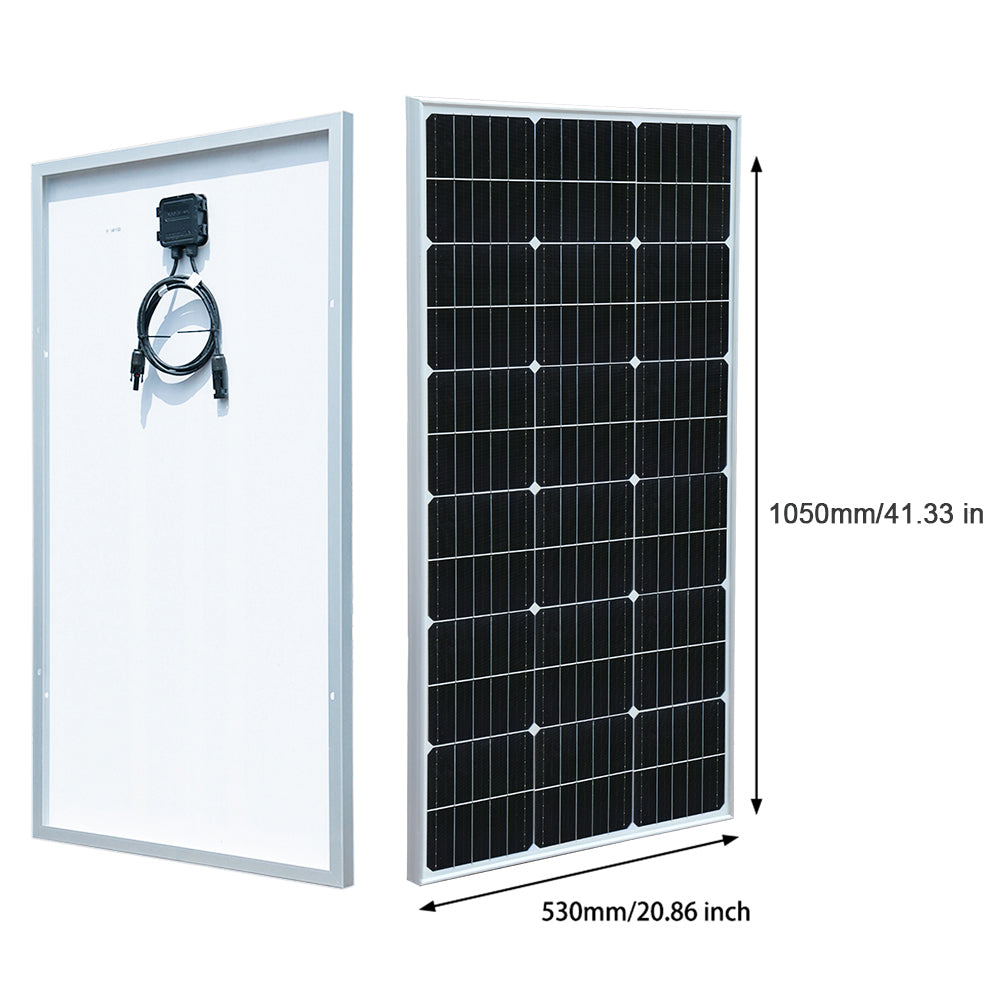

Size of module：41.33x20.86x0.98 in (1050X530X250mm)
Temperature Range：-20- +80 ℃
Weight per piece： 11lb(5kg)
Length of Cables： 2.95FT（90cm）
Standard Test Conditions：AM1.5 100mw/cm2 25 ℃
Battery Voltage：12V/24V/36V/48V Auto
Max PV Open Circuit Voltage：100V
Loop Voltage Drop：≤0.3V
USB Output：5V/2A *2
Temperature Compensation：-4mV/℃/2V (25℃）
Operating Temperature ：-20℃~+50℃
Mounting Hole Size：190*104mm-Φ5mm
Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);

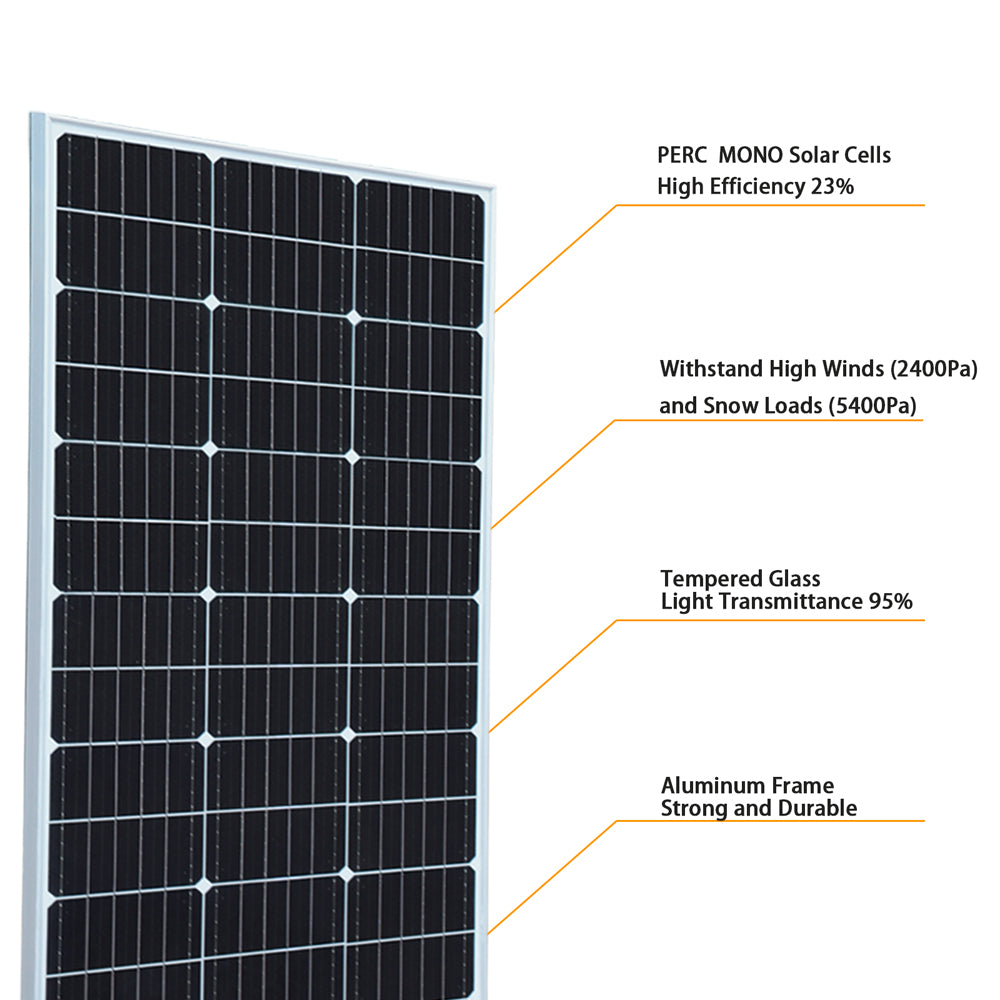

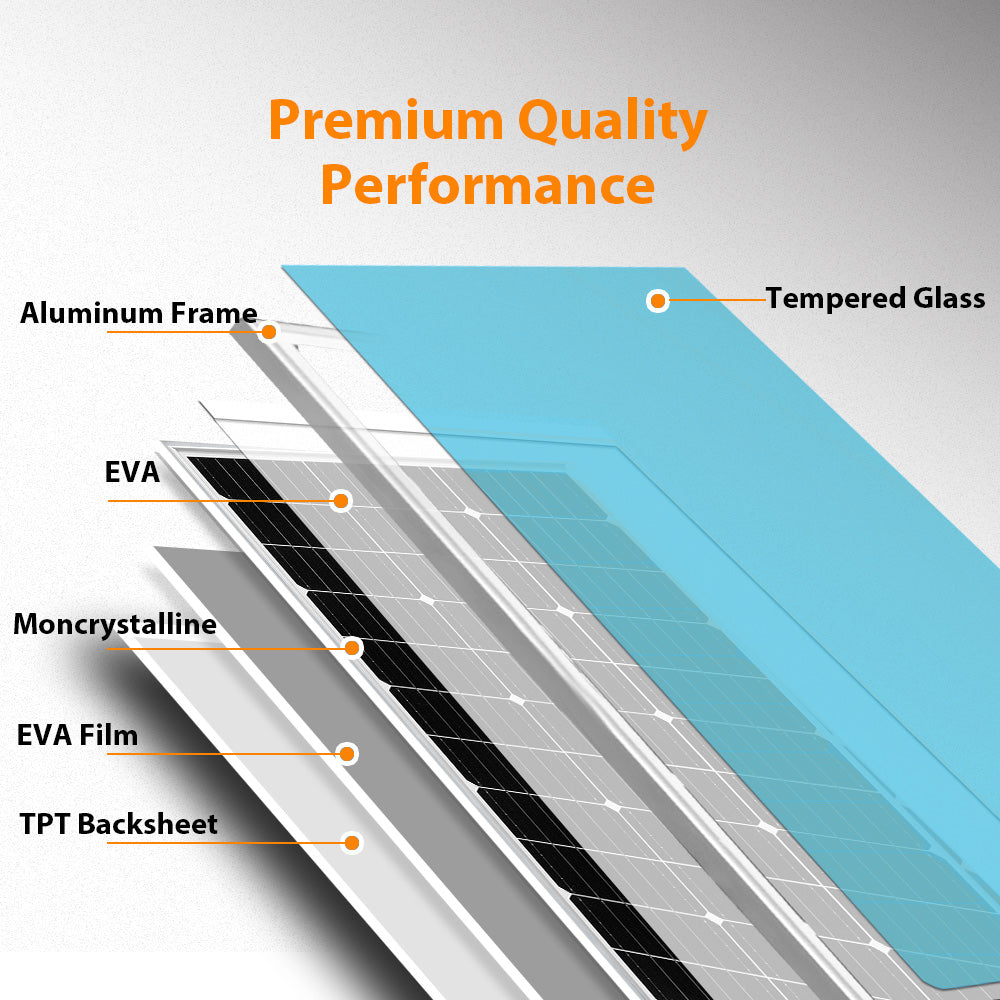

The solar panels are made of A+ PERC monocrystalline silicon cells with a conversion rate of 23%. Each solar panel can produce 600-750W of energy (depending on the intensity of light).
Robust and durable：Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .

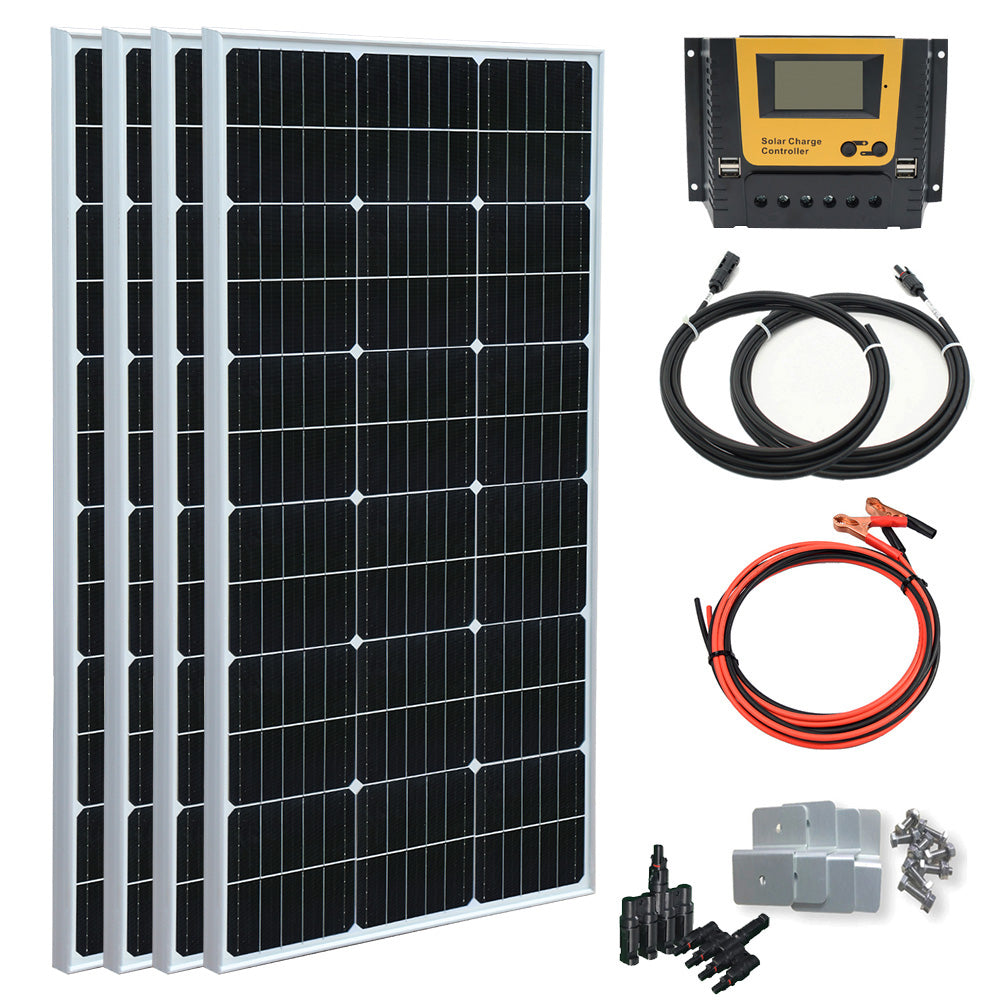

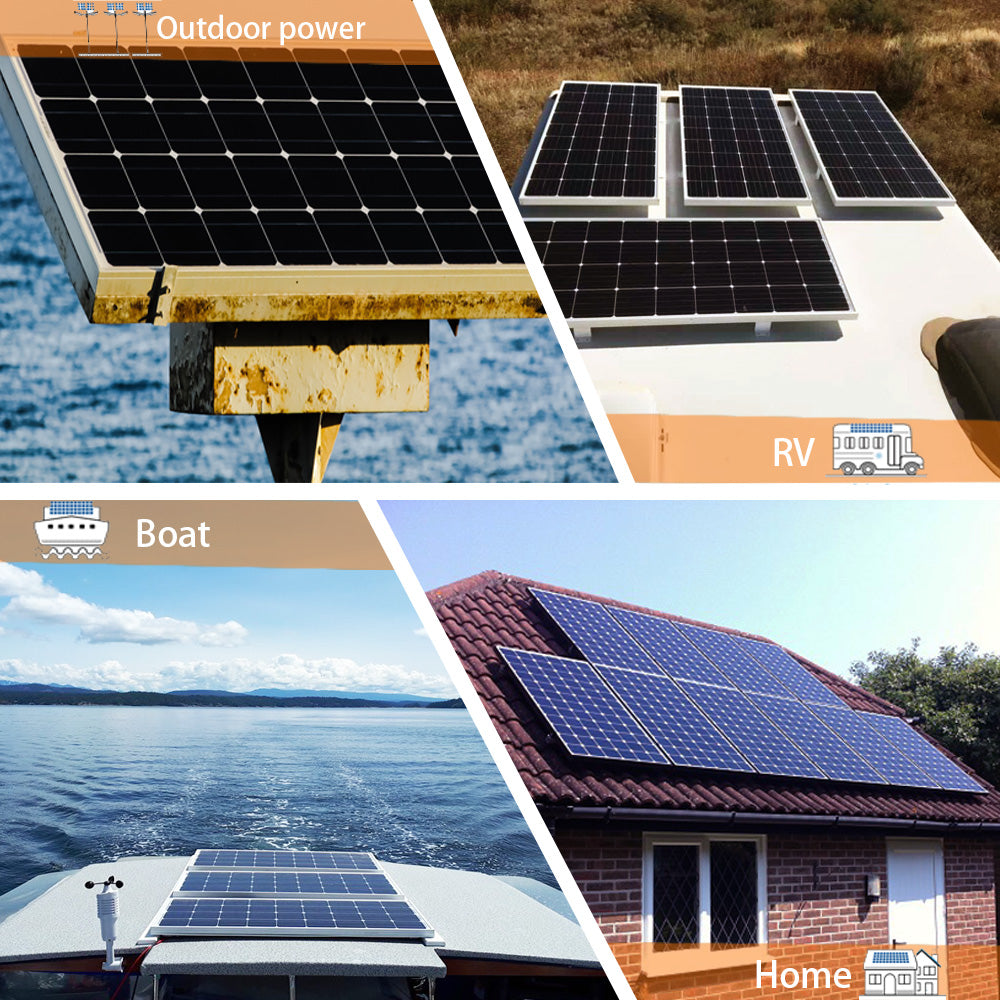

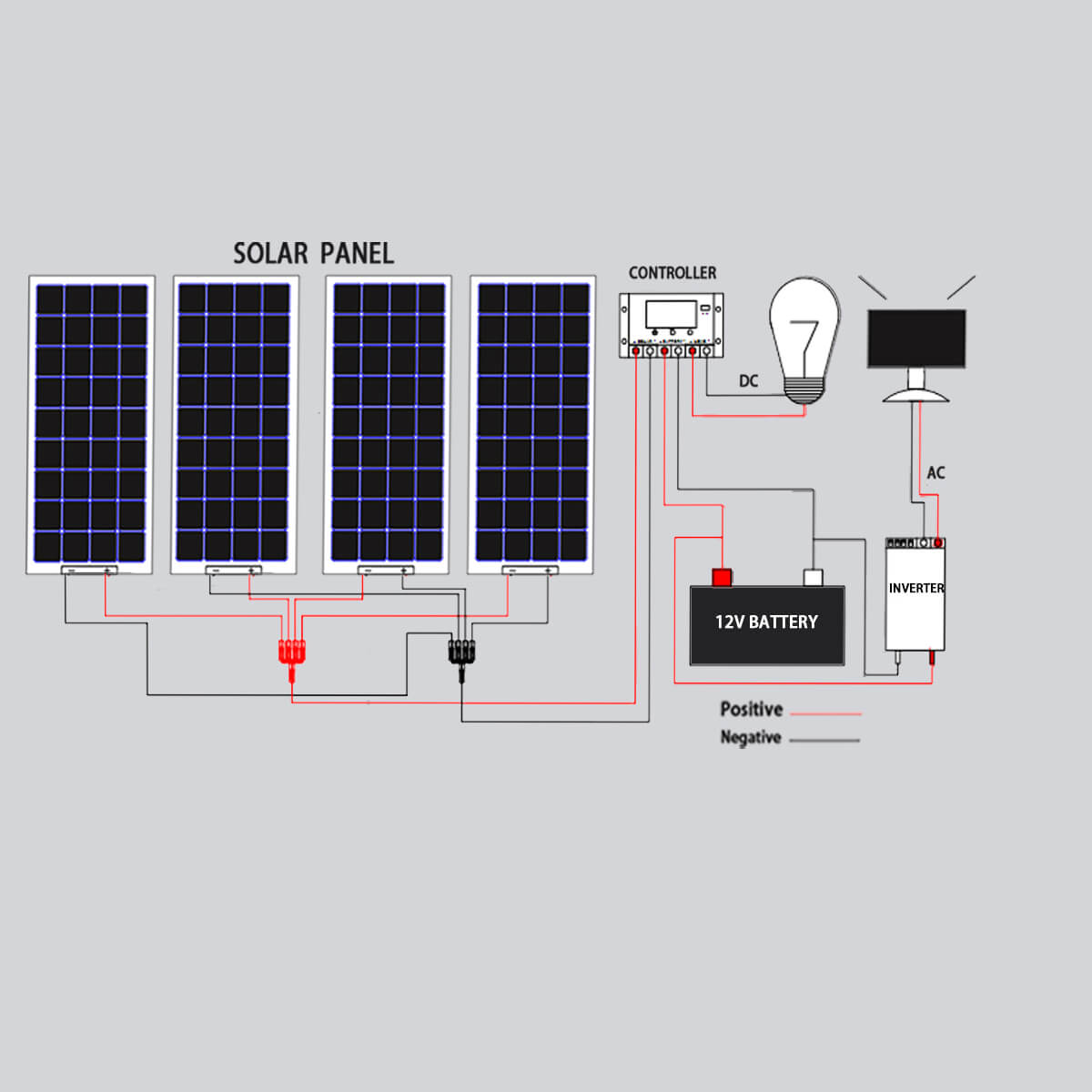

Multiple applications: Solar kit with 12V battery off-grid, perfect solution for power supply. Such as street lights, indicators, door openers, etc.. Also can meet the RV, boat, cabin, trailer, farm, home, etc. lack of power, power failure problems.

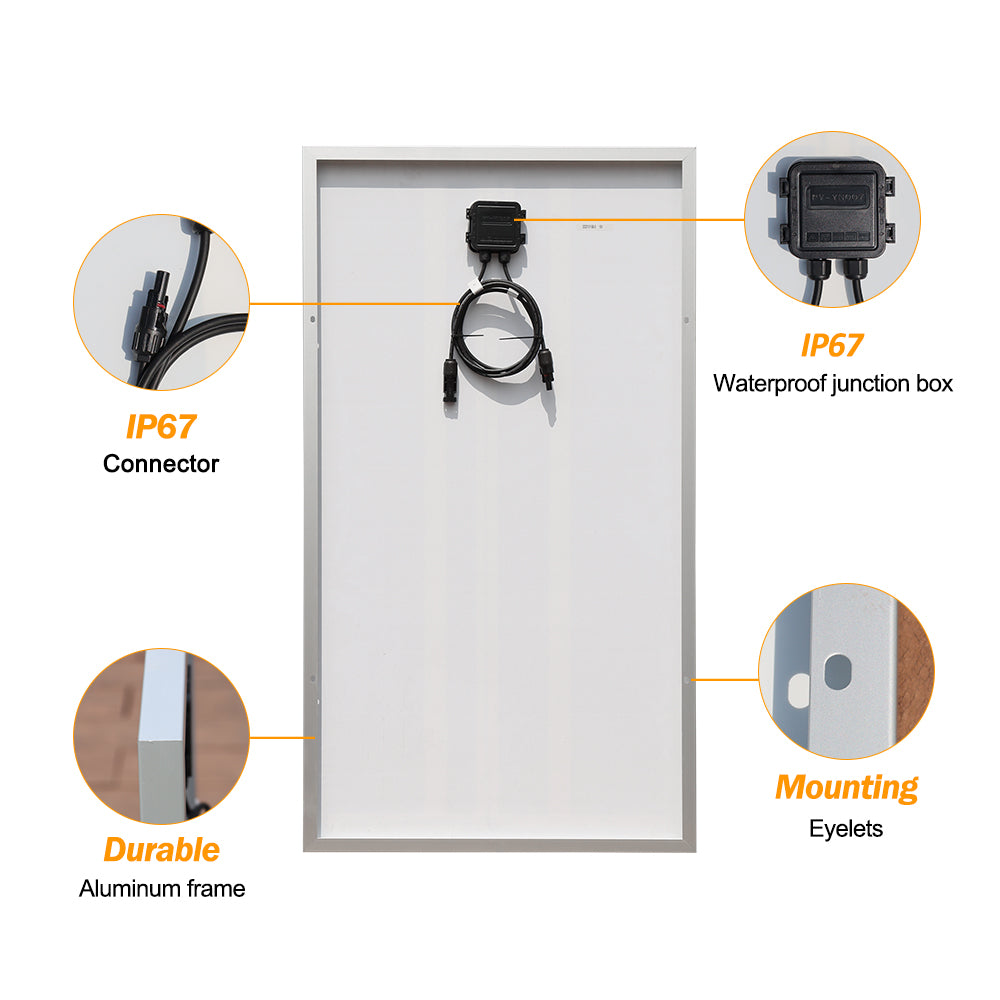

About installation: The solar panels have pre-drilled holes in the aluminum frame. Z-bracket, adjustable bracket, ABS bracket can be used for installation. The cable is plug and play, easy to install.
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
