Xinpuguang 400W 12V Solar Panel kit

$529.90
ship from:
Quantity:

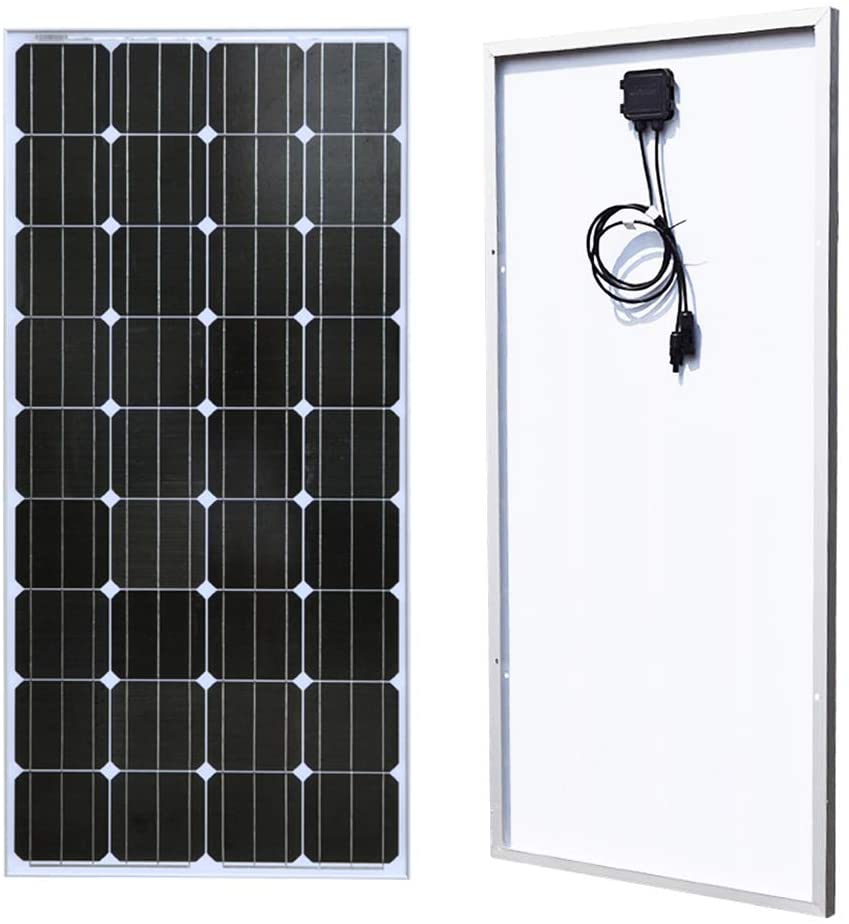

✈ Solar panel
Rated Power: 100 Watt
Operating Voltage(Vmp): 18Voltage
Open circuit voltage(Voc): 21.6 Voltage
Short circuit current (Isc) :6.06 A
Working current (Imp) :5.55A
Output Tolerance: ±3%
Max System Voltage: 1000V DC(IEC)/600V DC (UL)
Diode: 2 By Pass
Junction Box: IP 65 Rated
Temperature range: -40 Degree to 80 Degree

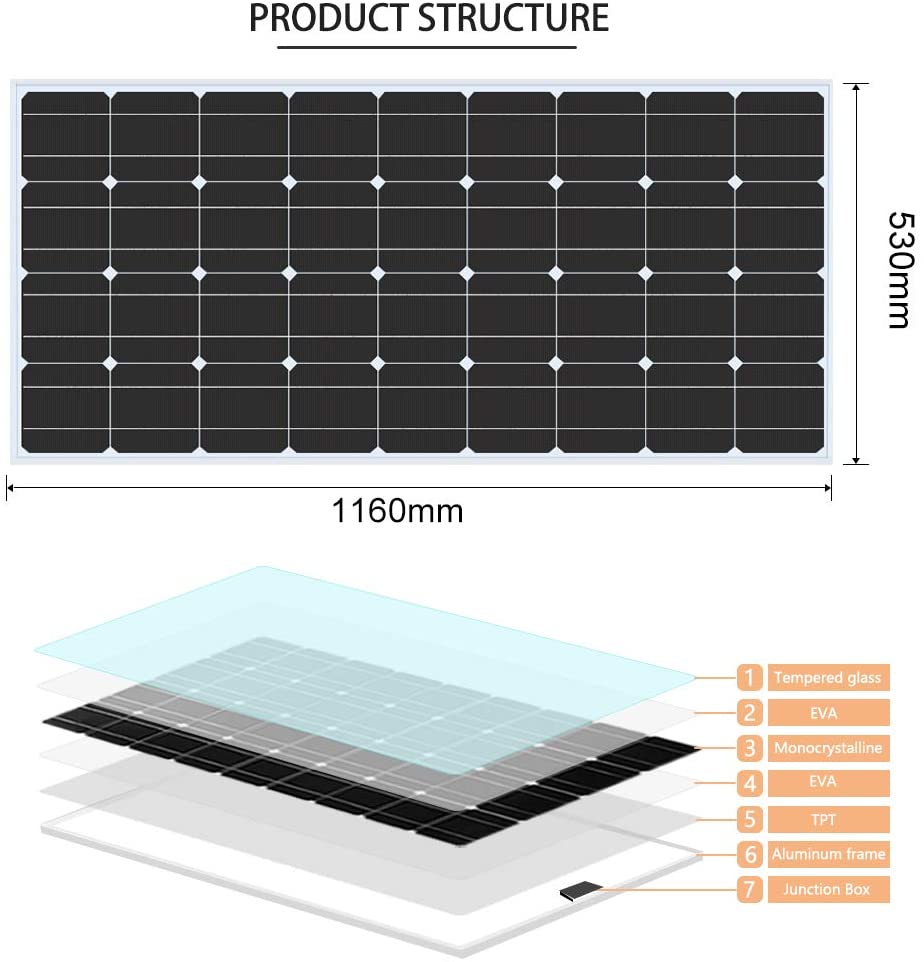

Frame: Heavy And Solid Aluminum Alloy
Kind of Glass: 3.2 MM Tempered glass
Output Cable: 2.5MM 90MM(0.09*3.54Inches)
Dimensions: 1175*530*25MM
Weight: 6.5Kg

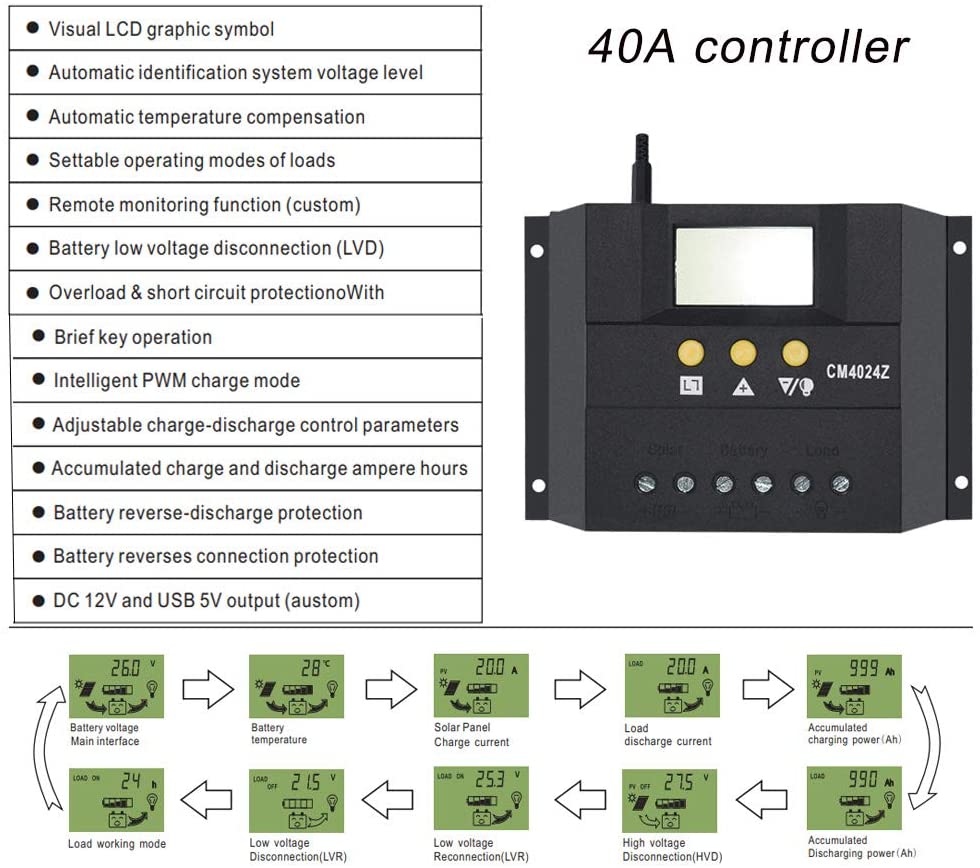

✈ 40A PMW controller
Rated Voltage:12V/24V AUTO
Rated Curent:40A
USB outputvoltage/ument:5V
DC outputvoltage/aument:12V
Voltageof solarpanels:≤50V
Foat charging voltage:13.7V/27.4V
Low voltage protection:10.5V/21V
Low voltage recovery:12.2V/24.4V
No-load loss:s10mA;
Loop voltage drop:s170mV;
Temperature compensation:-4mV/Cell/C
Operating temperature:-20C~+60C
Storage temperature-:30^C~+70C;
Humidity requirements:<90%, no condensation
Installation cable area:>3# AWG (25mm )
Package size:205x105x62mm
Weight:297g

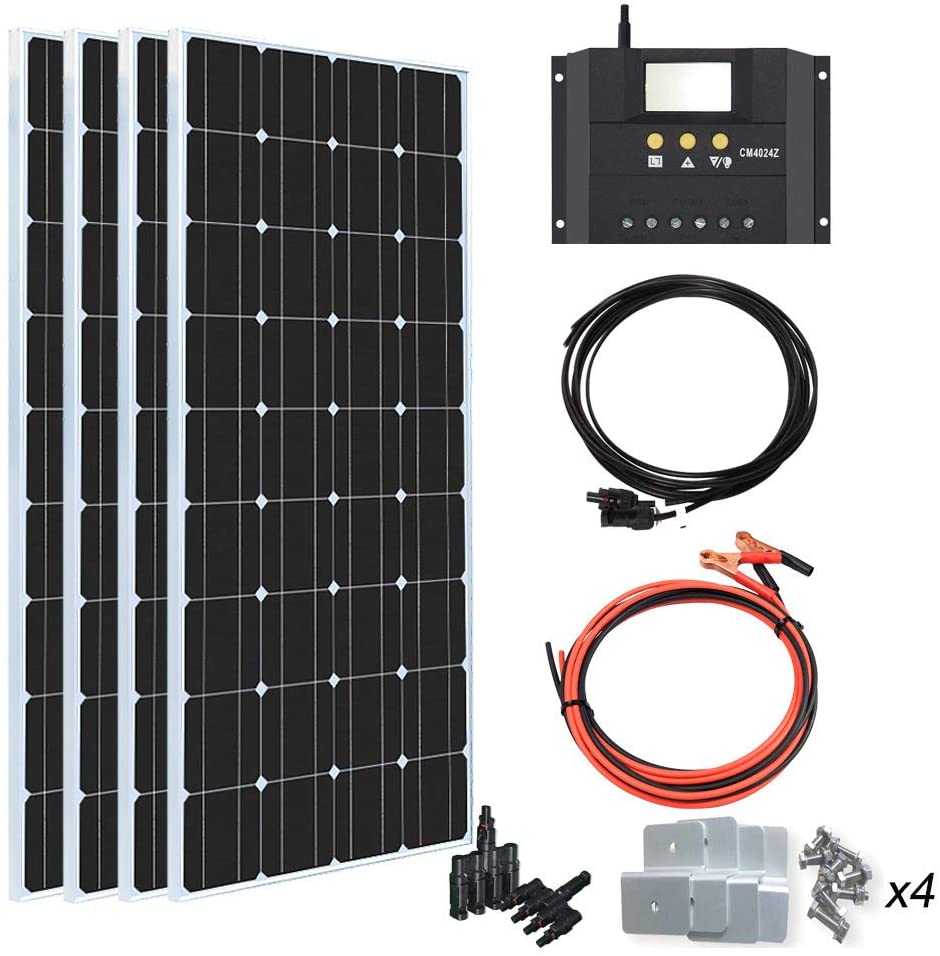

✈ Packing list
1. 4pcs solar panel
2. 40A charger controller
3.1 sets cable with PV connector
4.1 sets cable with Crocodile clip line
5.1 sets 4 in 1 connector
6. 4 sets aluminum mounting bracket

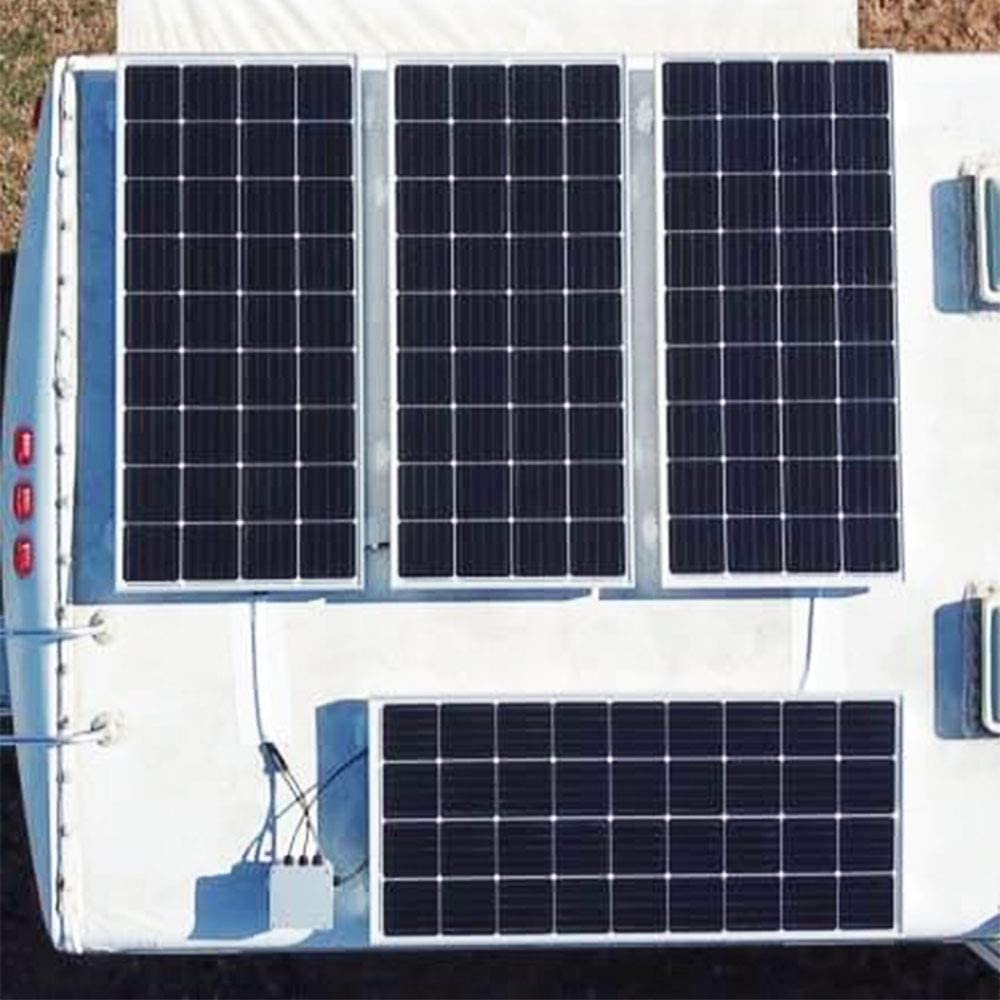

Basic component for on-grid, off-grid solar panel system, RV, boat, Green house solar panel system

Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12AWG cable with a Male/Female quick connector.

By-Pass Diode minimized the impact of shade.

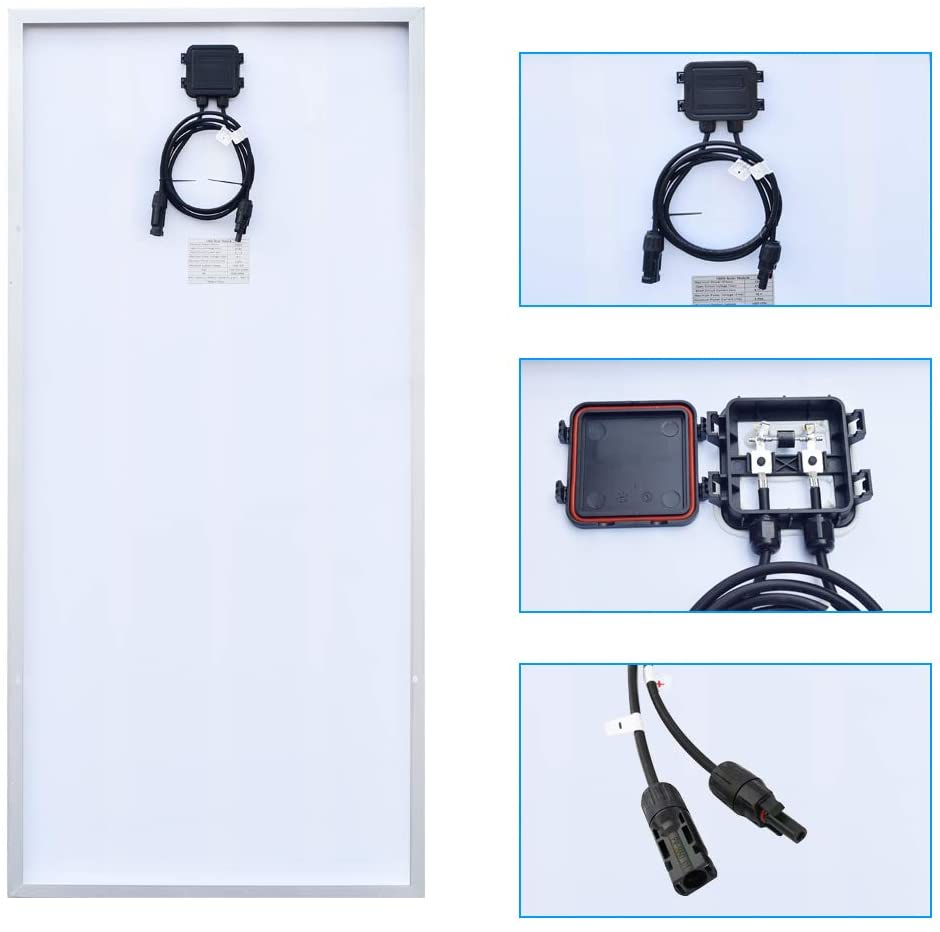

Waterproof IP-65 Rated Junction Box : Advanced water and dustproof level (complete protection against environmental particles and low-pressure water jets).

Resistance to Salt Corrosion and Humidity

Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa)

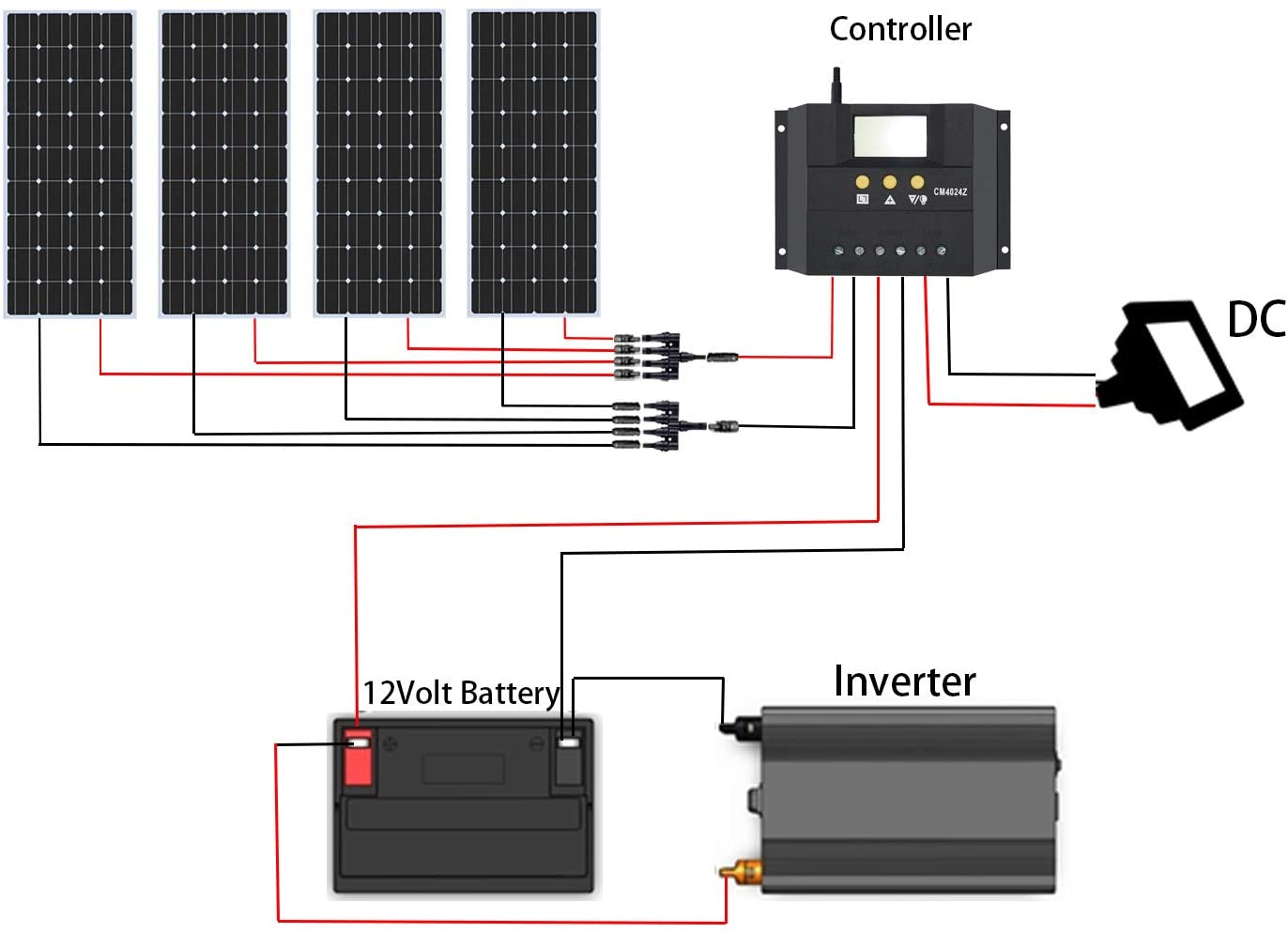

1. Connect the battery to the charge regulator - plus and minus.
2. Connect the photovoltaic module to the regulator - plus and minus.
3. Connect the consumer to the charge regulator - plus and minus. The reverse order applies when deinstalling! An improper sequence order can damage the controller!
