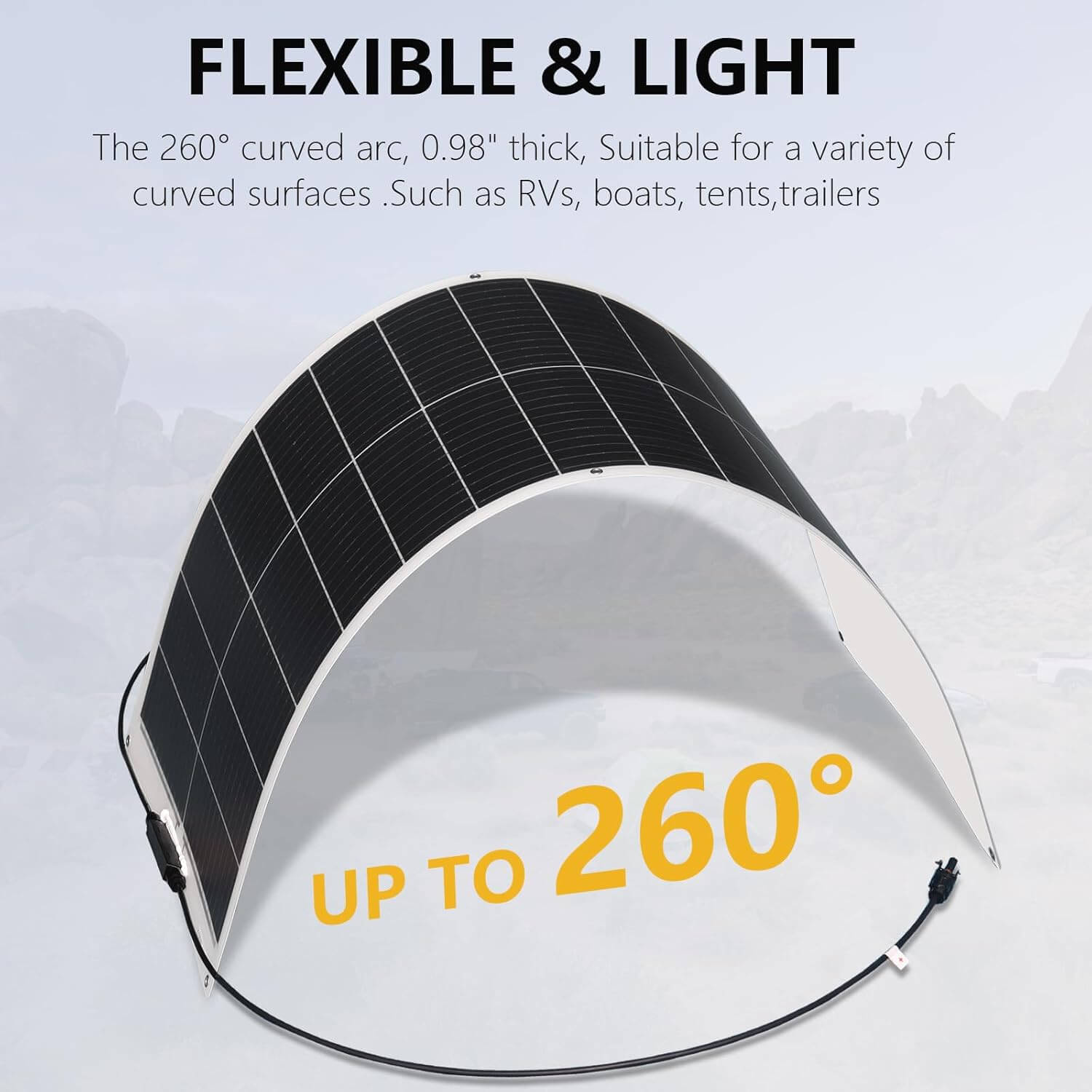

XINPUGUANG flexible solar panel make with high-efficiency Monocrystalline cell ，20% convert efficiency， can be bent 30 degree, can be installed on the curved surface. just 80% lighter than the glass solar panel, 3mm thickness，easy to carry, easy to ship, easy to install. Applied to Golf car, Yacht, Boat, RV，Caravan, Electric car, Travel tourism car, Patrol car, roof, camping, roof power generations, tent, marine ，etc.
✈ Solar Panel
Maximum power(Pmax) 100W
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.6V
Short circuit current(Isc) 6.66A
Maximum power voltage(Vmp) 18V
Maximum power current(Imp) 5.55A
Cell efficiency 19.5%

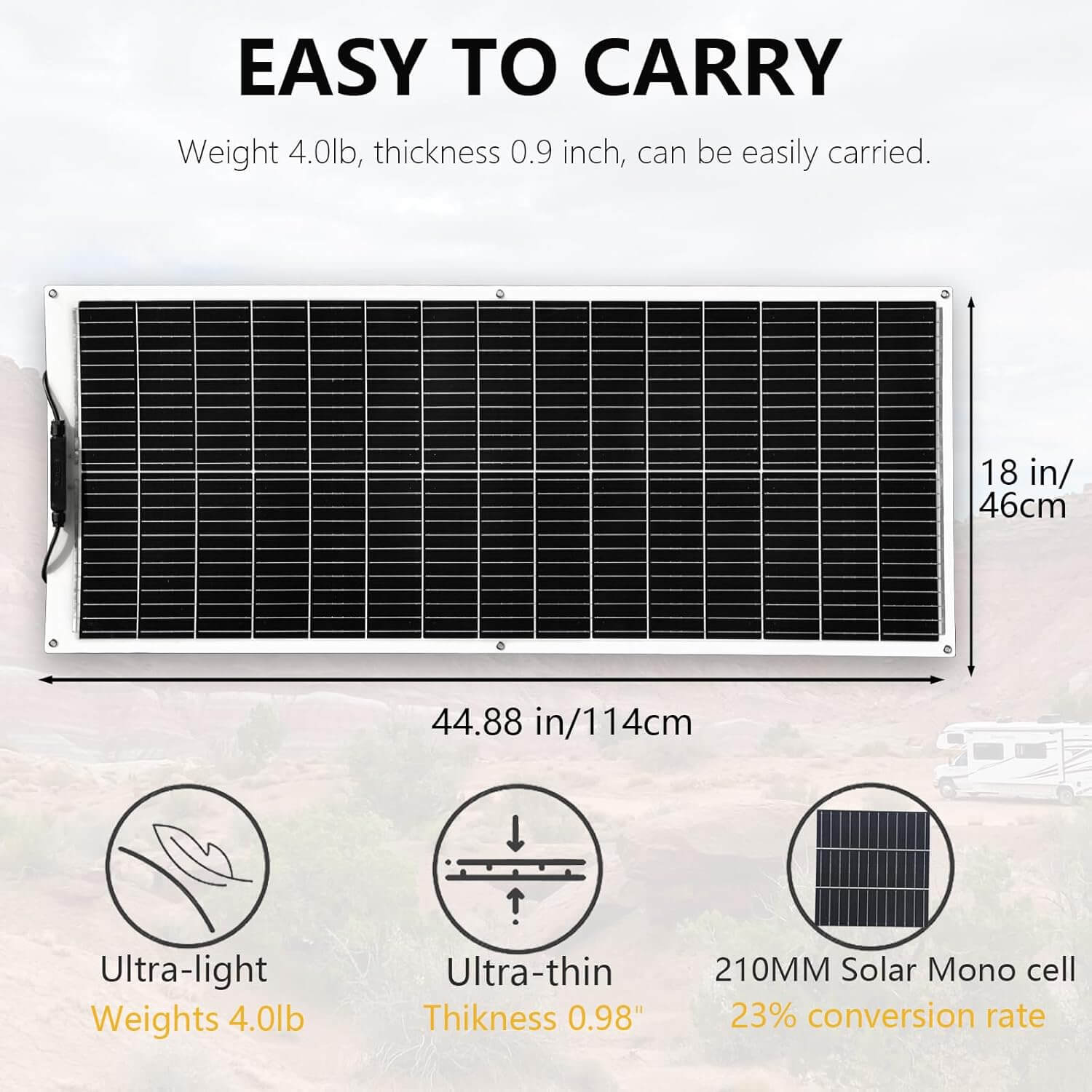

Size 1170**540*3 mm
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.
✈ 20A charge controller
Battery voltage：12V/24V auto
Operating temperature：-35~+60 ℃
suitable for ：lead acid batteries， lithium ions
Build-in short-circuit protection,open-circuit protection,reverse
XINPUGUANG flexible solar panel make with high-efficiency Monocrystalline cell ，19.6% convert efficiency， can be bent 30-40 degrees, can be installed on the curved surface. just 80% lighter than the glass solar panel, 3mm thickness，easy to carry, easy to ship, easy to install. Applied to Golf car, Yacht, Boat, RV，Caravan, Electric car, Travel tourism car, Patrol car, roof, camping, roof power generations, tent, marine, etc.
✈ Packing list
1. 2pcs 100w solar panel
2. 20A 12v/24v charge controller
3. 1 set Extension cable with PV connector
4. 1 set cable with alligator clip （connect to battery）

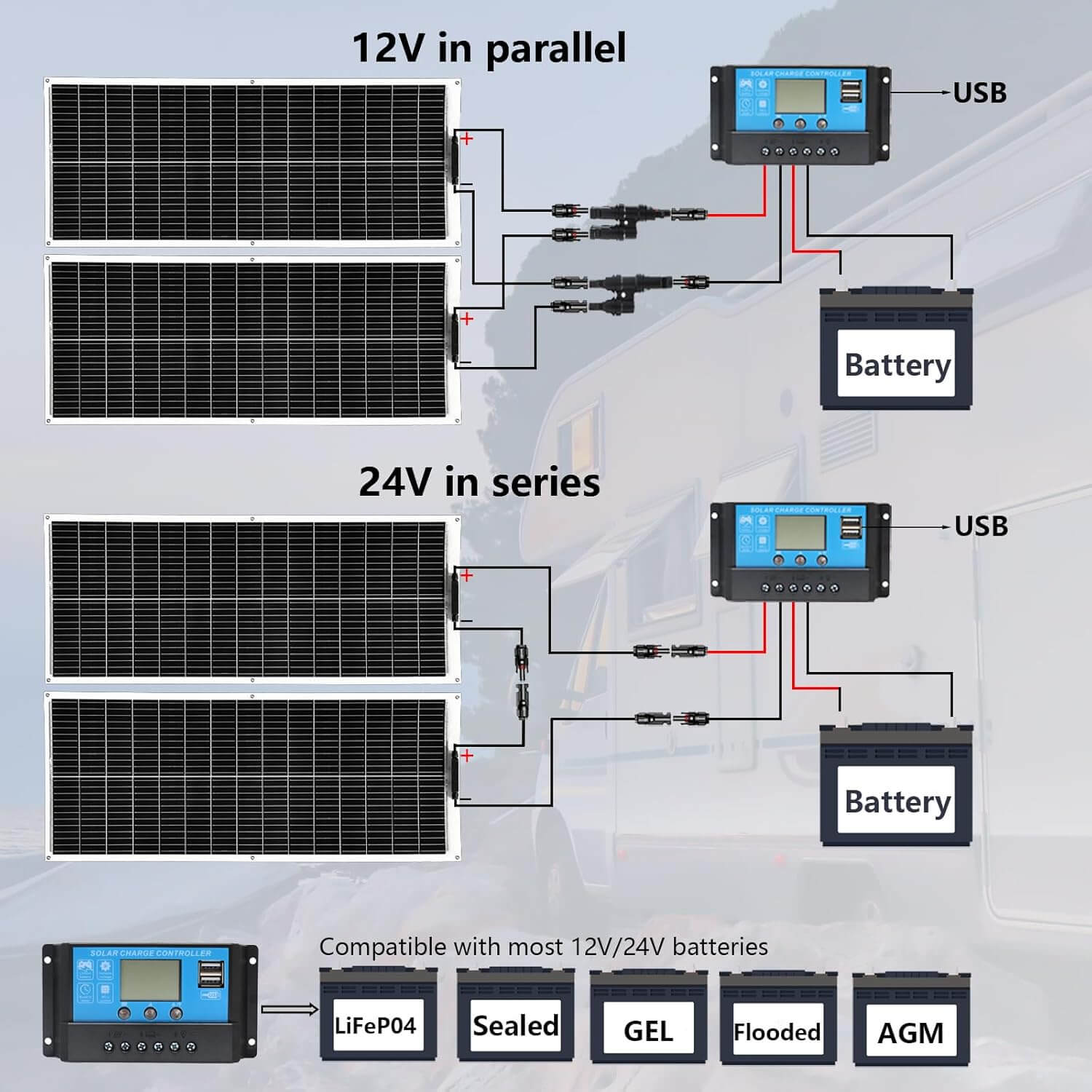

5. 1 set 2 in 1 Parallel connector（in parallel solar panel）
✈[Excellent performance] Using high-quality monocrystalline silicon cells, high-efficiency monocrystalline silicon solar cells provide good performance even in low light conditions

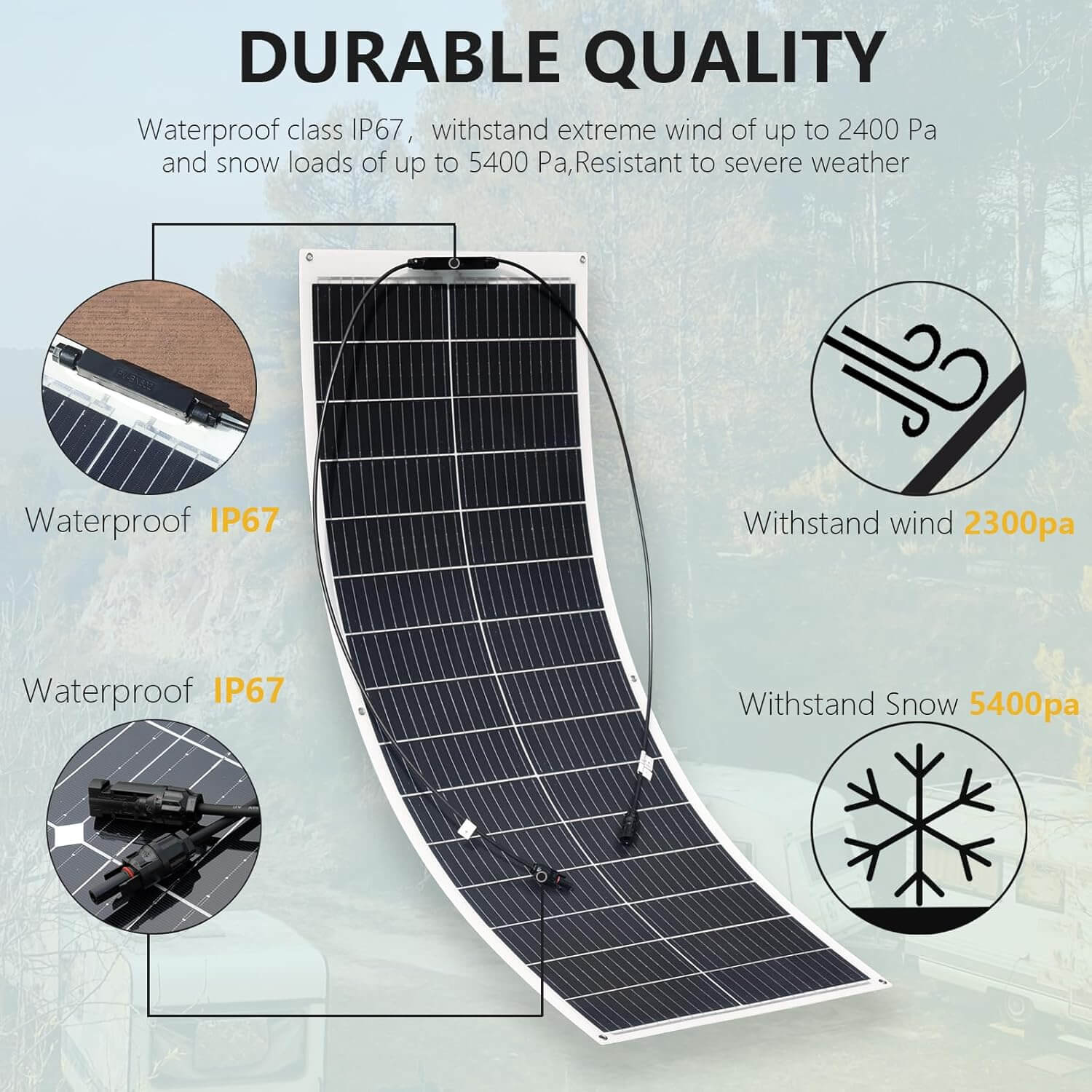

✈[Highly durable] The solar modules can withstand high wind pressure, snow loads, and extreme temperatures.

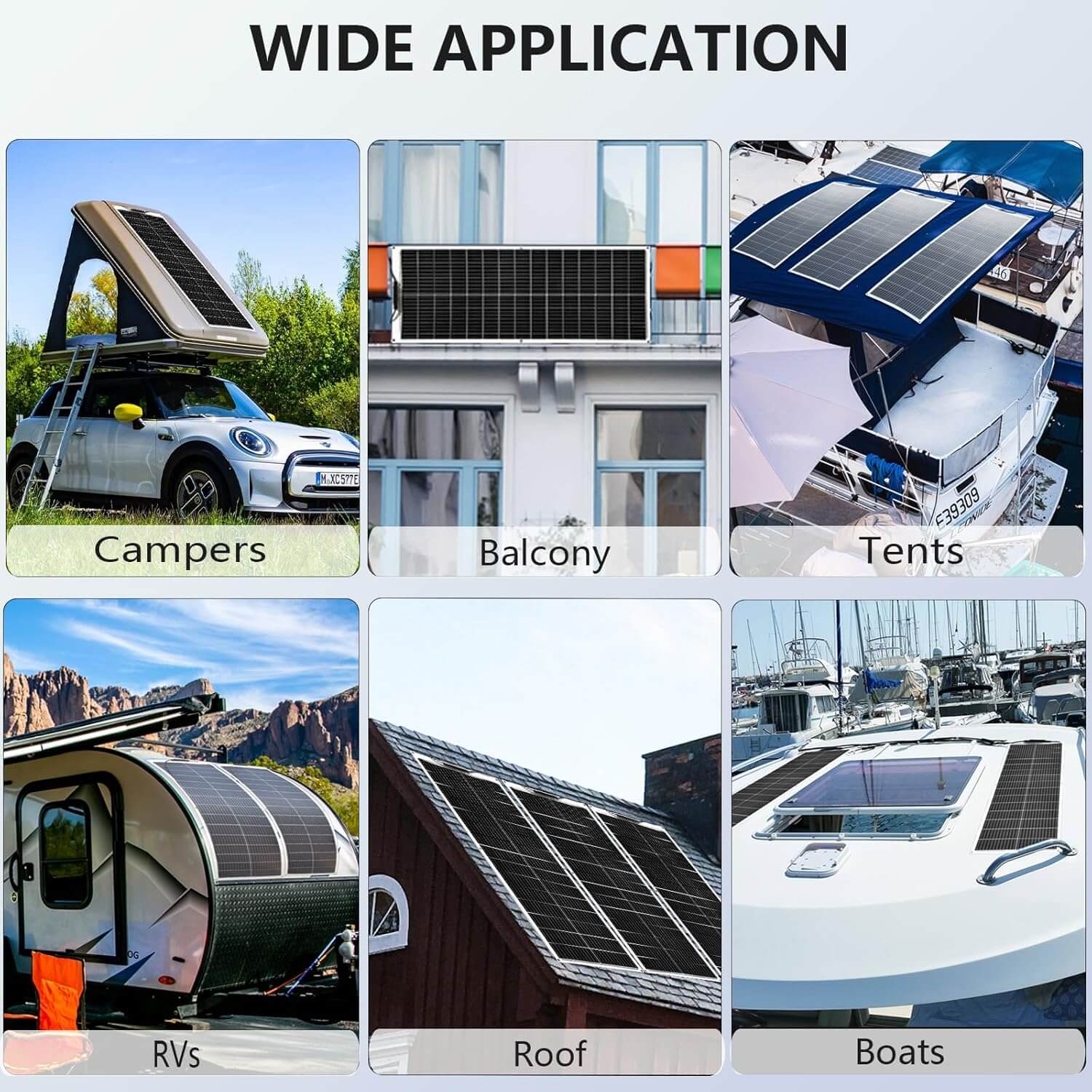

✈[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat, sailboat, yacht, truck, car, coach, cabin, camper, tent, trailer, golf cart, or any other irregular surface.

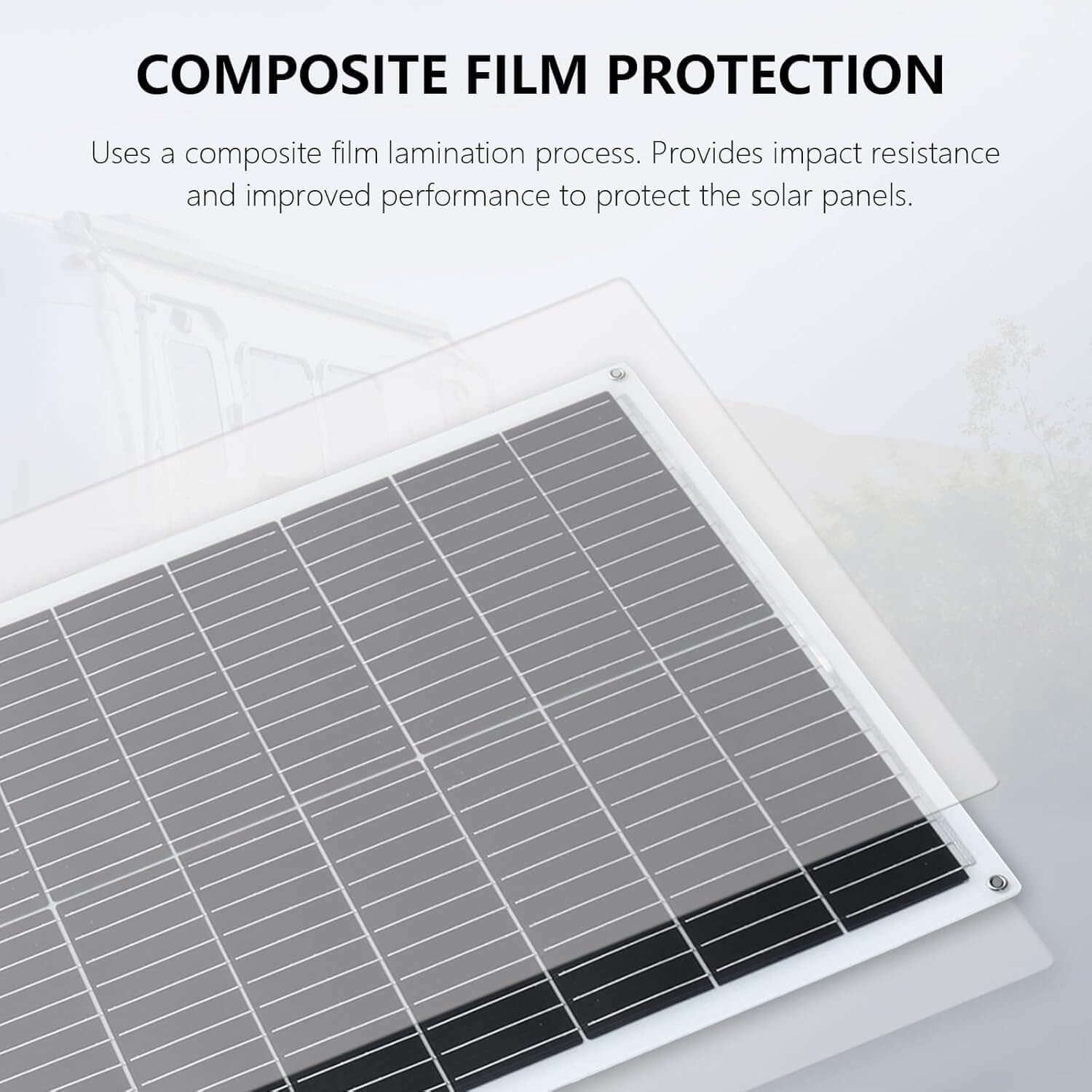

✈[Reliable] Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.
✈[Functional] Solar panels can convert light energy into electricity, which can effectively deal with the difficult problems caused by power shortages and power outages.
