Xinpuguang 150W 12V Solar Panel kit

$199.90
ship from:
Quantity:













✈ Solar Panel
Maximum power(Pmax) :150W
Maximum system voltage :1000V DC
Open circuit voltage(Voc): 21.6V
Short circuit current(Isc): 9.16A
Maximum power voltage(Vmp) :18V
Maximum power current(Imp) :8.33A
Operating temperature(NOCT): 45±2℃
Temperature range: -40℃~+80℃
Size : 1310*660*30 mm
Standard Test Conditions : irradiance 1000w/m^2,Temperature 25℃, AM=1.5

✈ 20A charge controller
Battery voltage:12V/24V auto
Charge current:20A
Discharge current:20A
USB output:5V/2A
Self-consume:<10mA
Operating temperature:-35~+60 ℃
suitable for :lead acid batteries, lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

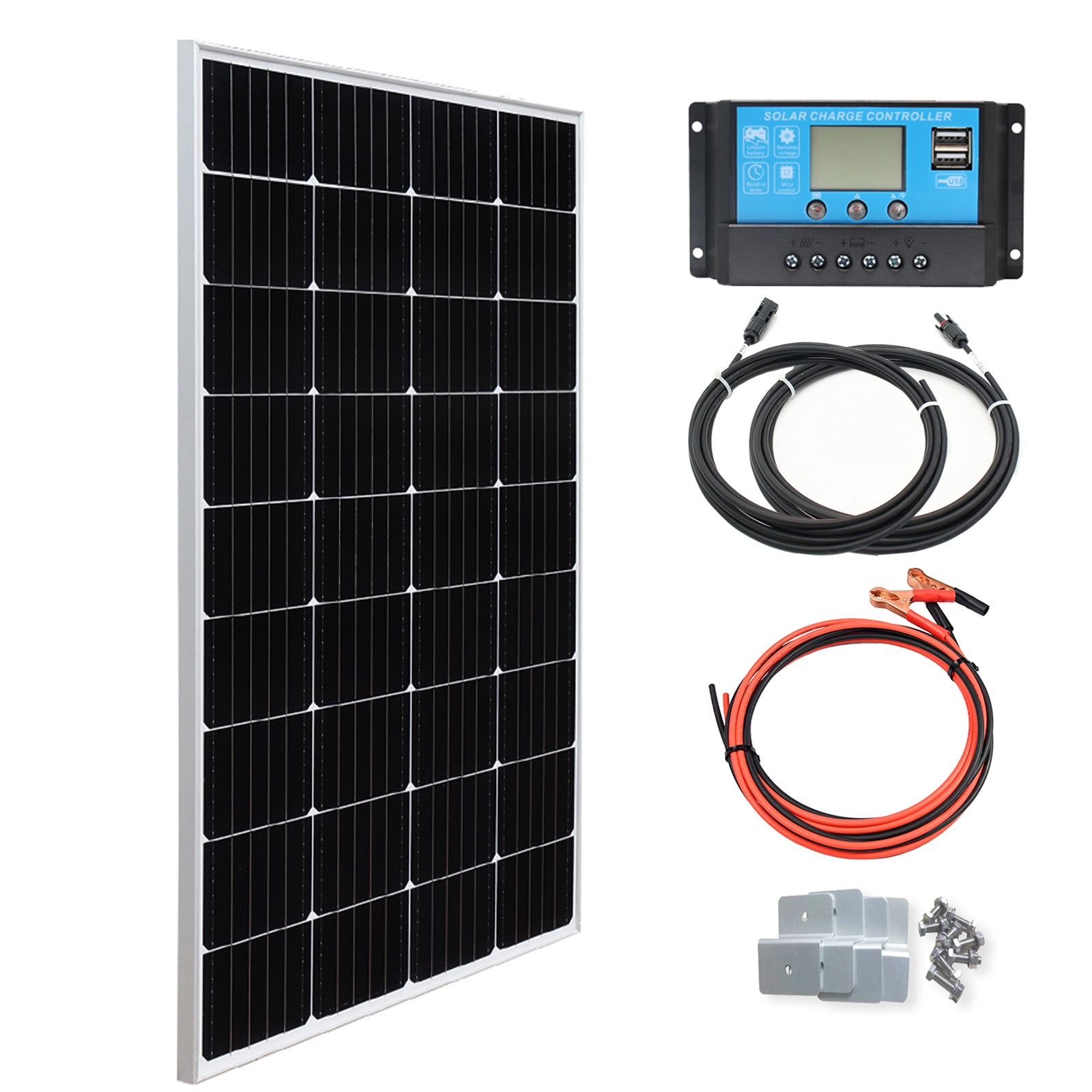

✈ Packing list:
1 * 150w solar panel
1* 20A charge controller
1set Extension cable
1 set Battery connection cable
4 * Mounting brackets

♣ Basic components for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of the panel for fast mounting and securing.

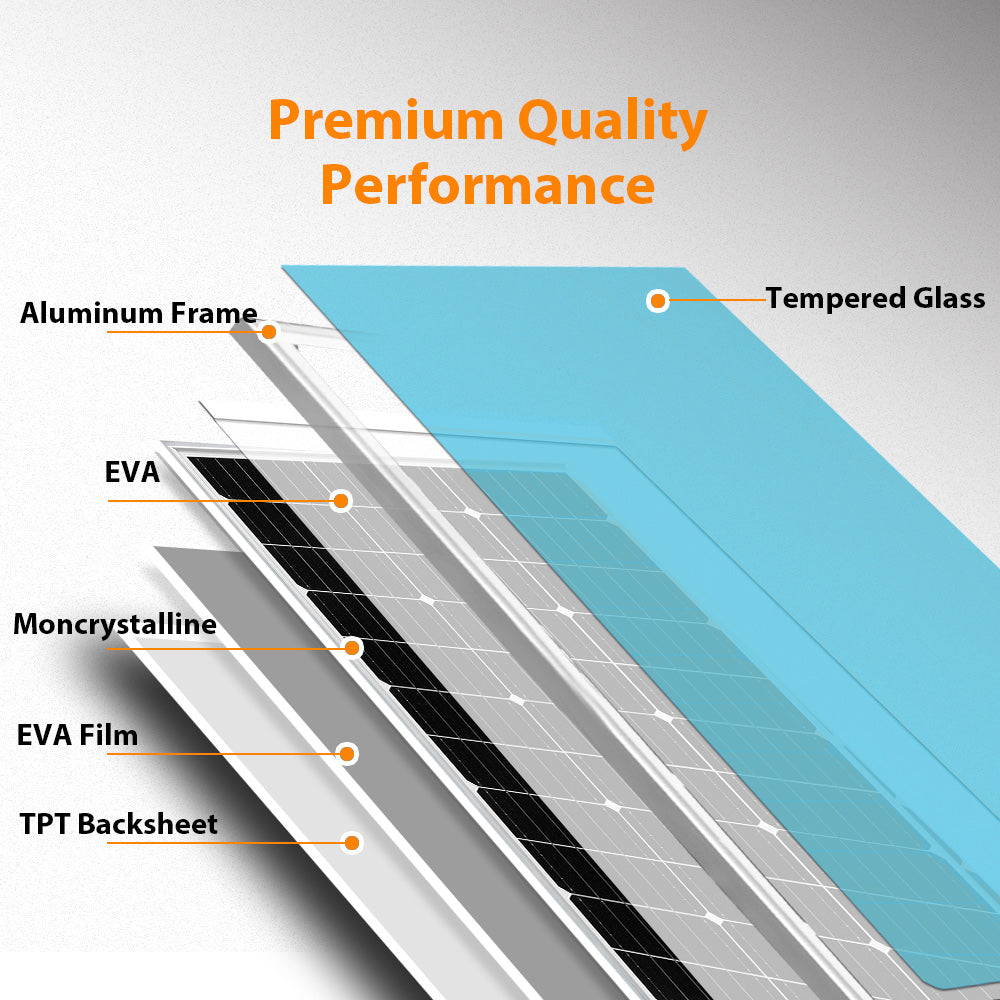

♣ Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.

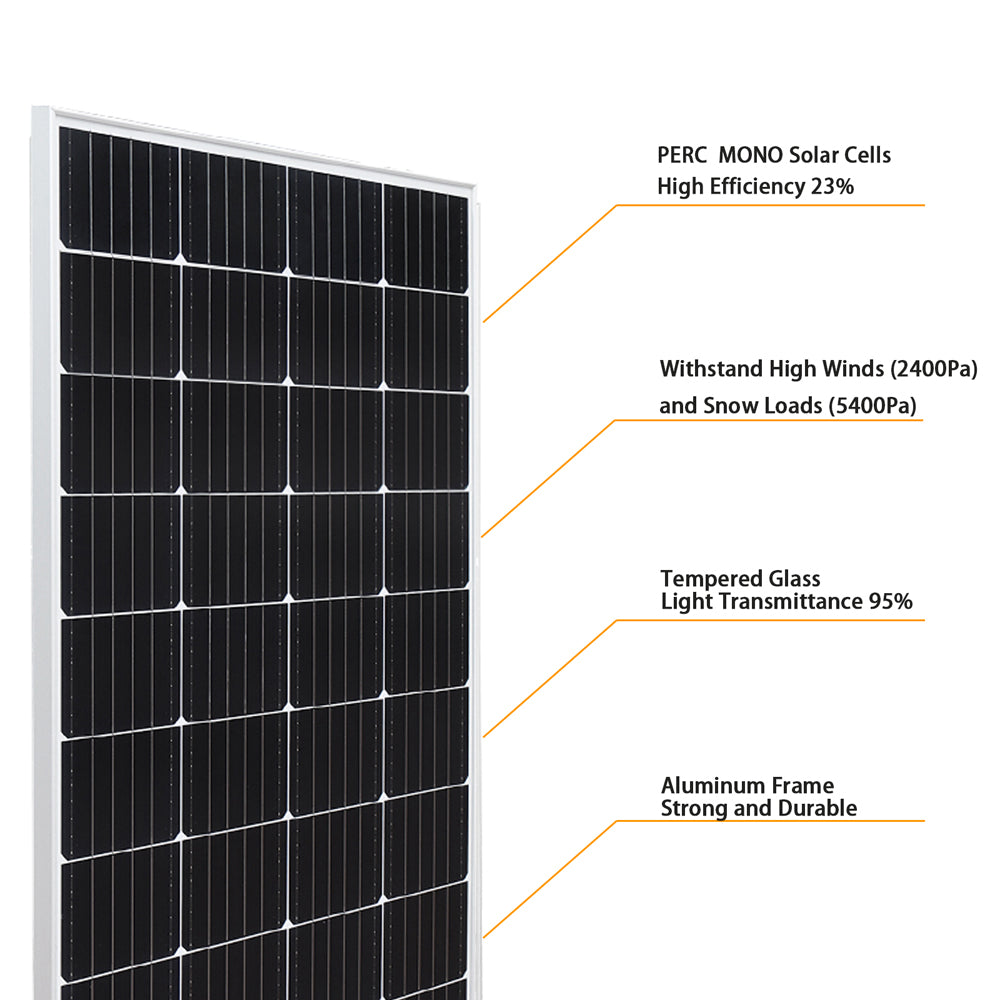

♣ Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).

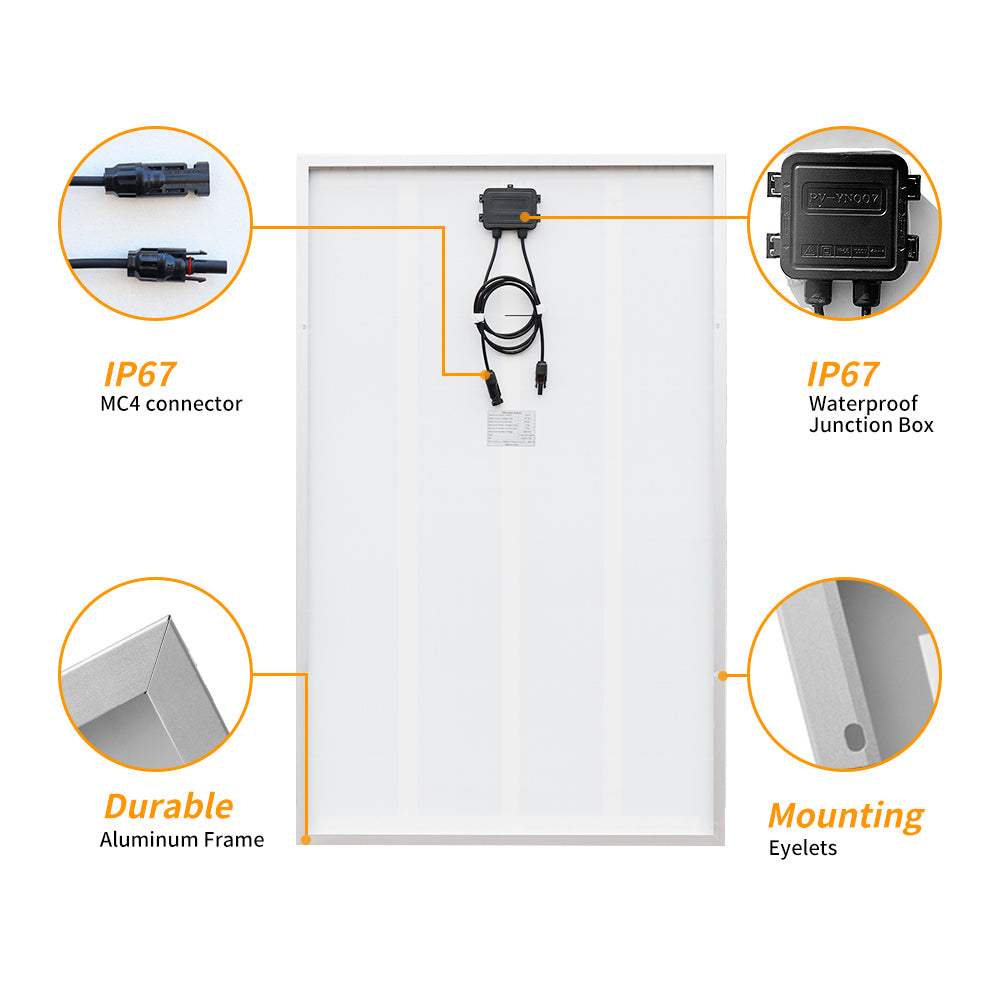

♣ By-pass diodes are pre-installed in a waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

♣25-year transferable power output; 5-year material and workmanship.

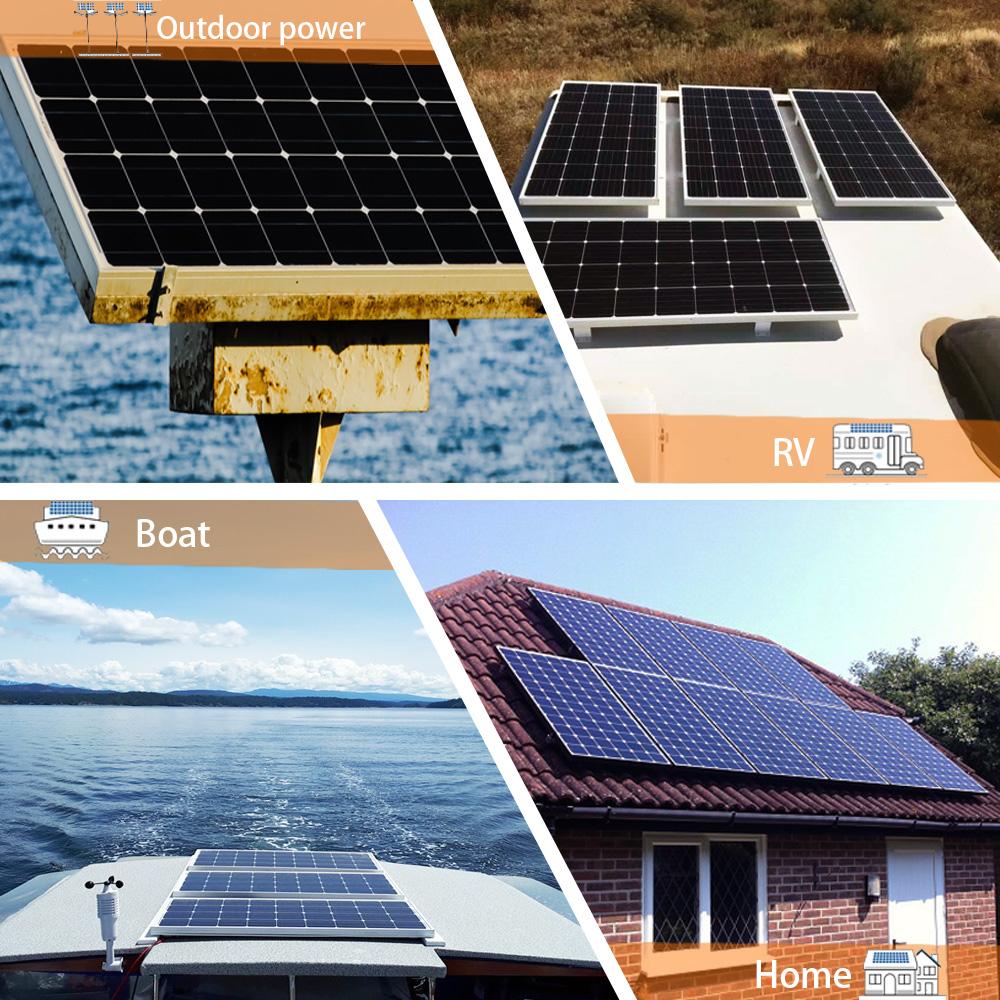

1. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa),Used in outdoors, houses, RVs, boats, wooden houses, street lights, marine, etc.

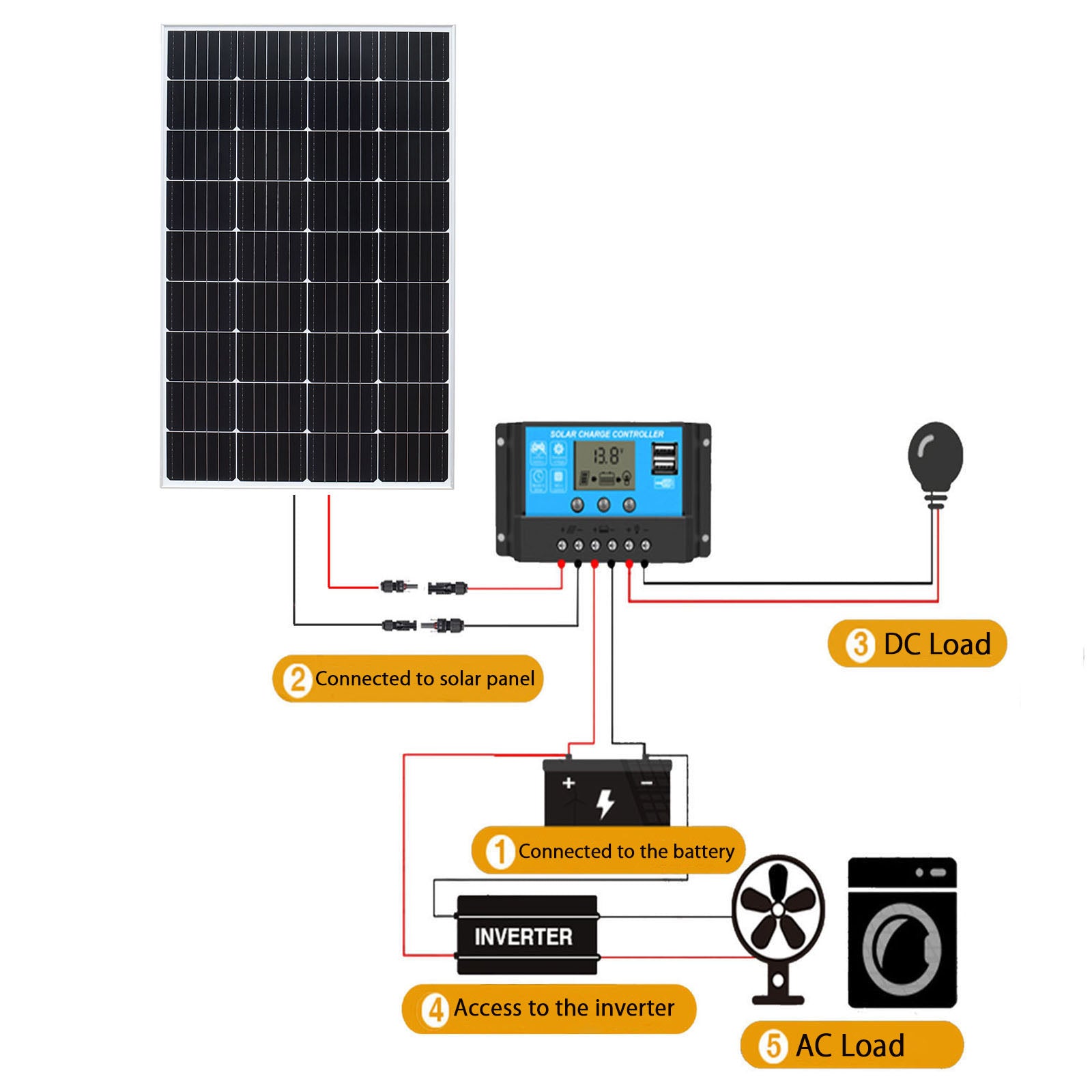

2. Pay attention to the connection sequence when installing, first, connect the controller to the battery, and then connect the solar panel to the controller.
