Maximum Power (Pmax): 100W
Maximum Power Voltage (Vmp): 18V
Open Circuit Voltage:21.6V
Maximum Power Current (Imp): 5.55A
Short Circuit Current:6.06A
Junction Box：IP 65 Nominal
Temperature Range：-40 Degrees to 80 Degrees
Type Glass：3.2MM Tempered Glass
Output Cable：2.5MM 90MM(0.09*3.54Inches)

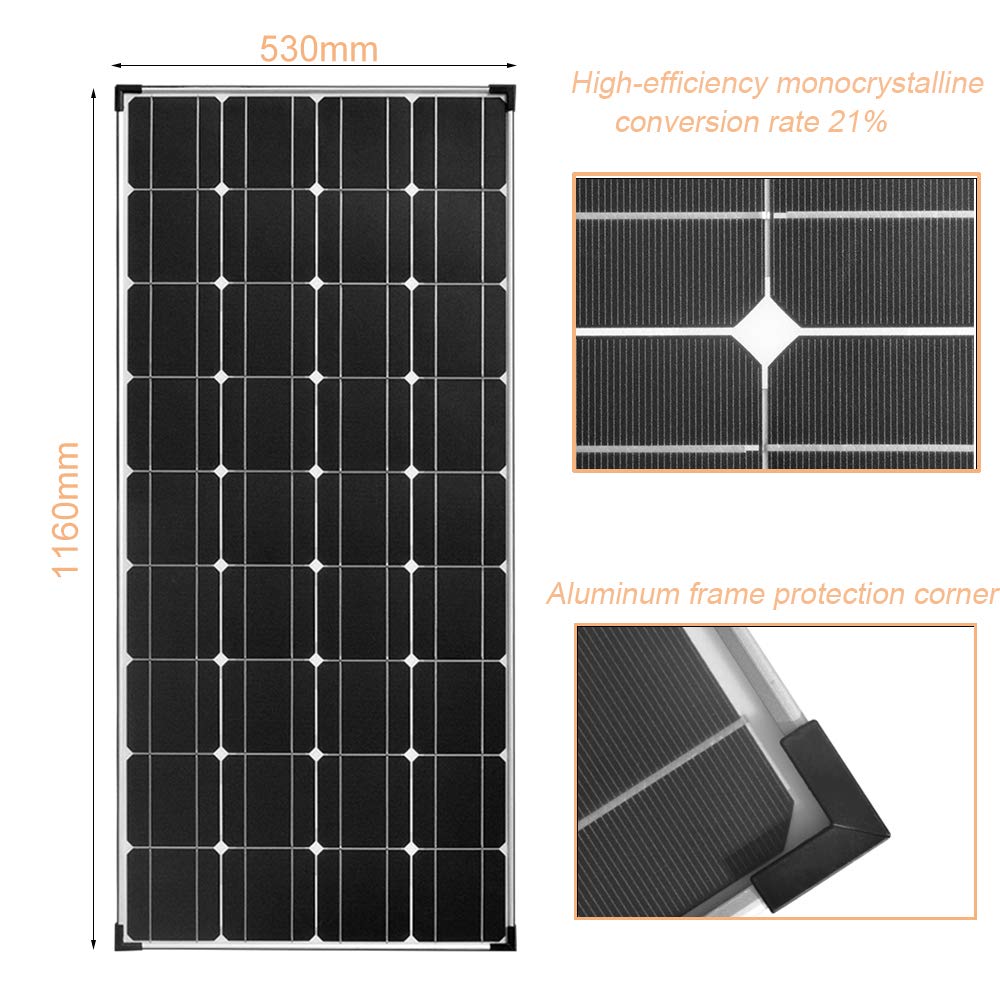

【High Conversion Efficiency】The 100w solar panel kit with high efficiency monocrystalline silicon solar cells, the power generation efficiency is 1.2 times higher than traditional. The surface is made of PET material and treated by a special process, which is more wear-resistant and at the same time improves the absorption efficiency of sunlight.

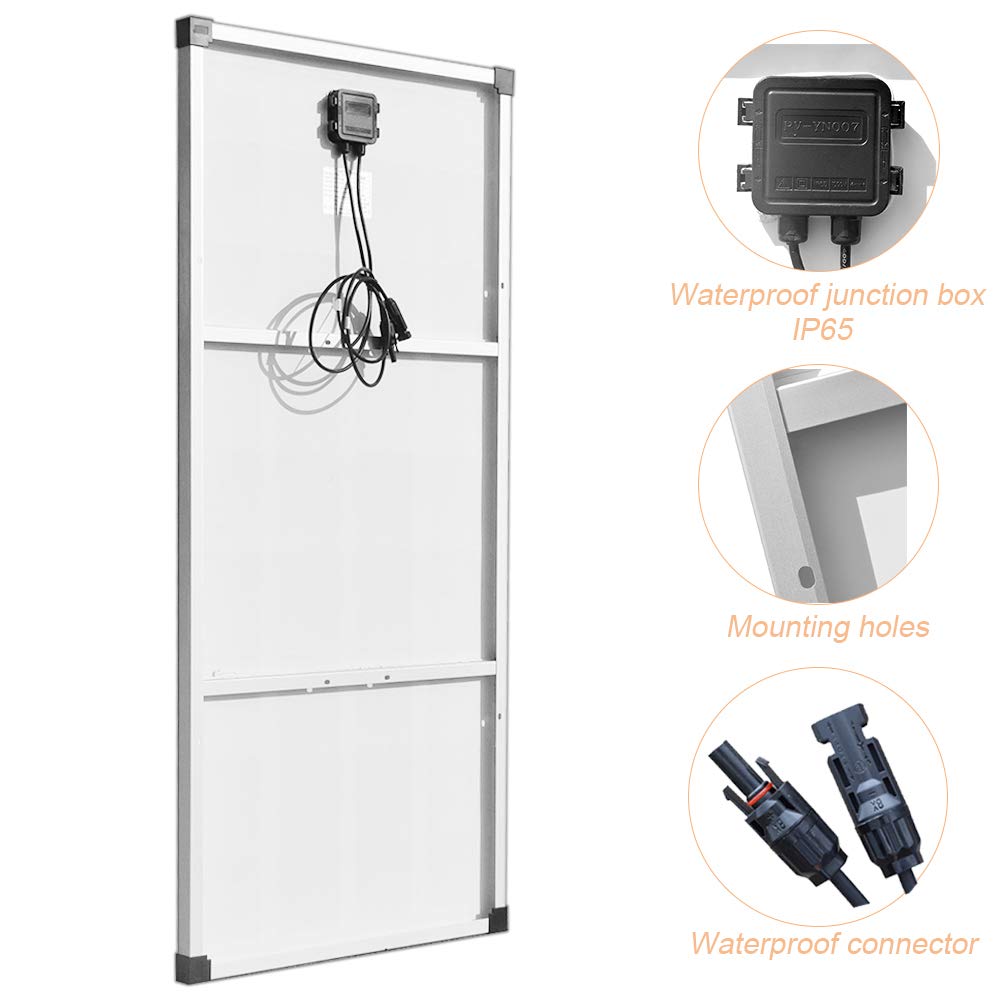

【Safety and Stable】By-pass diodes are pre-installed in waterproof IP-67 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

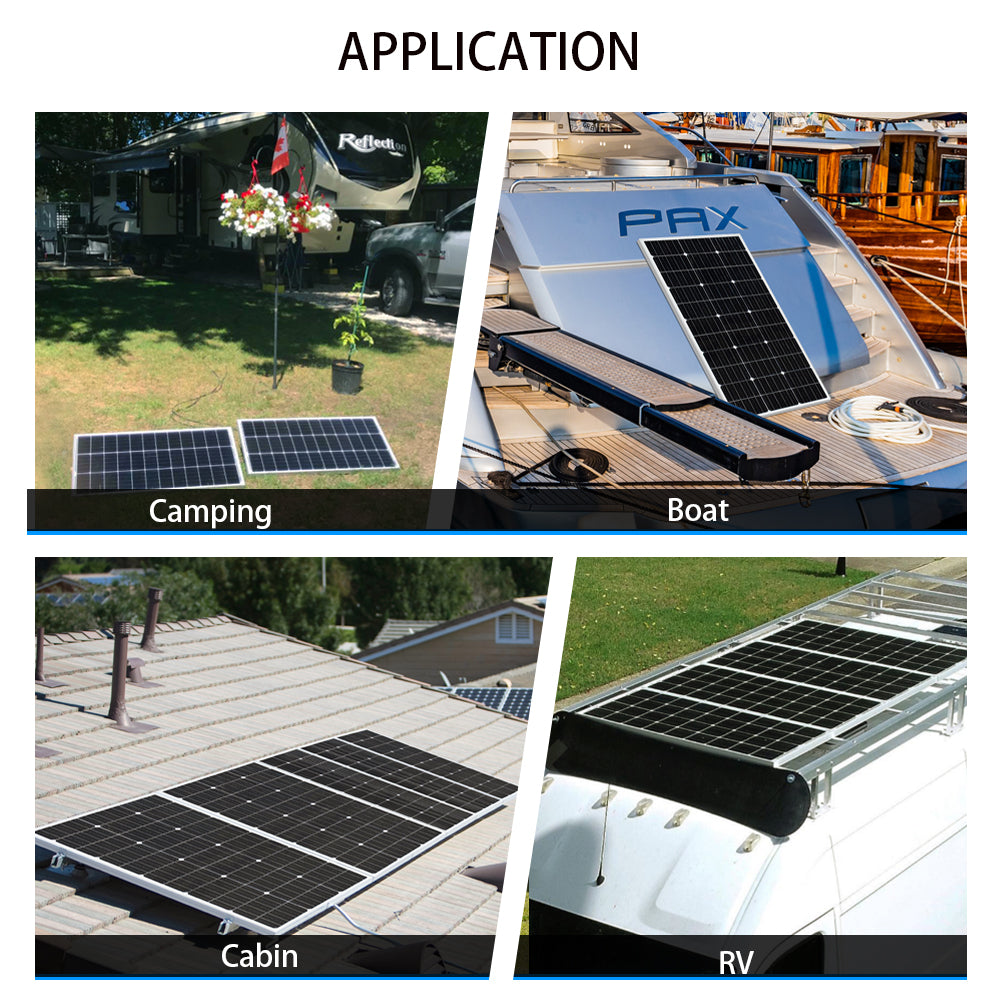

【Wide Application】Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins.
【Easy Install 】Pre-drilled holes on the back of the panel allow for fast mounting, fit for Z-brackets, Pole or Tilt Mounts, ect.

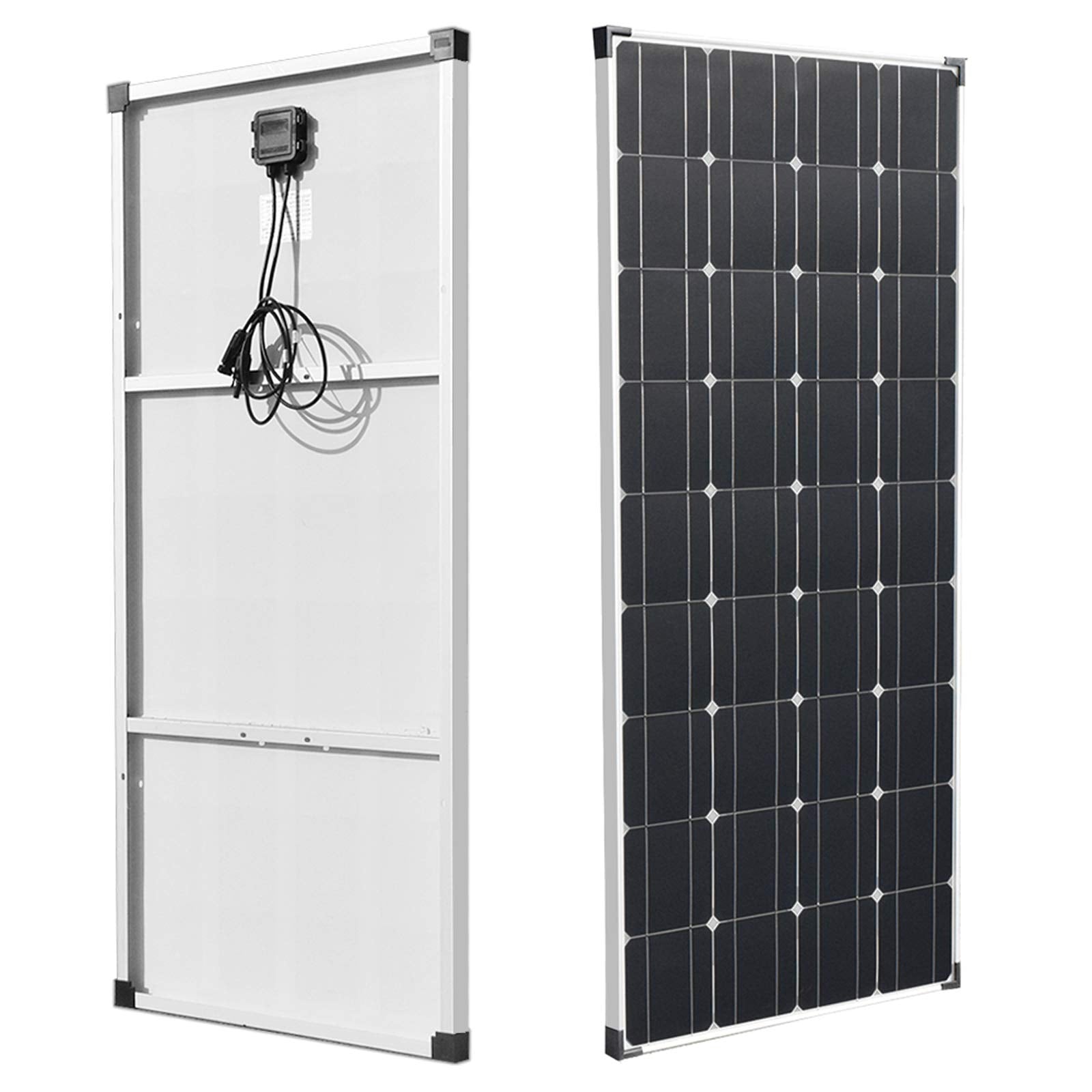

Xinpuguang 100W 12V Lightweight solar panels are 1/2 the weight of traditional tempered glass solar panels and are more portable. Suitable for RVs, boats, cabins, trailers, cars, etc. Can effectively solve the problem of power shortage and emergency.
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
