Maximum power(Pmax) ：100W
Open circuit voltage(Voc) ：23.76V
Short circuit current(Isc)：5.55 A
Maximum power voltage(Vmp)： 19.8V
Maximum power current(Imp)：5.05A
Temperature range： -40℃～+80℃
Maximum system voltage ：700V DC
Weight ：1.85kg(4 lb)
Standard Test Conditions ： lrradiance 1000w/m2，Temperature 25℃,AM=1.5

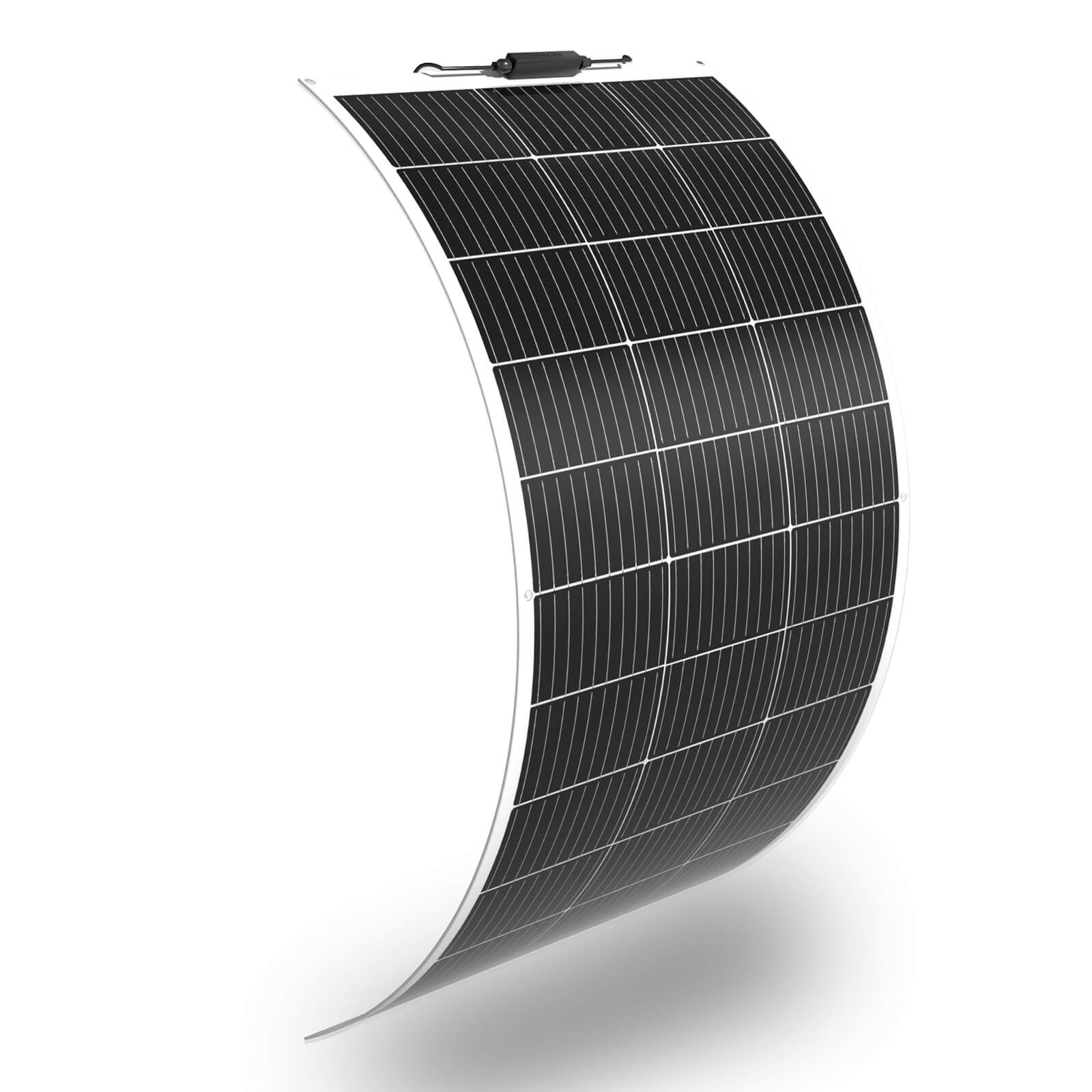

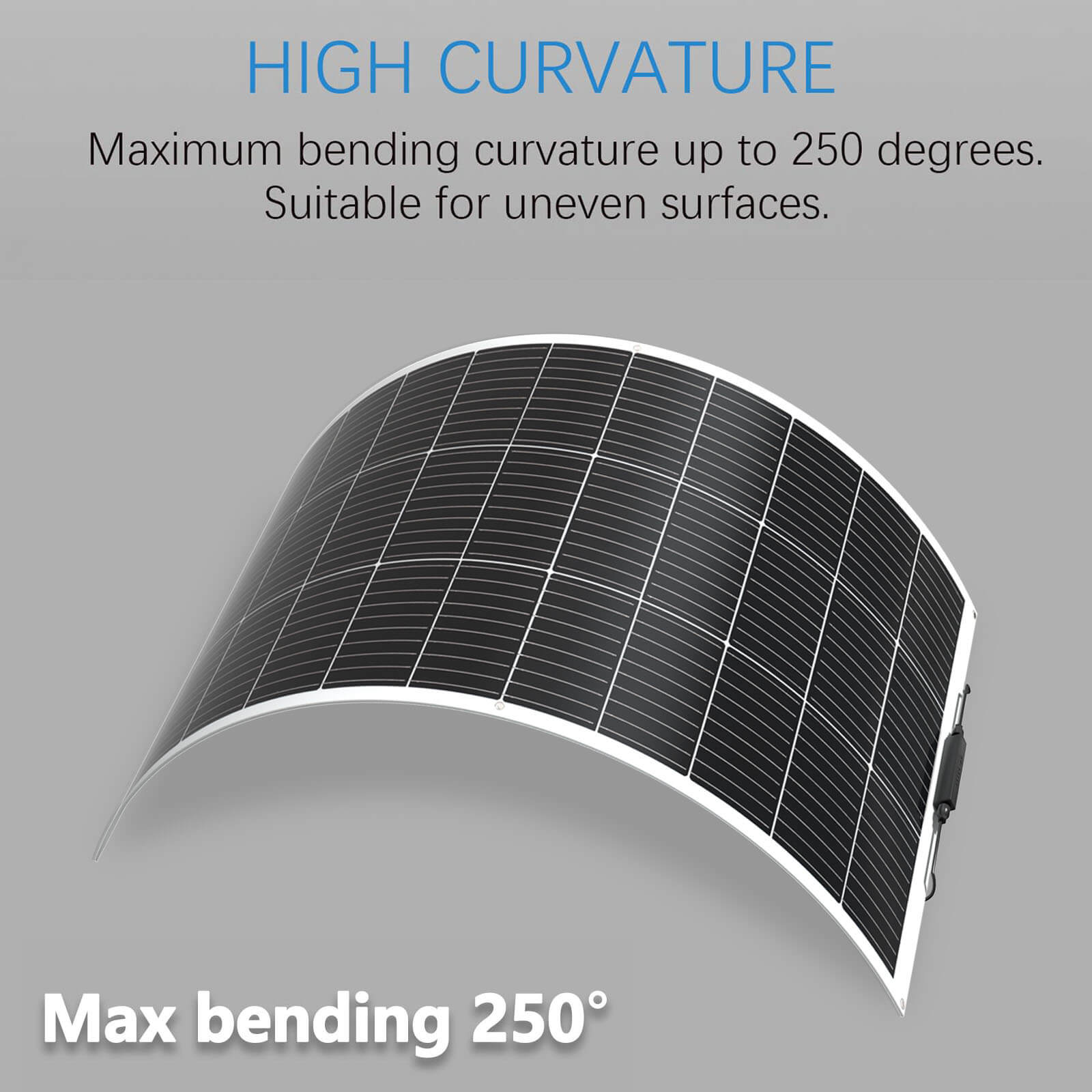

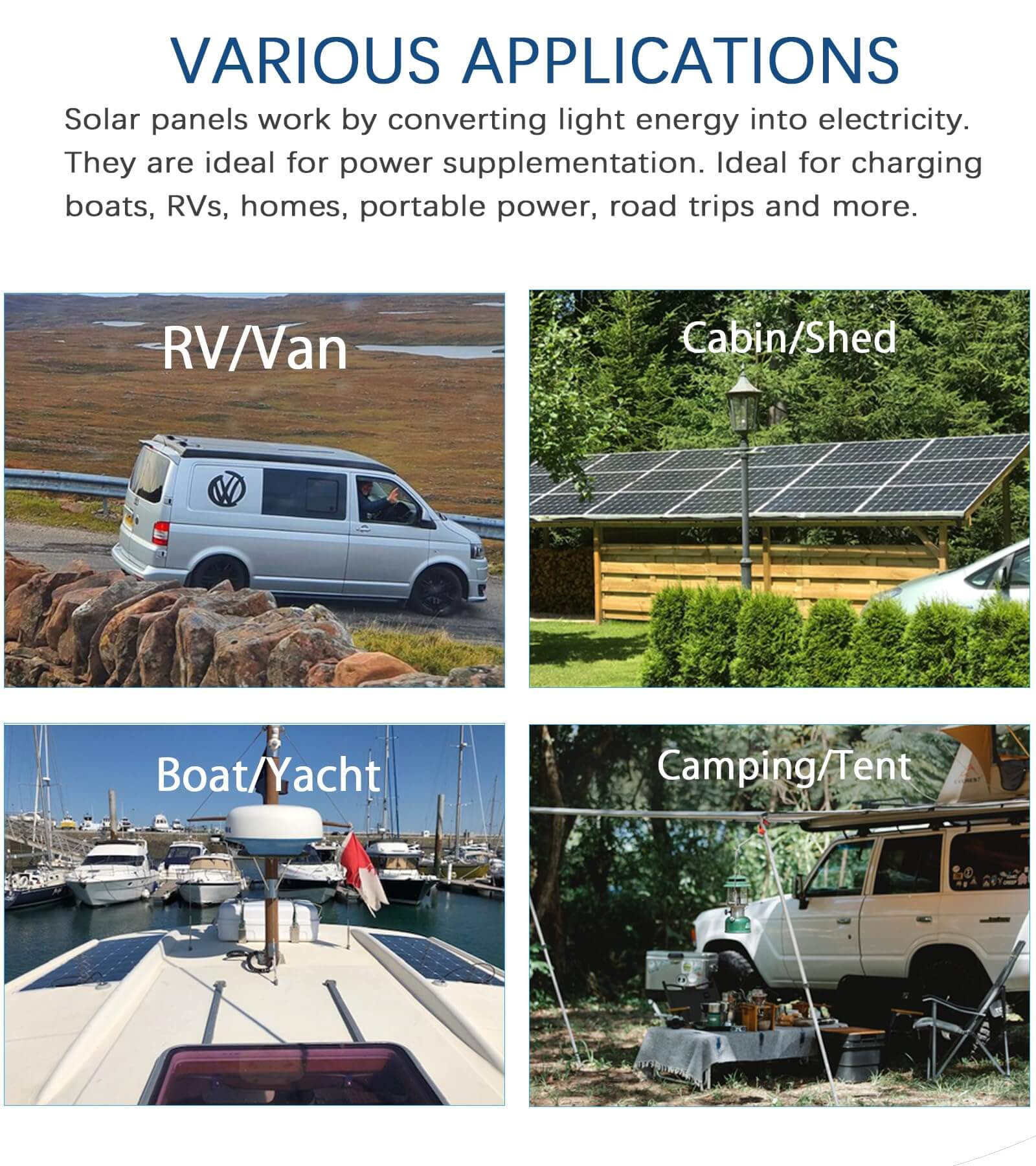

*Semi-Flexible: The plastic back sheet can be curved to a maximum 30 degree arc and mounted on RV, boat, cabin, tent, car, trucks, trailers or any other irregular surface.

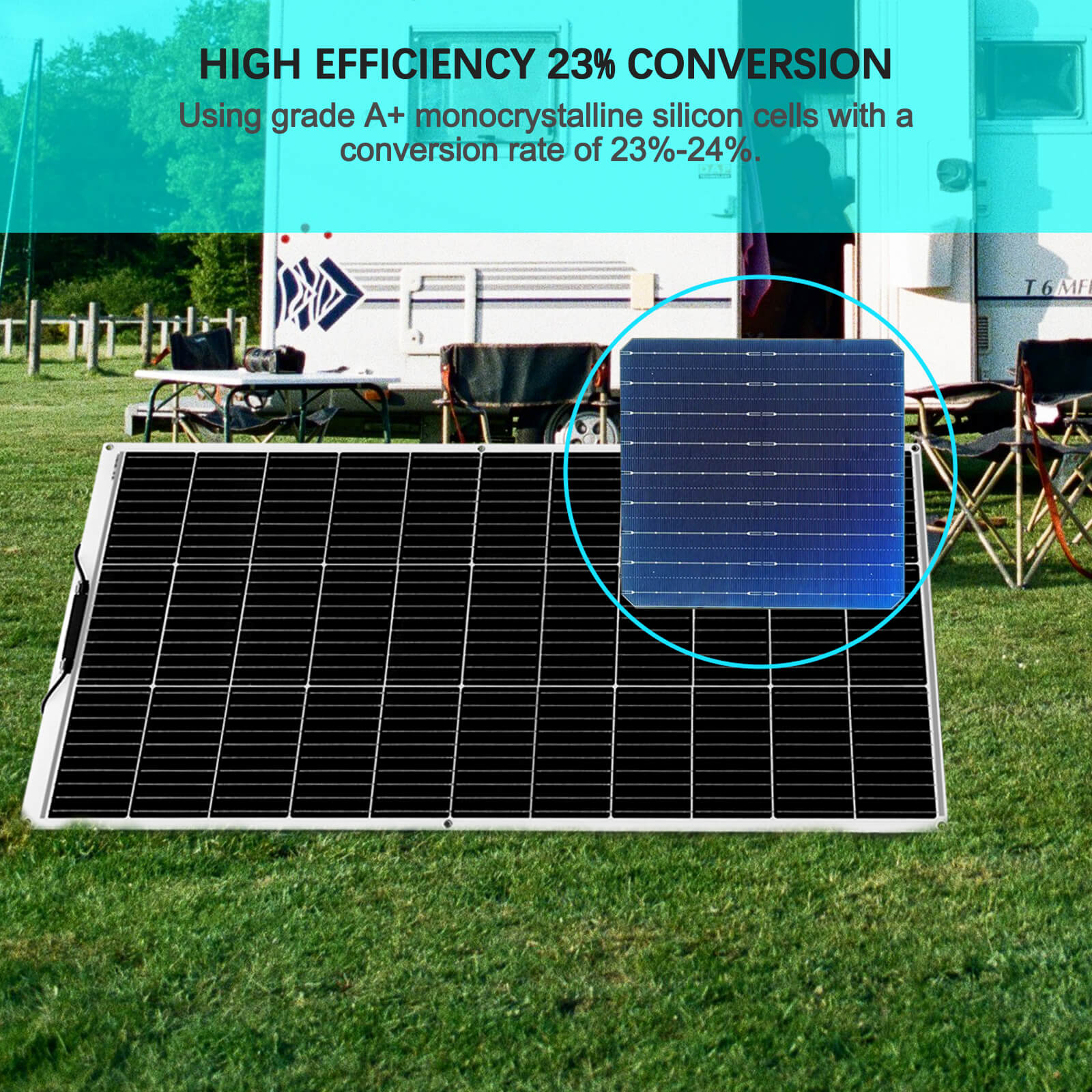

*High Efficiency: solar panels use new Perc solar monocrystalline cells, up to 22% conversion rate, 100w solar panels are smaller, lighter and more portable
*Practicality: Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas

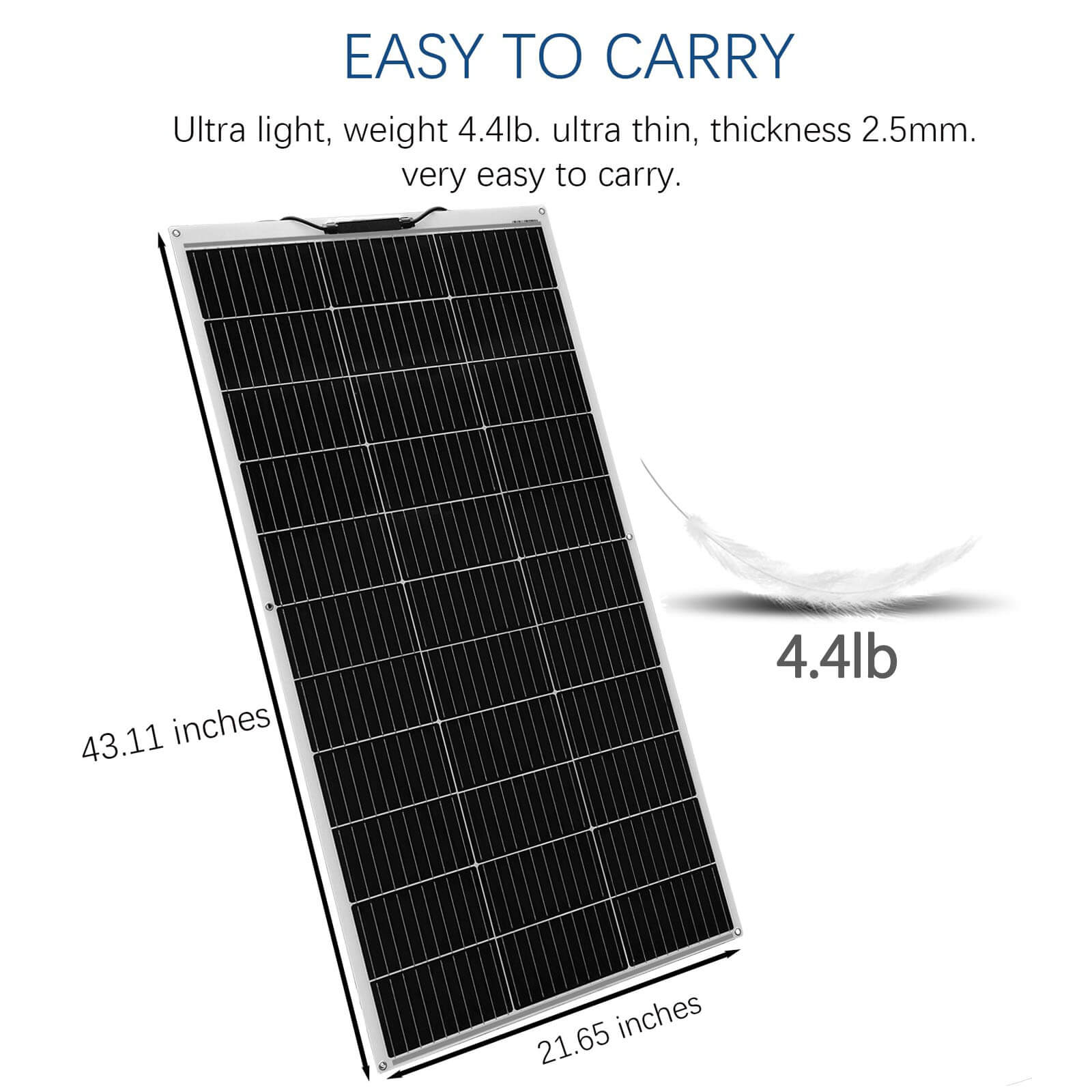

*Thin & Lightweight：100W solar panel weighs approximately 4lb,Thickness is 0.1in， weighs 70% less than conventional solar panels, making transportation and installation a breeze.
*Nice Details: The component contains a bypass diode, and the circuit uses input over current protection and reverse protection design.The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
