Xinpuguang

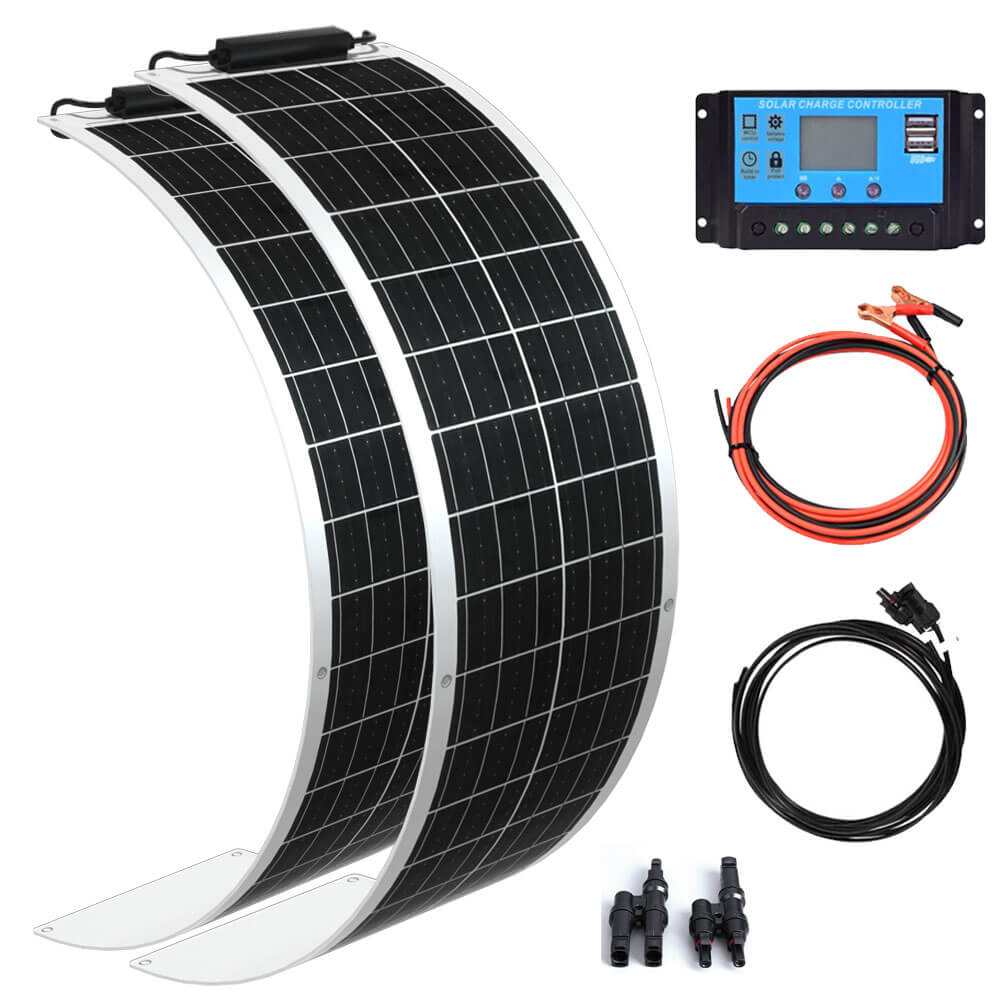

Xinpuguang 100w 12V Flexible Solar Panel kit

$127.90 $169.90
ship from:
Quantity:


✈ Solar Panel
Maximum power(Pmax) :100W
Open circuit voltage(Voc) :21.6V
Short circuit current(Isc) :3.74A
Maximum power voltage(Vmp) :16V
Maximum power current(Imp) :3.12A
Cell efficiency: 19.8%
Temperature range :-20℃~+80℃
Weight :1.2KG
Size :1060*277*3 mm
Standard Test Conditions : irradiance 1000w/m2,Temperature 25℃,AM=1.5

✈ Controller
Batt voltage:12V/24V auto
Charge current:10A
Discharge current:10A
USB output:5V/2A
Self-consume:<10mA
Operating temperature:-35~+60 ℃
suitable for :lead-acid batteries, lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

✈ Packing list
1. 2* 50w solar panel
2. 1* 12v/24v/10A charge controller
3. 1* 3meters 2.5mm² PV Connector
4. 1* 3M cable with alligator clip(connected to a battery)
5. 1* 2 in 1 adapter
6. 1* Connector Cover
7. 4* D buckle

★Monocrystalline Solar Cell: Class A solar monocrystalline cell ,Top ranked PTC rating,up to 19.8% Conversion efficiency,fast and inexpensive

★Bendable Panel: The plastic back sheet can be curved to a maximum 30-degree arc and mounted on an RV, boat, cabin, tent, car, trucks, trailers, or any other irregular surface

★Thin and Lightweight: Each piece weighs 1.2kg(4.19),Thickness 3mm,this flexible solar panel weighs only a quarter of its traditional panel counterpart,For installations with low endurance, it is the best choice.

★Nice Details: The junction box is sealed and waterproof. Width 277mm (10.9in), can install smaller areas such as RVs, Boats,Caravan.

★Light energy converts electrical energy, which can be used as emergency power. It is a good choice to use solar panels in places where electricity is not available or where the mains cannot reach.

★Wide use applications: Golf car, Yacht, Boat, Caravan, RV, Truck roof, Camping, roof power generations, tent, portable generator kits, etc.

1. Use with the controller, pay attention to the installation sequence, first connect the controller to the battery, then connect the controller to the solar panel.

2. Bending is limited to 30 radians. 3. Please remove the film on the surface when it is installed and used. Otherwise, it will affect power. 4. When installing or testing, please be in the sun and not in the shadows.

We can provide free shipping for most of the products, for the EU and North America. However, some remote zip codes may require additional remote fees (especially remote islands). After the order is shipped, you will receive a shipping notification email with a tracking number and other information. You can check the status of the package through various official websites such as UPS, FedEx, DHL, USPS, Canada Post, DPD, etc. You can also query through our website, the query path is "support" --- "order tracking". Enter the tracking number to query.
