✈ Solar Panel Specification
【Maximum power voltage】18V
【Maximum power current】5.55A
【Open circuit voltage】22v
【Short circuit current】5.95A

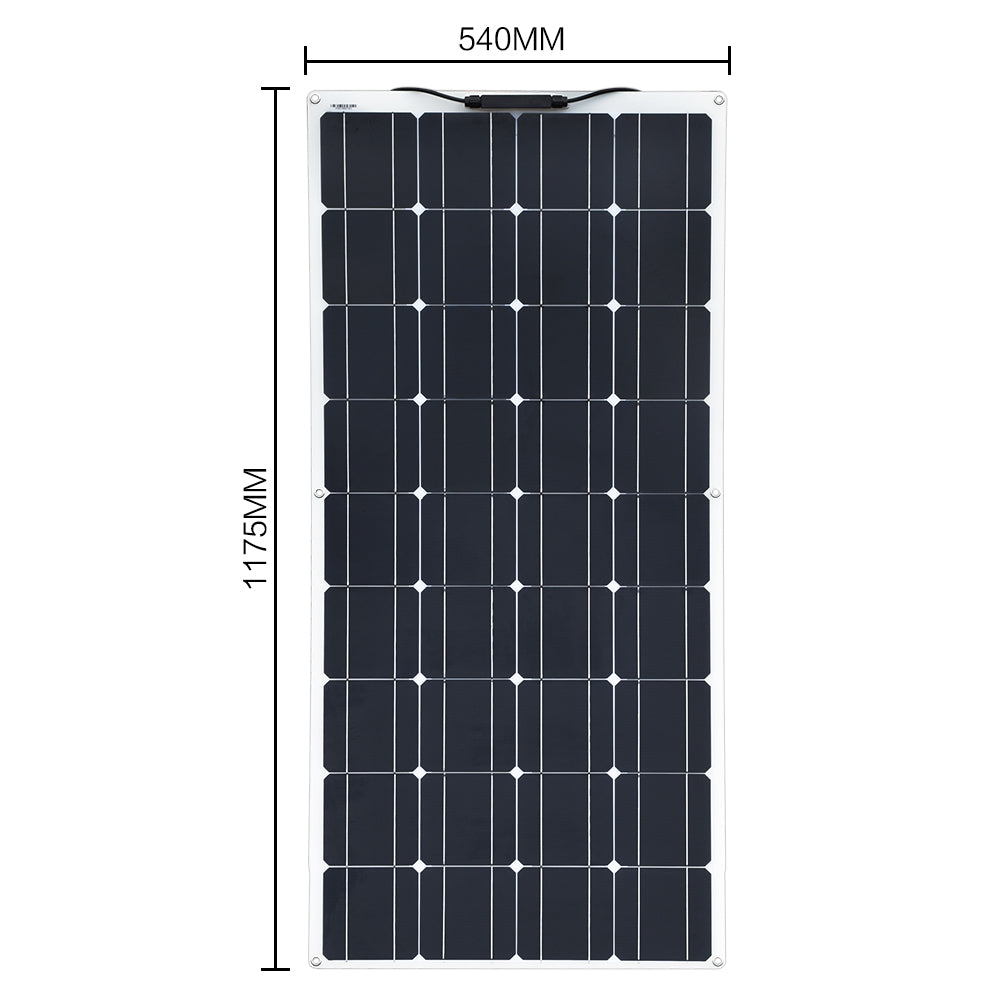

【Size of module】1175X540X3mm
【Tolerance Wattage】 +/-5%
【Weight per piece】 2.2kg
【Temperature Range】-20- +60 ℃
【Junction Box Type】IP65
【Length of Cables】 90cm
【Cell Efficiency】 > 19.5%
【Module Efficiency】 > 19%
【Standard Test Conditions】AM1.5 100mw/cm2 25 ℃
【Temperature coefficients of Isc (%)】0.065+/-0.015%/ ℃
【Temperature coefficients of Voc (%)】-(2.23+/-0.1) / ℃
【Temperature coefficients of Pm (%)】-(0.5+/-0.05)/ ℃
【Temperature coefficients of Im (%)】 +0.1/ ℃
【Temperature coefficients of Vm (%)】-0.38/ ℃
✈ Controller Specification
Nominal system voltage ：12/24VDC
Auto Battery input voltage range： 9V～32V
Rated charge/discharge current ：30A@55℃
Max. PV open circuit voltage ：50V
Battery type ：Sealed(Default) / Gel / Flooded
USB output ：5VDC/2.4A(Total)
Mounting dimension ：172x80mm
Mounting hole size： Φ5.0mm
✈ packing list
100W*4 pcs flexible solar panel
1 piece 30A solar controller,
1*3M cable with PV Connector
1*3M cable with alligator clip
4 in 1 in parallel connector

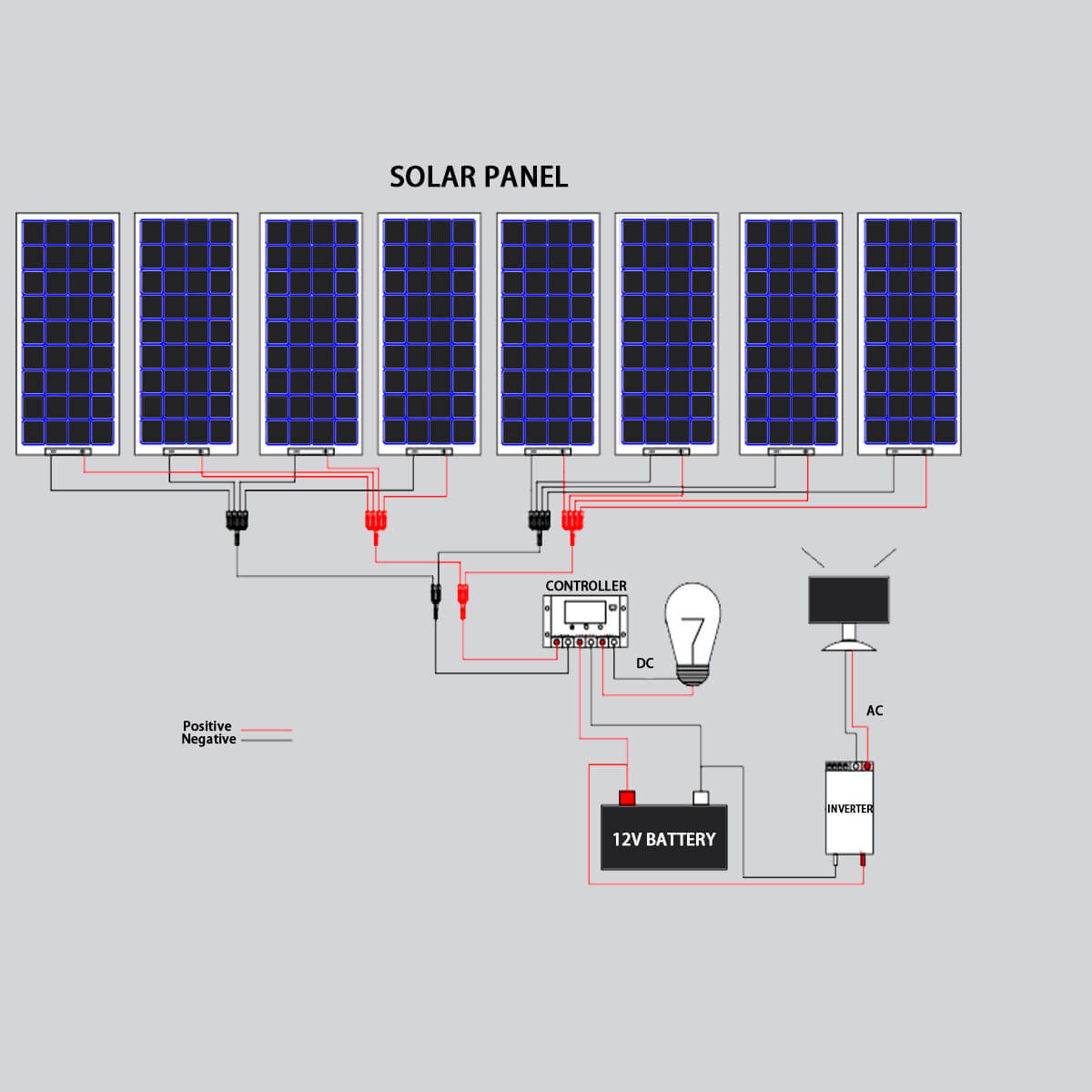

✈Practicality: This solar panel kit can be used as a 12V off-grid system.suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.

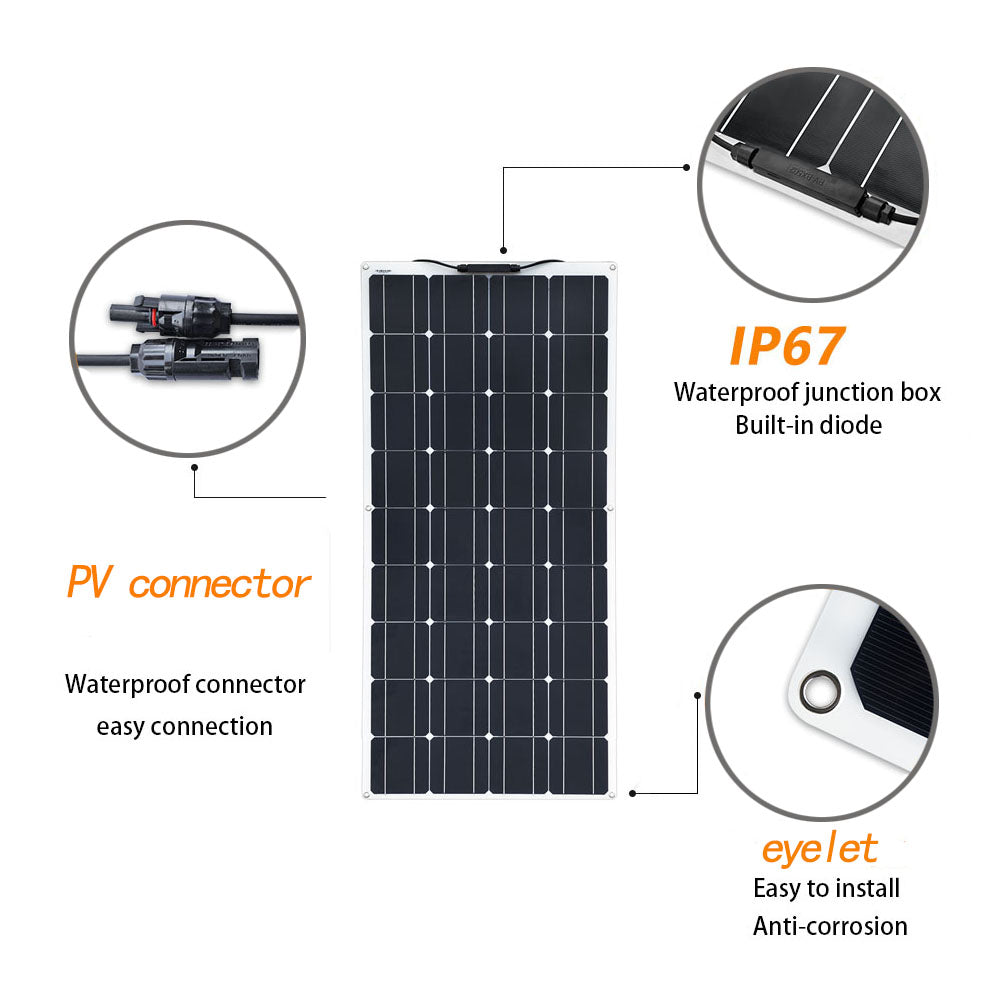

✈Easy Installation: The solar panel has 6 grommet mounting holes are available to attach fasteners，and can also be installed with silicone and adhesive tape.

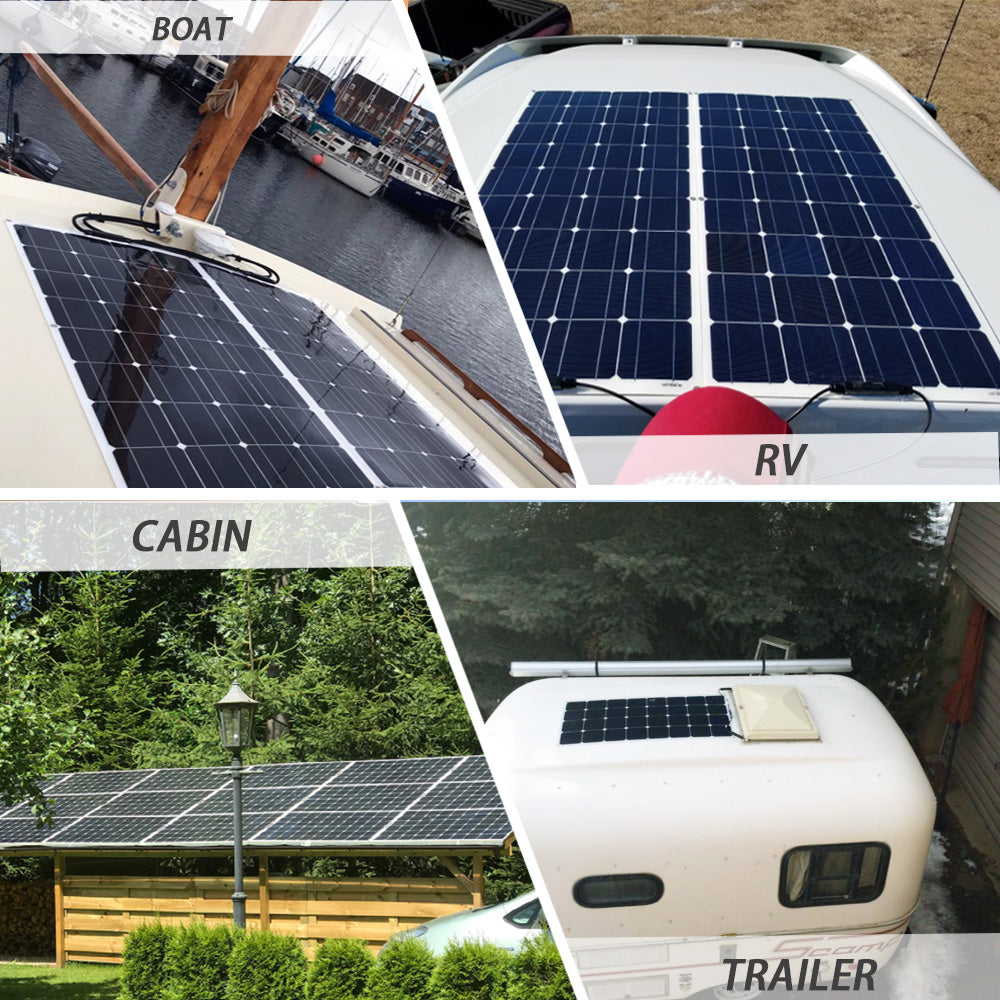

✈Flexible: This panel is a good choice for curved surfaces of RV, boat,yacht,truck, car, cabin, camper , tent , trailer, golf cart or any other irregular surface.

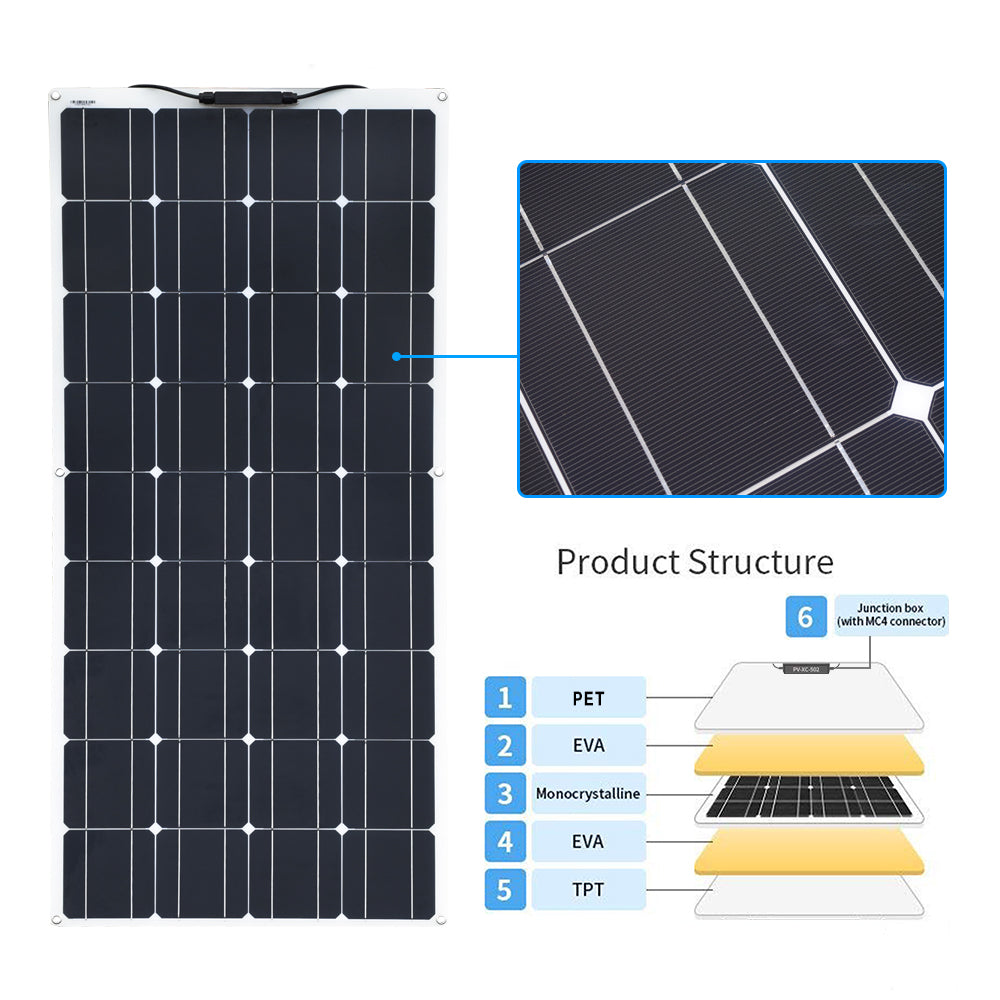

✈Reliable: Advanced encapsulation material with multi-layered sheet laminations to enhance cell performance and provide a long service life.

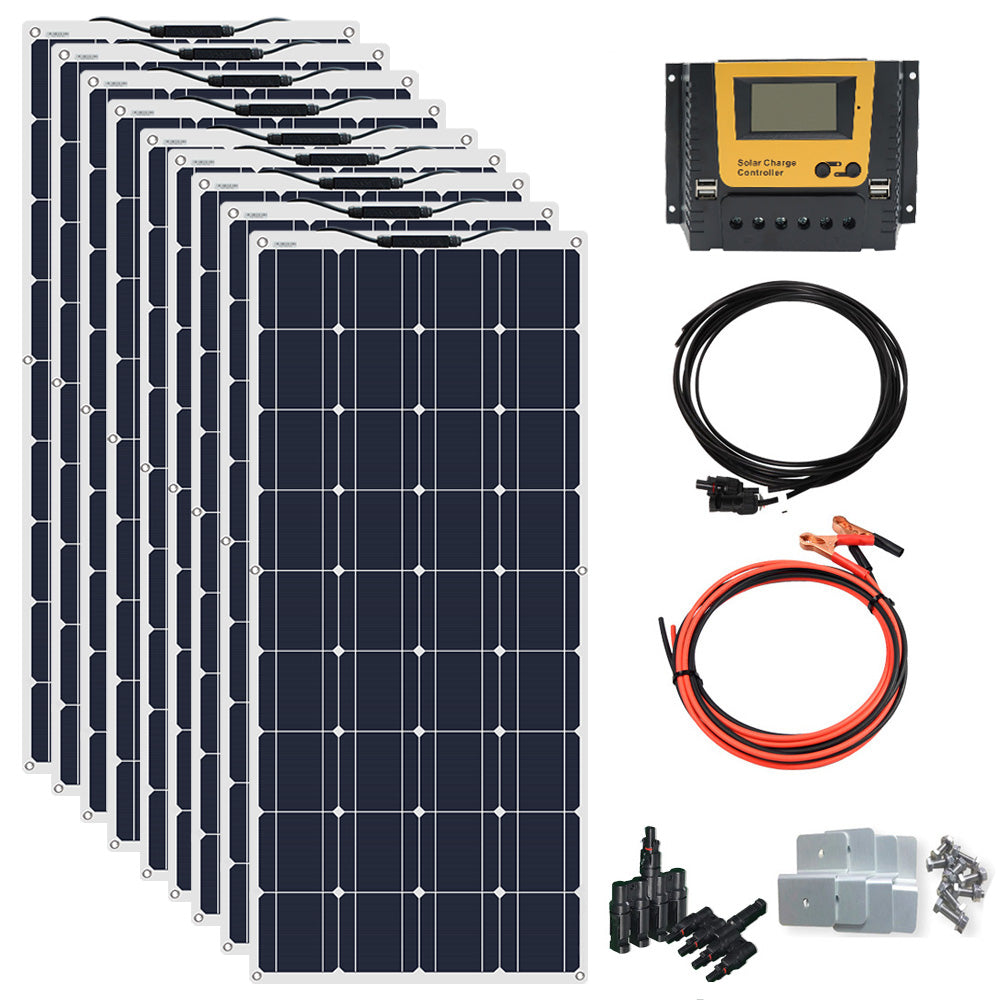

✈What you get: 100W*4 pcs flexible solar panel, 1 piece 30A solar controller, 1*3M cable with PV Connector,1*3M cable with alligator clip，4 in 1 in parallel connector
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
