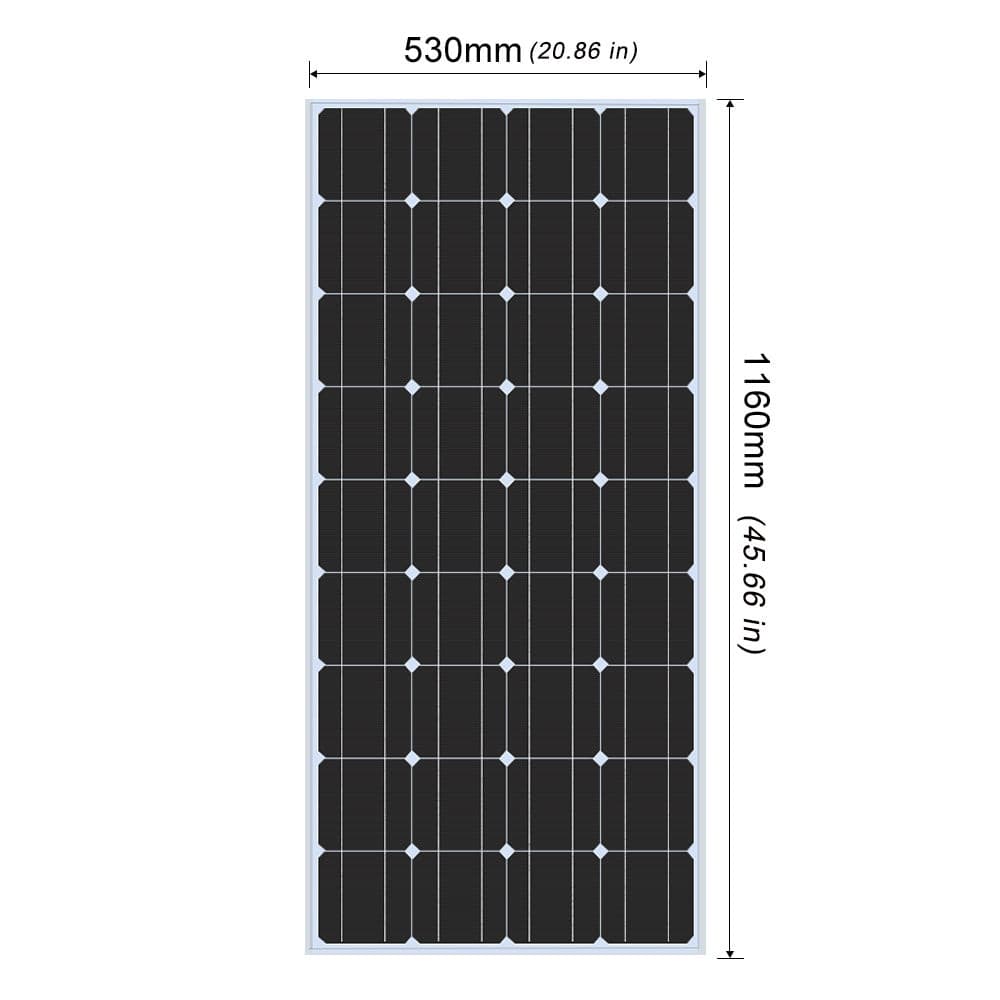

Rated Power 100 Watt
Operating Voltage(Vmp) ：18V
Open circuit voltage（Voc） ： 21.6 V
Short circuit current (Isc) 6.06 A
Working current (Imp) 5.55A
Max System Voltage 1000V DC(IEC)/600V DC (UL)
Junction Box IP 65 Rated
Output Cable 2.5MM 90MM(0.09*3.54Inches)

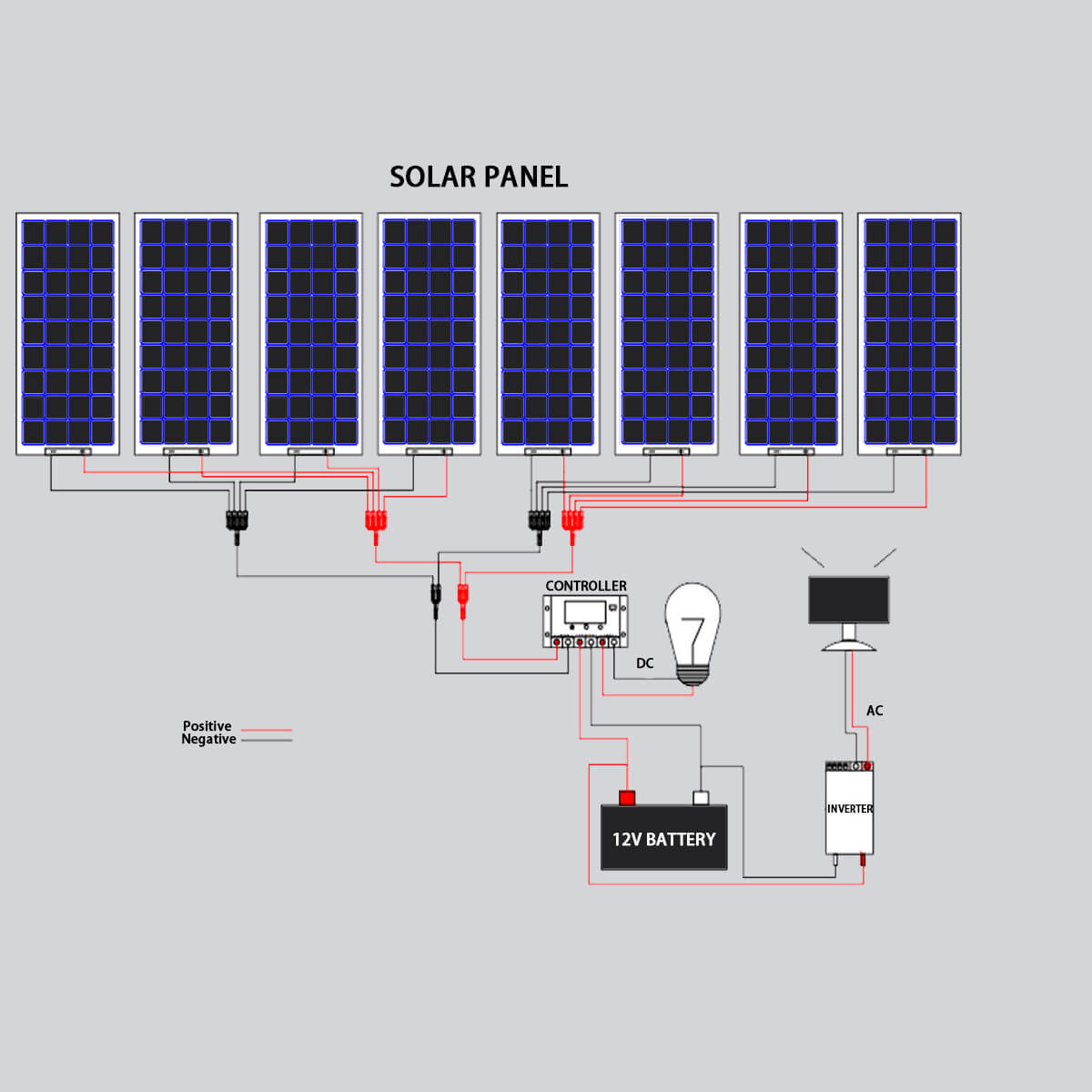

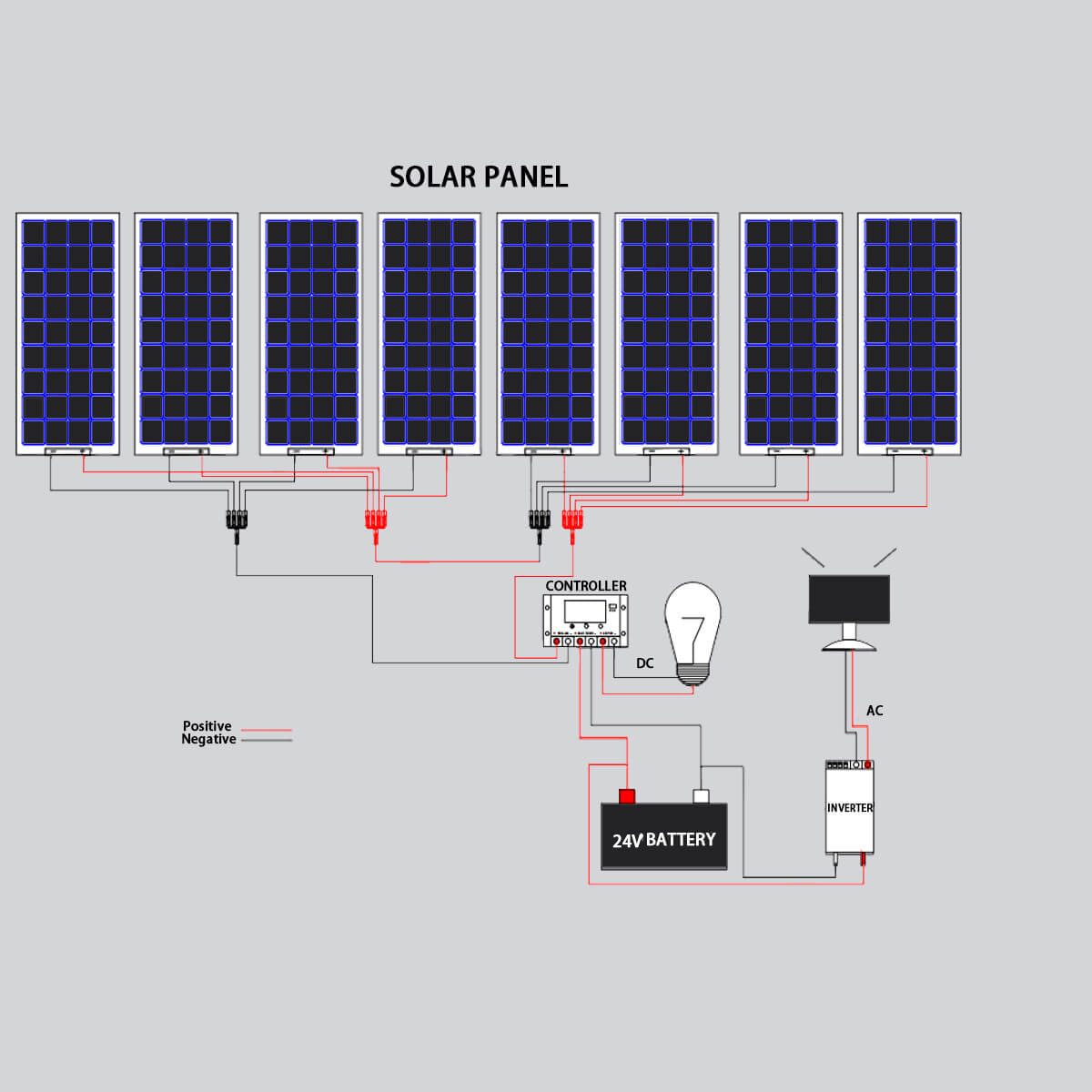

Battery Voltage：12V/24V/36V/48V Auto
Max PV Open Circuit Voltage：100V
Loop Voltage Drop：≤0.3V
USB Output：5V/2A *2
Temperature Compensation：-4mV/℃/2V (25℃）
Operating Temperature ：-20℃~+50℃
Mounting Hole Size：190*104mm-Φ5mm
Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);

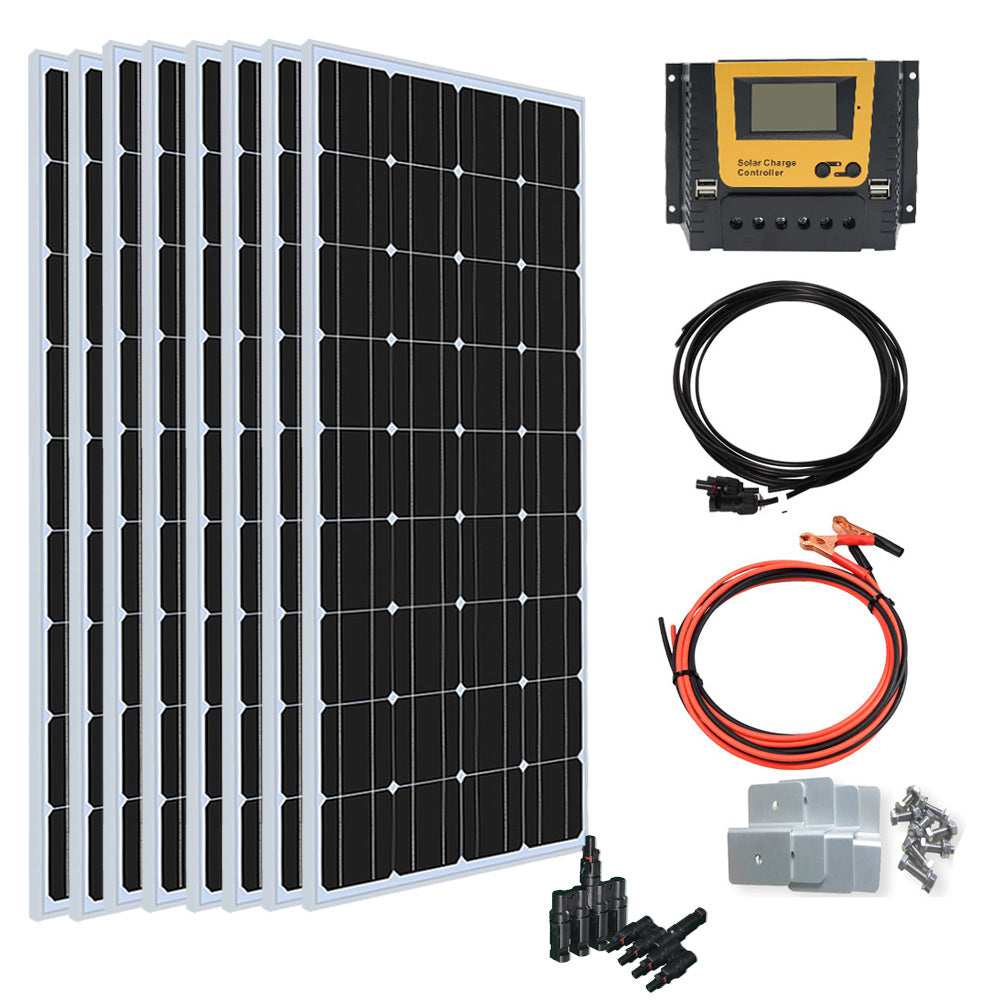

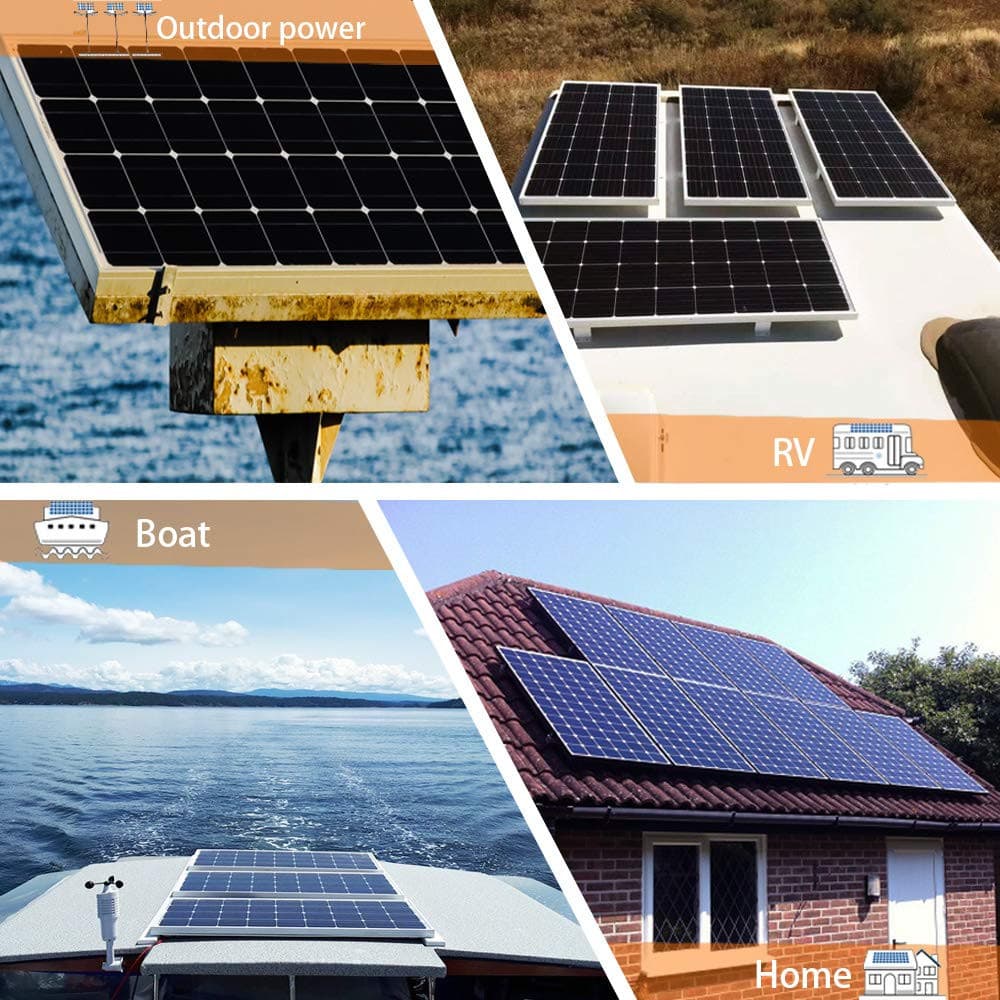

♣ Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of panel for fast mounting and securing.

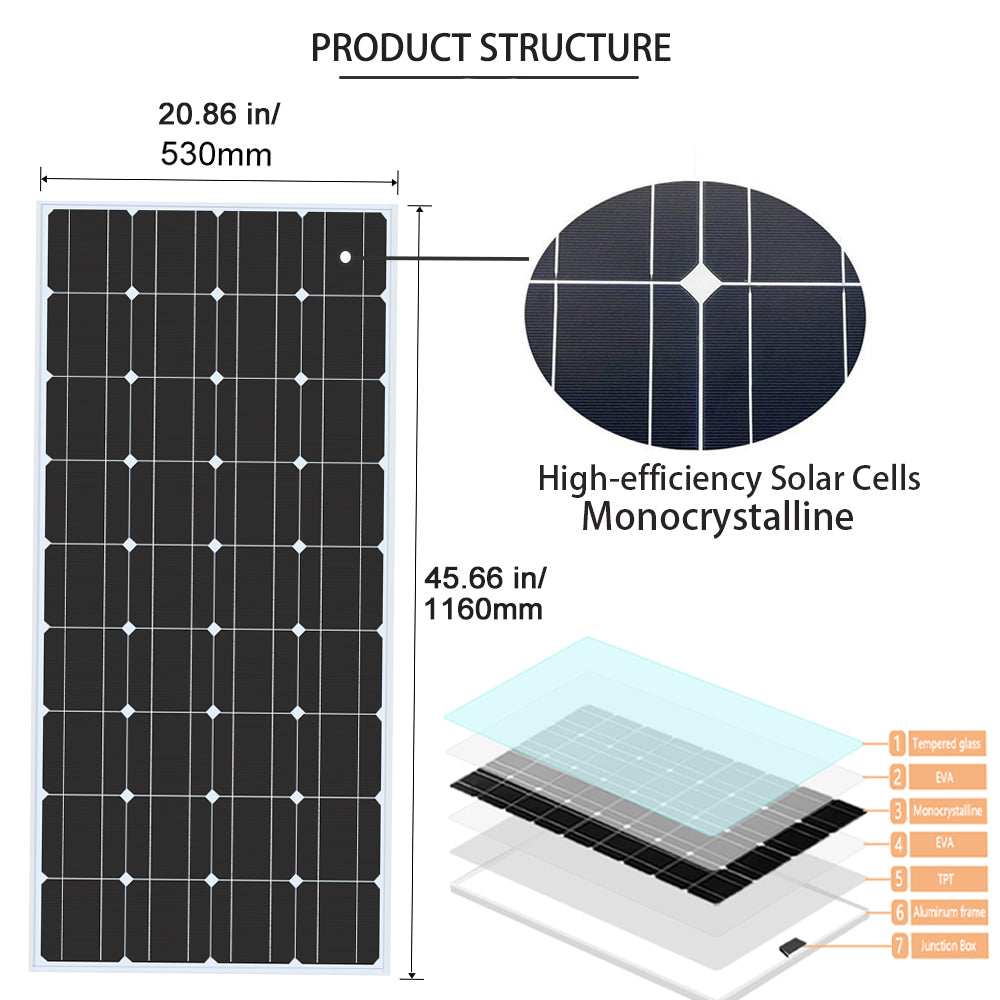

♣ Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.

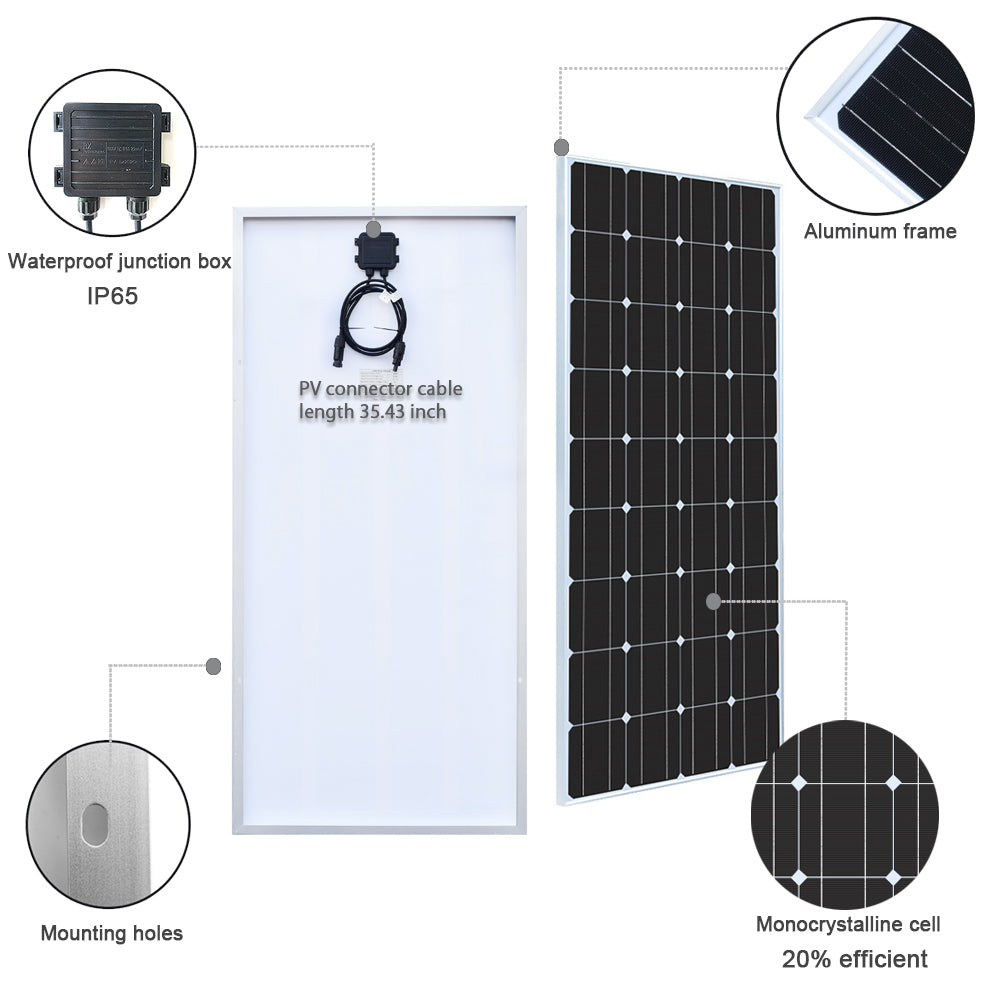

♣ Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .
♣ By-pass diodes are pre-installed in waterproof IP-65 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
