Maximum Power Output: 150W
Maximum Power Voltage (Vmp): 19.8V
Maximum Power Current (Imp): 7.57A
Open-Circuit Voltage (Voc): 23.76V
Short-Circuit Current (Isc): 8.32A
Maximum System Voltage: 1000V DC

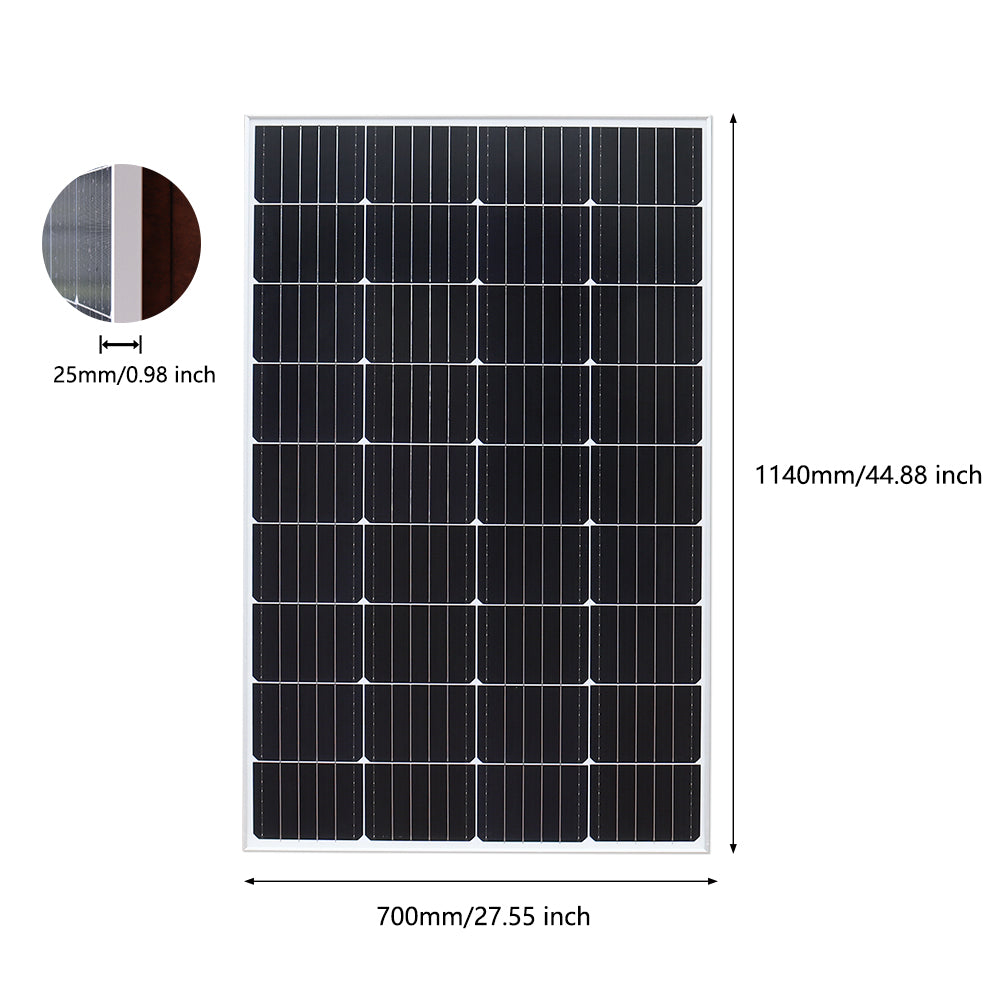

Dimensions: 44.88 x27.55x0.98 inch
Output voltage：110VAC or 220VAC
Output wave：Pure sine wave
Input voltage range：9.55-15.5V
Operating temperature range：﹣10°- +50°
Storage temperature：﹣30°- +70°
Humidity：Max. 90%, non-condensing
Net weight/Gross weight：2.51/3.17kg
Starting：bipolar soft start
LED Lights：Blue indicator light (inverter output, normal operation); the red indicator flashes (under / over voltage, overload, temperature, short circuit)
Protection：Battery over under / over voltage, overload, temperature, AC short circuit protection (positive and negative polarity protection)
Fuse：DC short circuit protection
Display：LED high-definition digital display
Circuit Topology：Frequency link
Cooling way：Intelligent cooling, built-in cooling block
Battery Voltage：12V/24V/36V/48V Auto
Max PV Open Circuit Voltage：100V
Loop Voltage Drop：≤0.3V
USB Output：5V/2A *2
Temperature Compensation：-4mV/℃/2V (25℃）
Operating Temperature ：-20℃~+50℃
Mounting Hole Size：190*104mm-Φ5mm
Support more kinds of battery: Lead-acid battery (Sealed, Gel, Flooded) and Lithium battery (LiCoMnNiO2, LiFePO4);

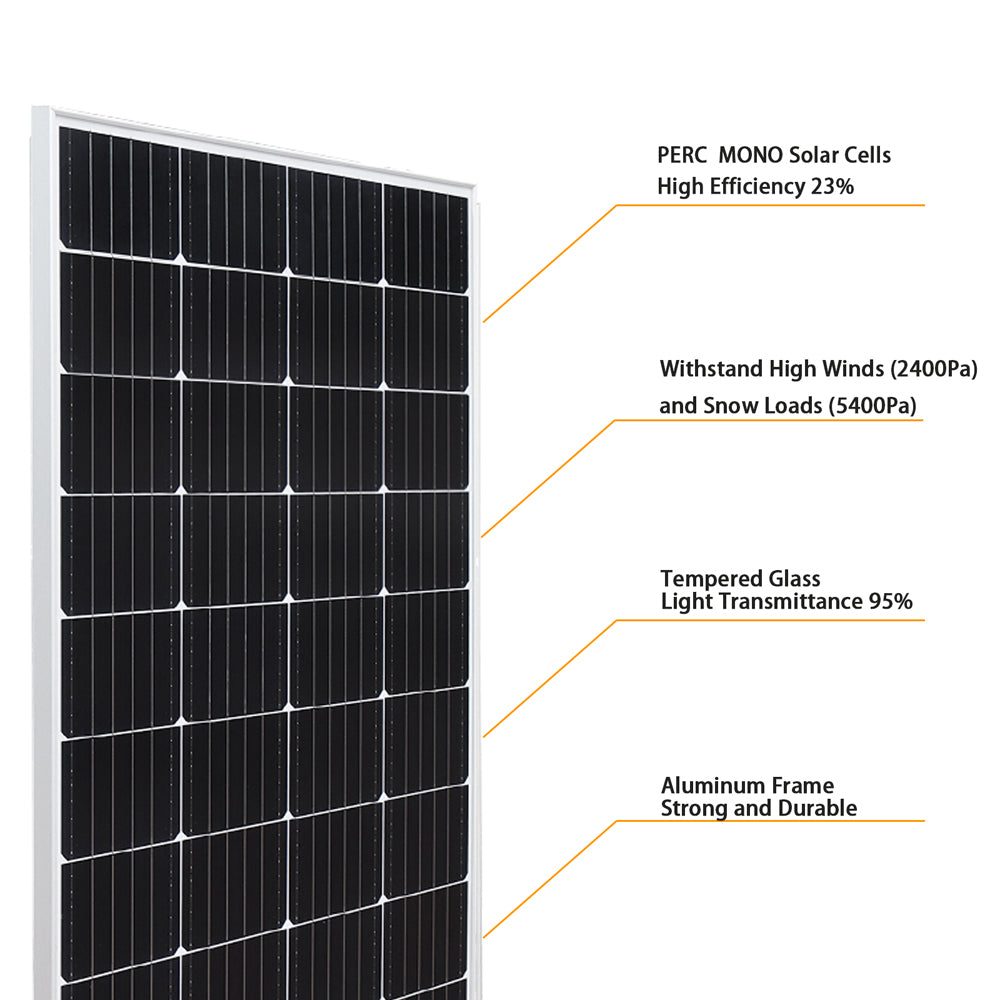

The solar panels are made of A+ PERC monocrystalline silicon cells with a conversion rate of 23%. Each solar panel can produce 600-750W of energy (depending on the intensity of light).
Robust and durable：Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .

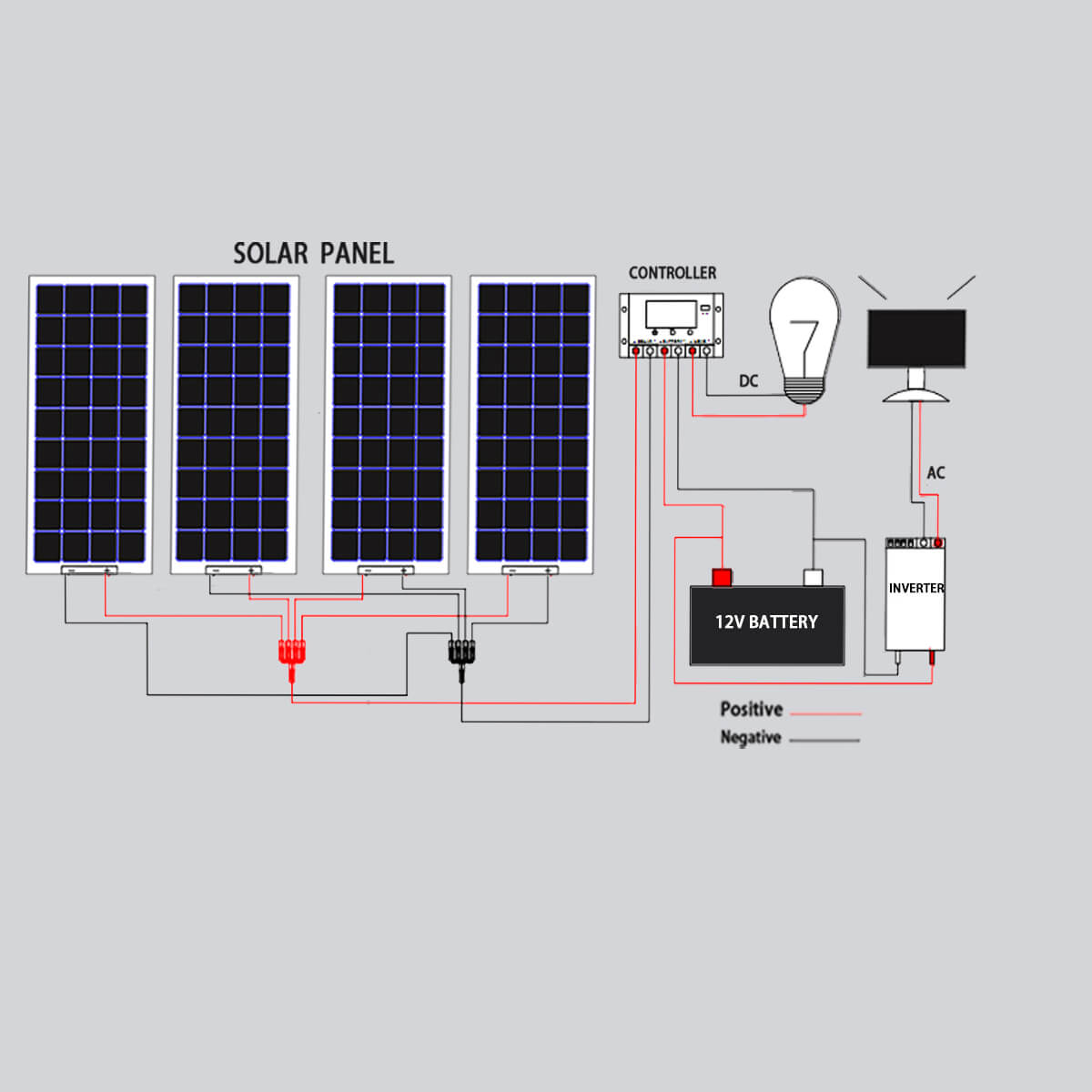

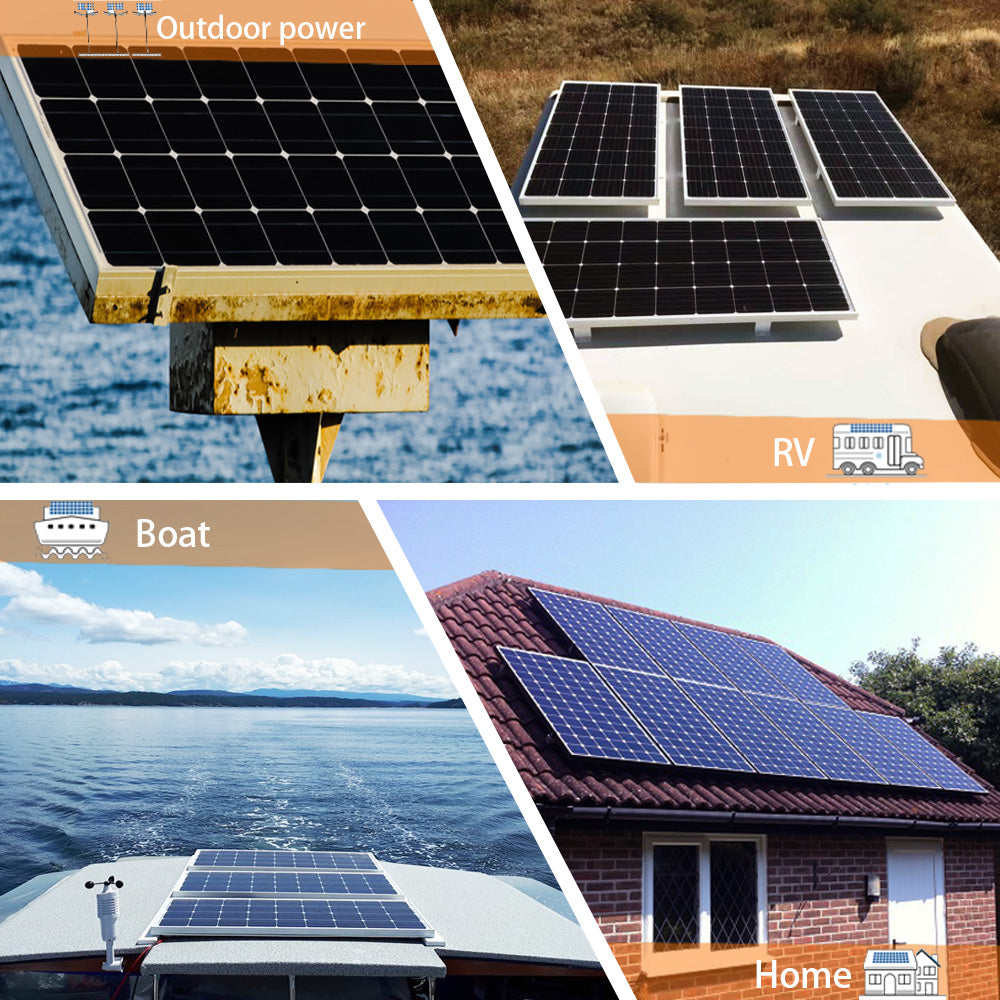

Multiple applications: Solar kit with 12V battery off-grid, perfect solution for power supply. Such as street lights, indicators, door openers, etc.. Also can meet the RV, boat, cabin, trailer, farm, home, etc. lack of power, power failure problems.

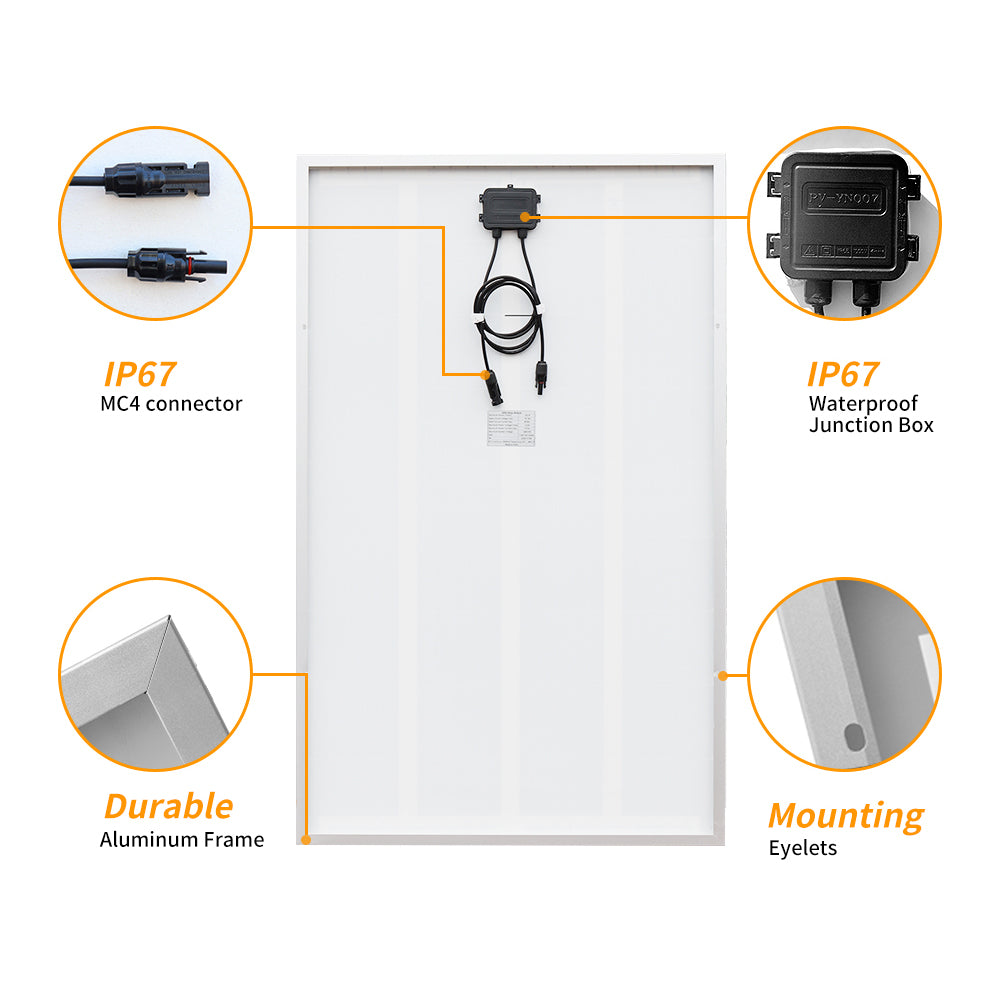

About installation: The solar panels have pre-drilled holes in the aluminum frame. Z-bracket, adjustable bracket, ABS bracket can be used for installation. The cable is plug and play, easy to install.
