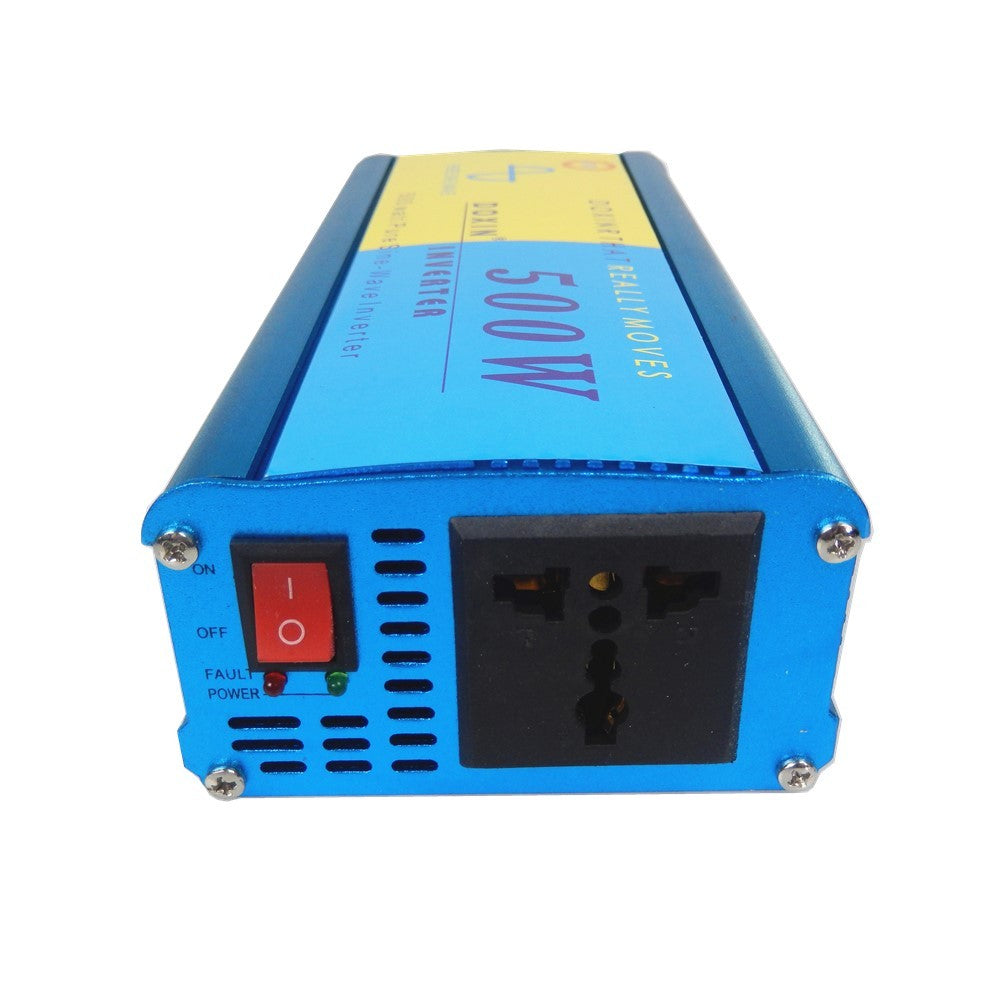

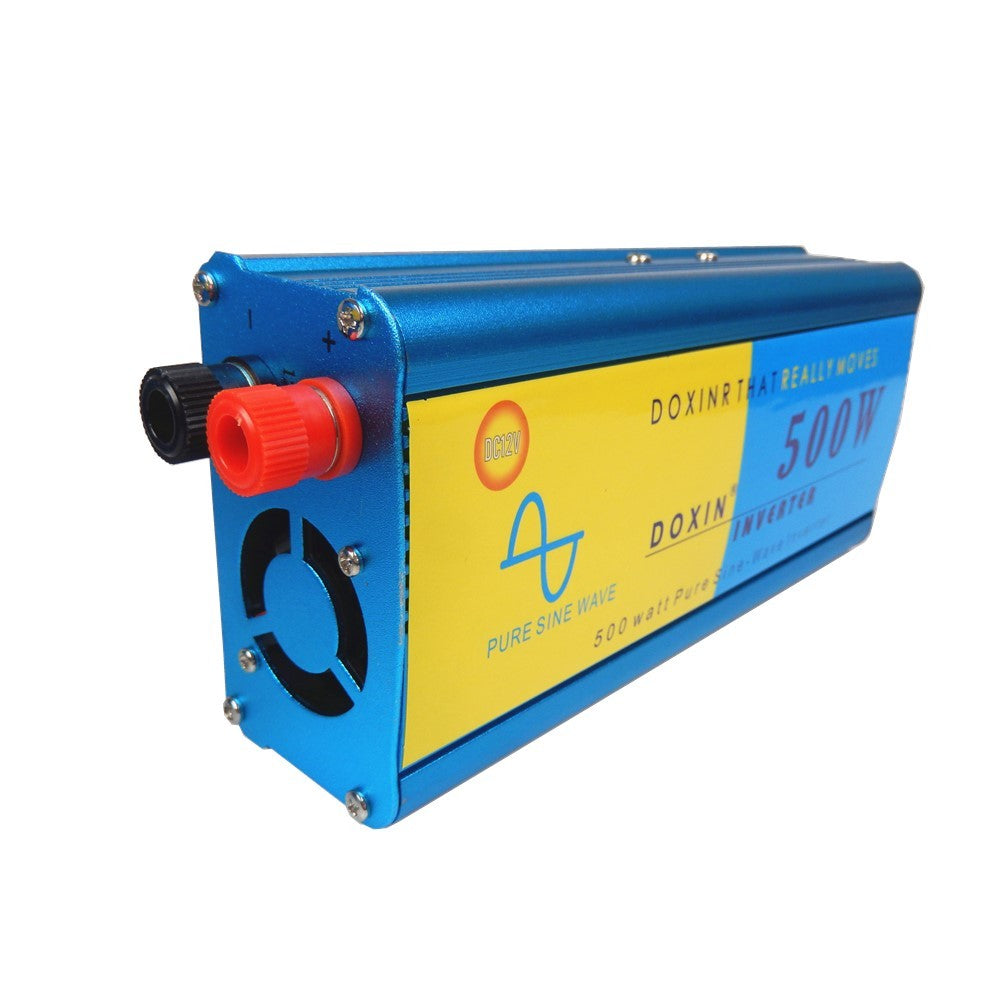

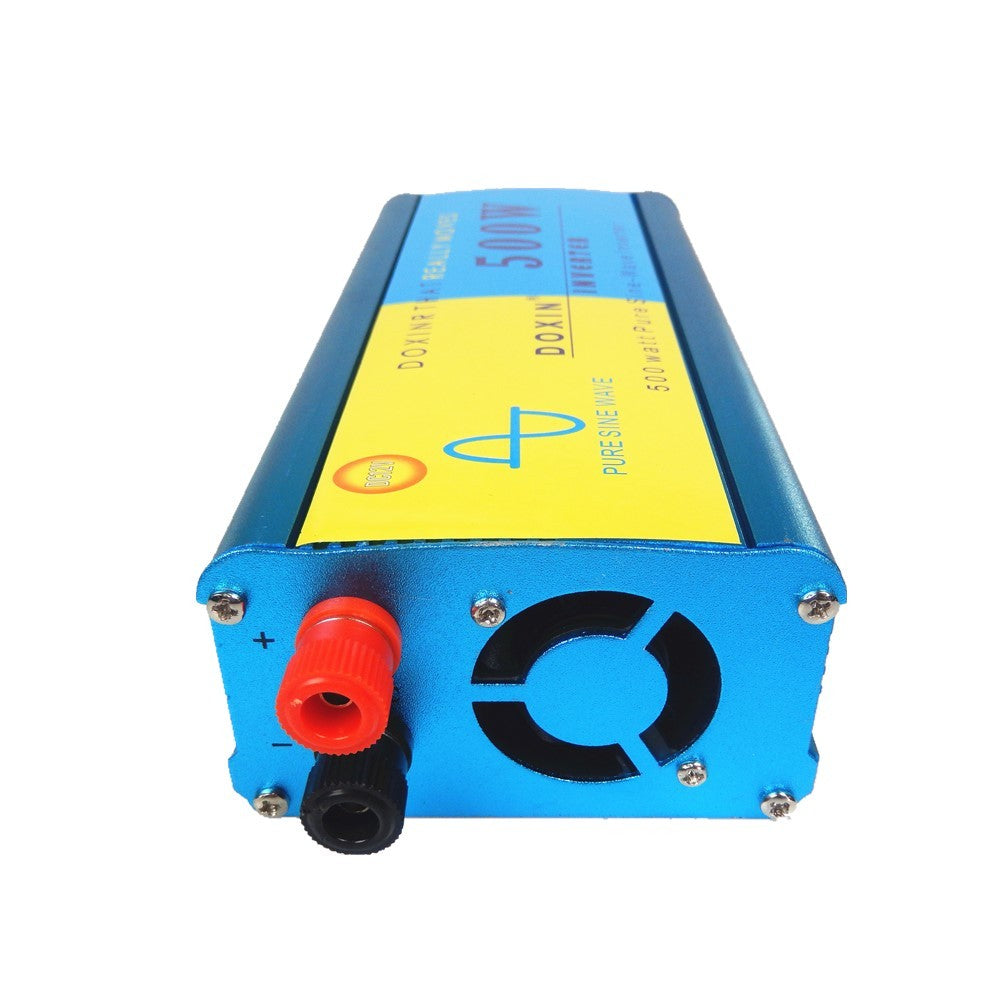

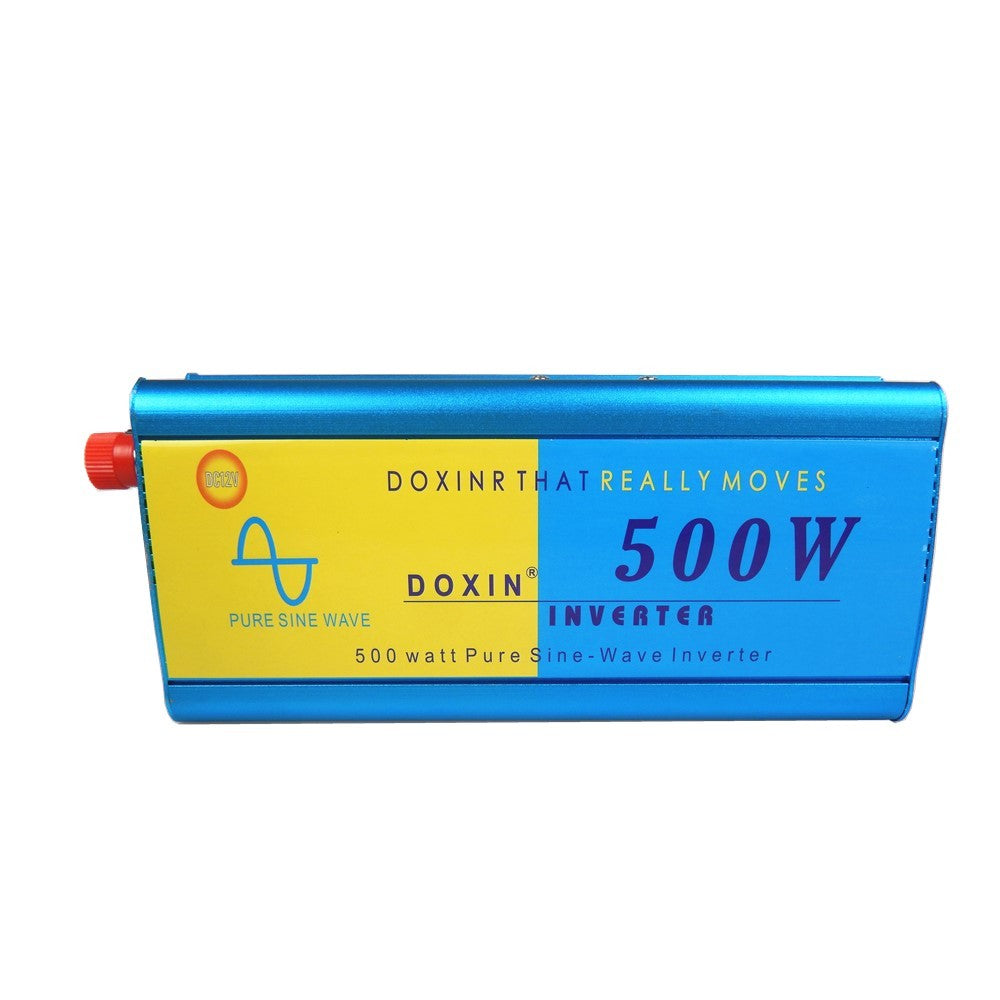

500W DC 12V to AC 220V Pure Sine Wave inverter

$82.90
ship from:
Quantity:





Model:500W
Output waveform:Pure sine wave
Continuous power :500W
Surge power :1000W
Rated Input volt :12
Input voltage range:10-16VDC
Standby input power:<10W
Output volt:110/220 /230 /240V AC
Frequency:50/60±3Hz
Efficiency:>90%
Overload and Short-circuit Protection:YES
THD:< 5%
Cooling:Fan
Max Outer Temperature:< 65°C
Dimension(L*W*H)mm:200*95*55mm
NW/ GW:0.75KG / 1KG

Protection Specialty
Input Low Voltage Protection:10V±0.5V
Input High Voltage Protection:17V
Low Input Voltage Alarm:10VDC
Output Overload >550W Protect Time:30 seconds
Output Short-circuit Protection time:2~3 seconds
Input Anti-access Protection:Self repair
Temperature Protection:>70℃
Operating temperature:‘-20 oC~ + 40oC
Storage temperature:’-30 oC~ + 80oC
Output overload(>600W)Protection time:2~3 seconds
