Xinpuguang

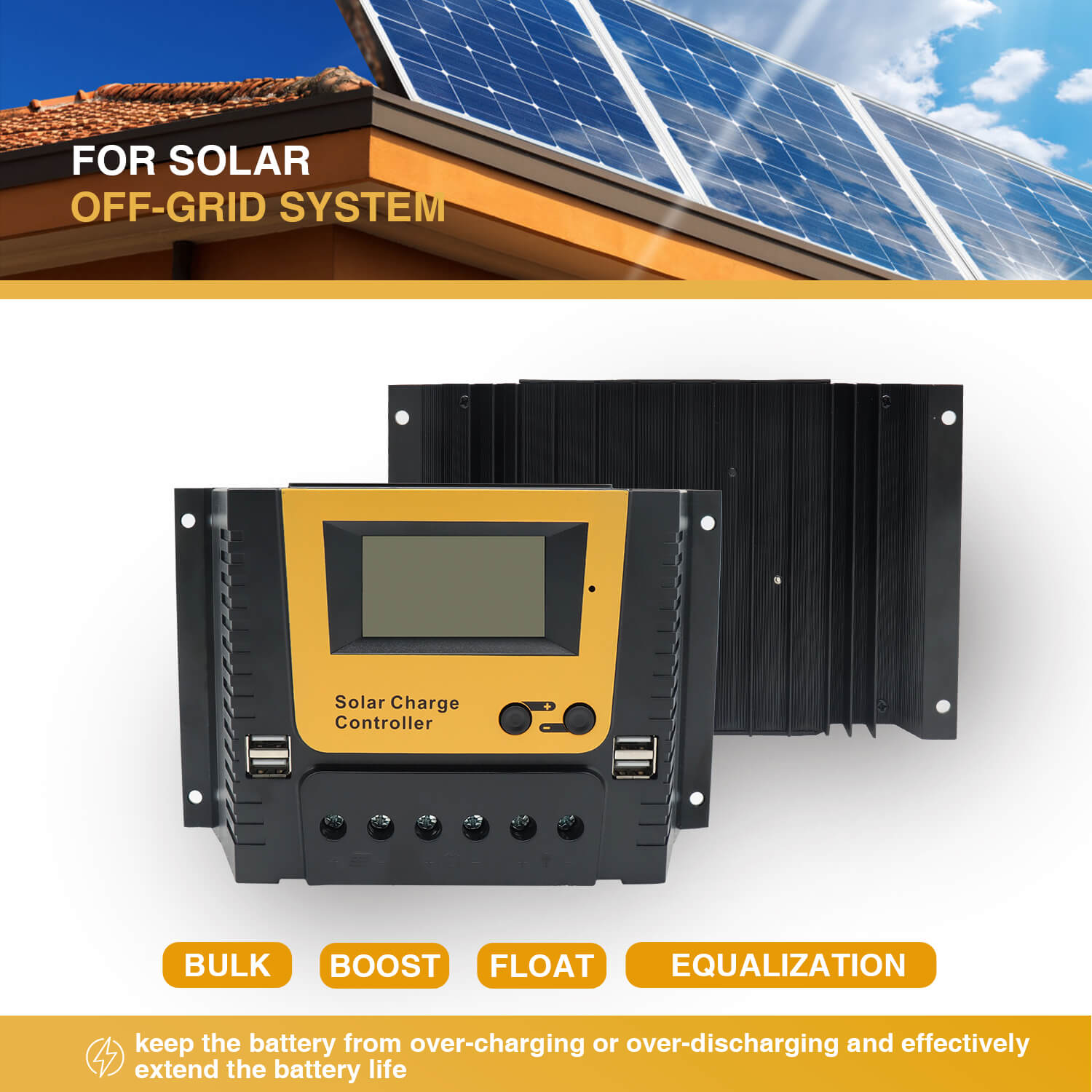

40A 12V/24V PWM Solar Charge Controller

$56.90
ship from:
Quantity:

Rated Voltage:12V/24V AUTO
Rated Curent:40A
USB outputvoltage/ument:5V
DC outputvoltage/aument:12V
Voltageof solarpanels:≤50V
Foat charging voltage:13.7V/27.4V
Low voltage protection:10.5V/21V
Low voltage recovery:12.2V/24.4V
No-load loss:s10mA;
Loop voltage drop:s170mV;
Temperature compensation:-4mV/Cell/C
Operating temperature:-20C~+60C
Storage temperature-:30^C~+70C;
Humidity requirements:<90%, no condensation
Installation cable area:>3# AWG (25mm )

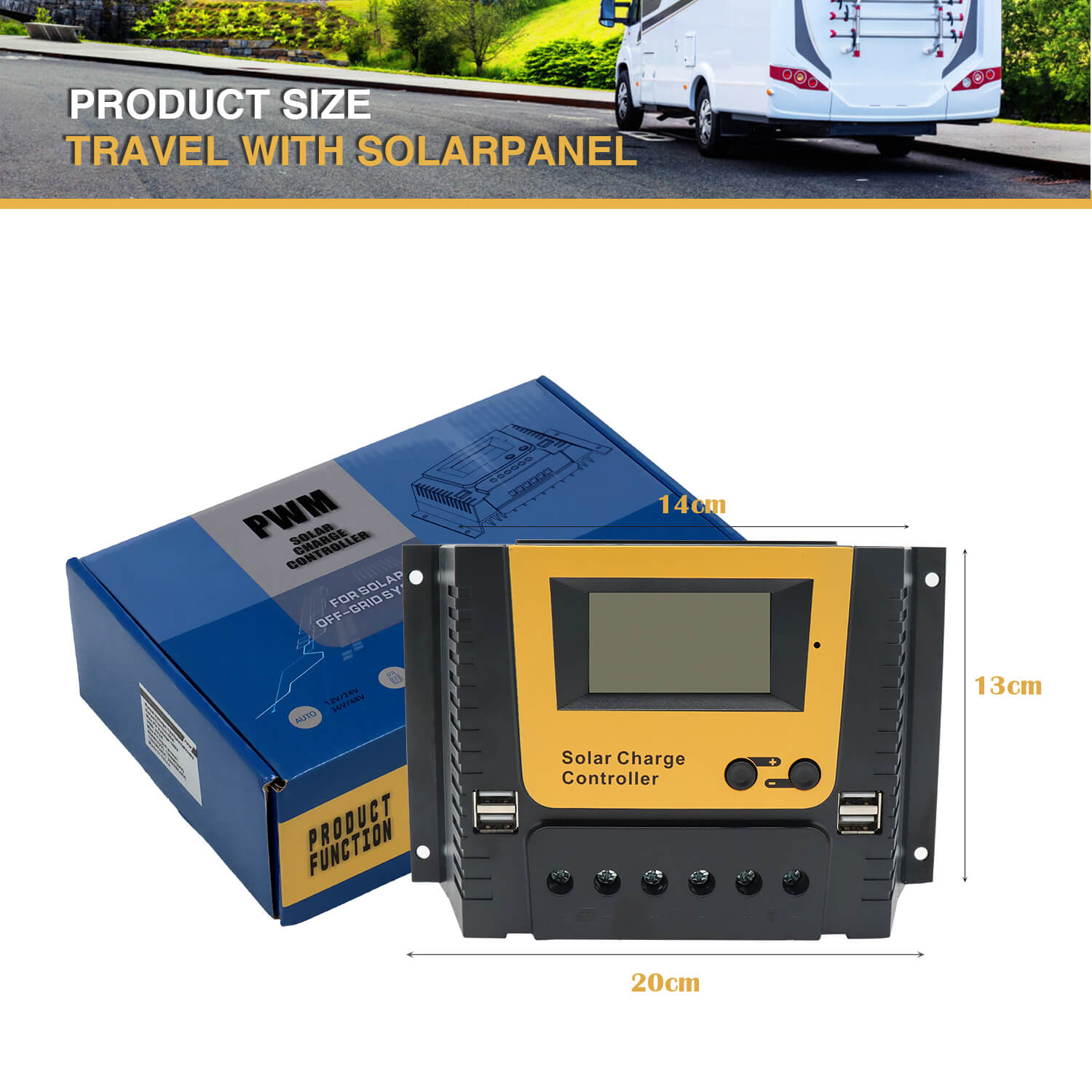

Package size:205x105x62mm
Weight:297g

This controller is a kind of intelligent, multi-purpose solar charge and discharge controller. This series of products adopt an LCD display, which makes the operation on the interface quite convenient. All the control parameters can be reset flexibly to meet your different needs.

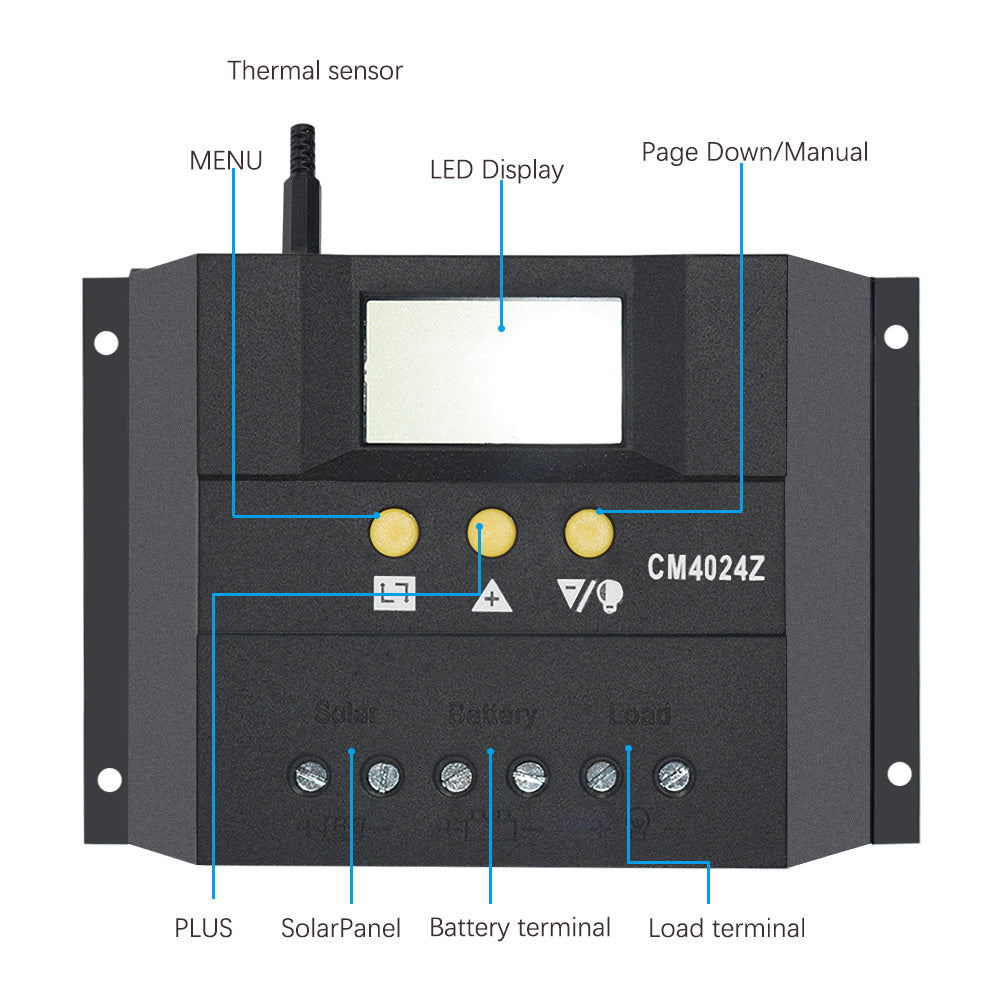

♦ LCD display, short key operation, very convenient.

♦ PWM charging mode can improve system efficiency and extend the life of the battery.

♦ Automatic identification system voltage level, automatic temperature compensation.

♦ Adjustable charge-discharge control parameters, adjustable modes of loads.

♦ Overload / short circuit protection, battery reverse discharge / reverse polarity protection.

♦ Battery low voltage shutdown (LVD).

♦ Accumulated function of charge and discharge ampere-hours.

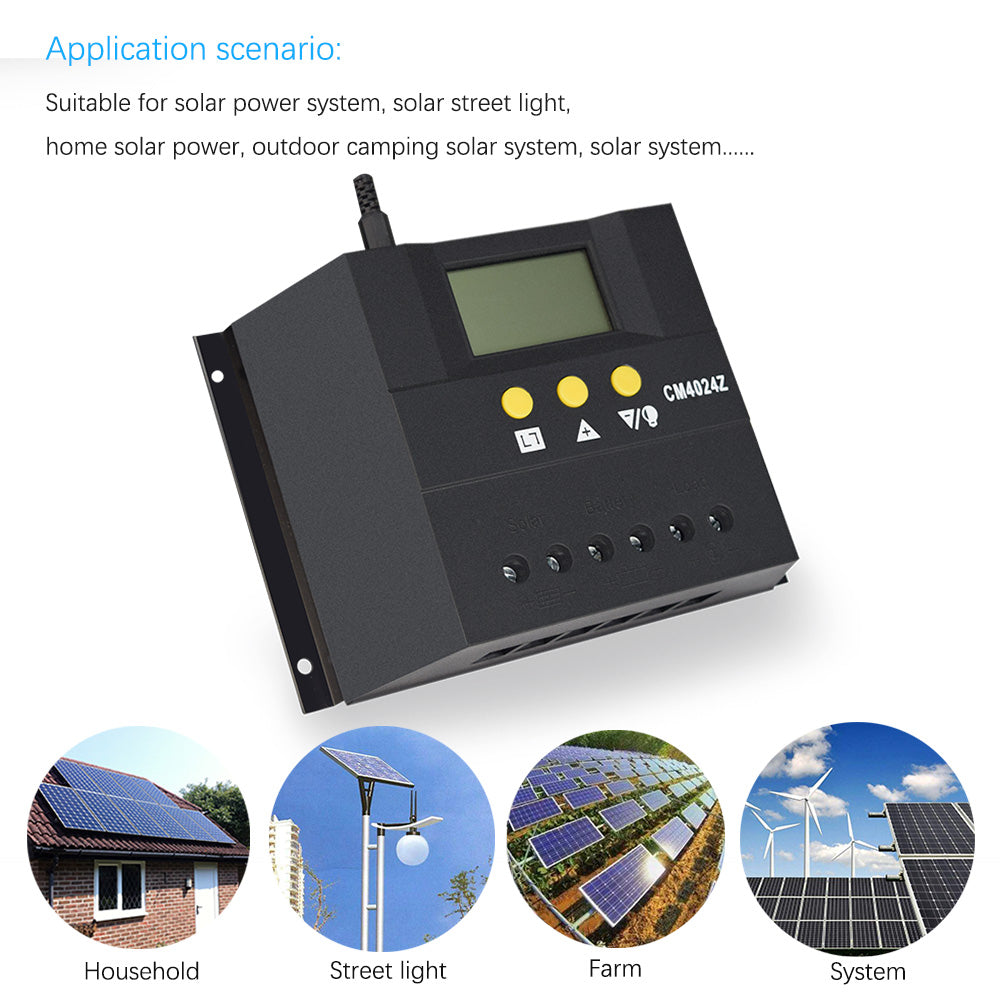

♦ Suitable for street and pathway lighting, parking lot, bus station, etc.
