Maximum Power Output: 150W
Maximum Power Voltage (Vmp): 19.8V
Maximum Power Current (Imp): 7.57A
Open-Circuit Voltage (Voc): 23.76V
Short-Circuit Current (Isc): 8.32A
Maximum System Voltage: 1000V DC

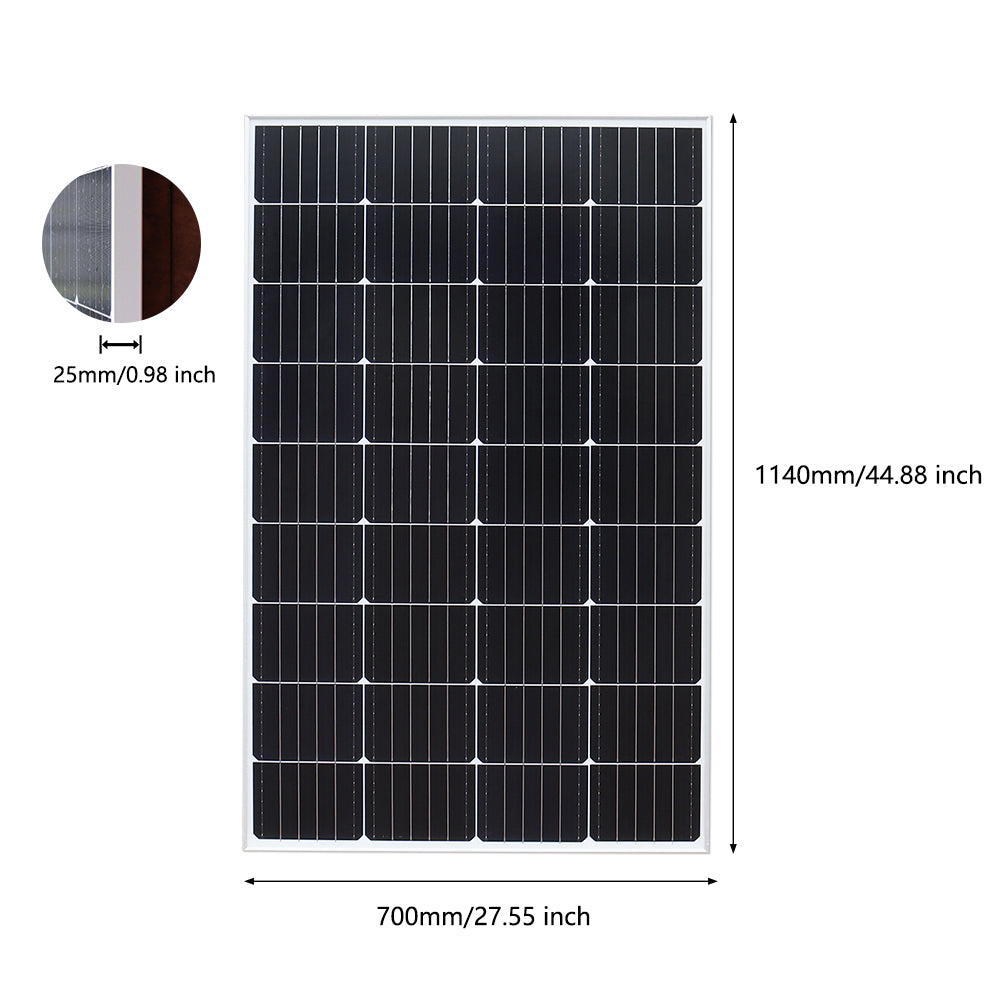

Dimensions: 44.88 x27.55x0.98 inch
Standard Test Conditions： irradiance 1000w/m^2，Temperature 25℃, AM=1.5
Maximum input power: 300Watt
Recommended solar panels: 300-400W
Solar Panel Open Circuit Voltage Range: 36-50VOC
Peak Power Tracking Voltage: 22-45V
Min/Max Start Voltage: 22-50V
Maximum DC Short Circuit Current: 40A
Maximum input operating current: 15A
Output Parameters: @120VAC/@230VAC
Peak output power: 300Watt
Rated output power: 280Watt
Rated output current: 2.8A/1.3A
Rated voltage range: 90-160VAC/190-260VAC
Rated frequency range: 47-52.5Hz /57-62.5Hz
Power factor: >99%
Number of connected units per string circuit: 5 sets（Single Phase）/10 set（Single Phase）
Output efficiency: @120VAC/@230VAC
Static MPPT efficiency: 99.50%
Maximum Output Efficiency: 90.50%
Night-time power loss: <1W
Operating temperature range: -40℃to +60℃
Dimension (L×W×H): 283mm×200mm×41.6mm
Net weight: 1.5KG
Waterproof grade: IP65
Heat dissipation mode: self-cooling
Communication mode: 433/462MH zwireless communication
Power transmission mode: Reverse transfer, load priority
Electromagnetic compatibility: EN50081.part1 EN50082.part1
Grid disturbance: "EN61000-3-2 Safety
Grid detection: DIN VDE 1026 UL1741

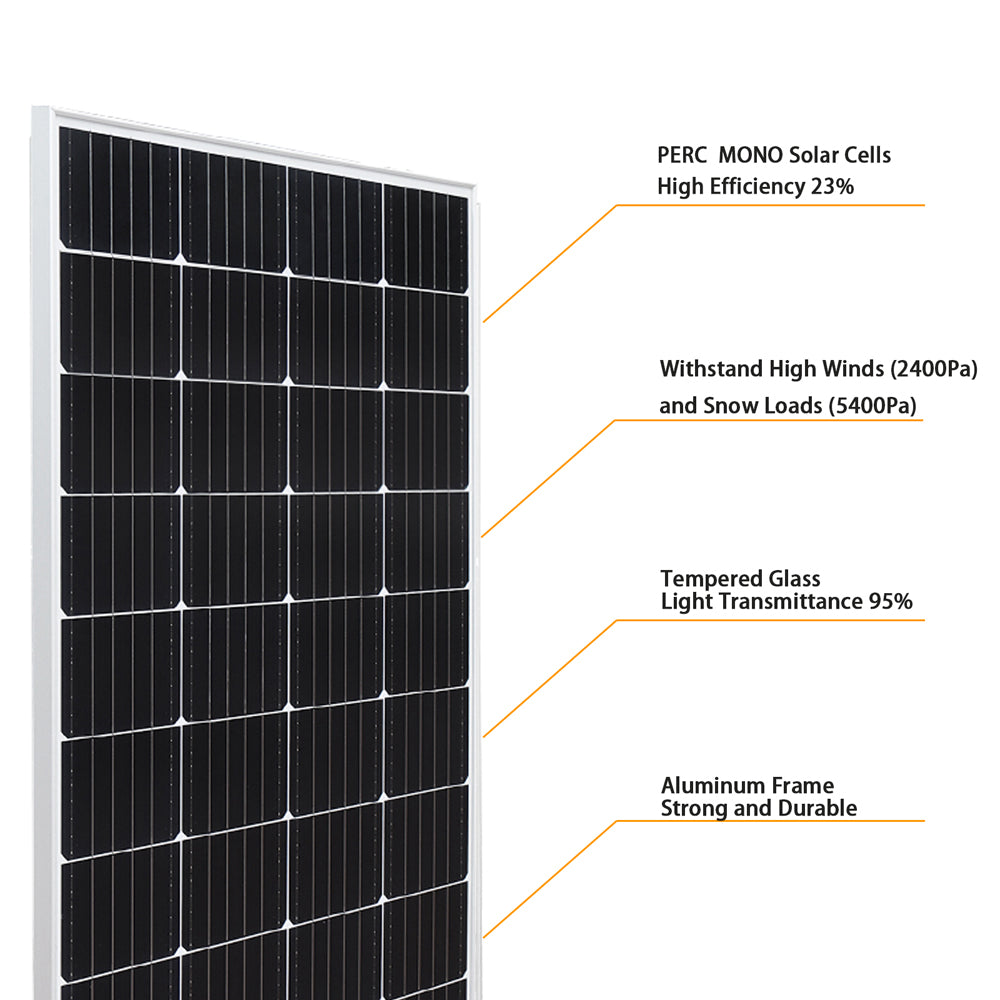

High Efficiency: The 300W solar panel kit is made of high efficiency monocrystalline solar cells with a conversion rate of up to 22% and offers a long service life.

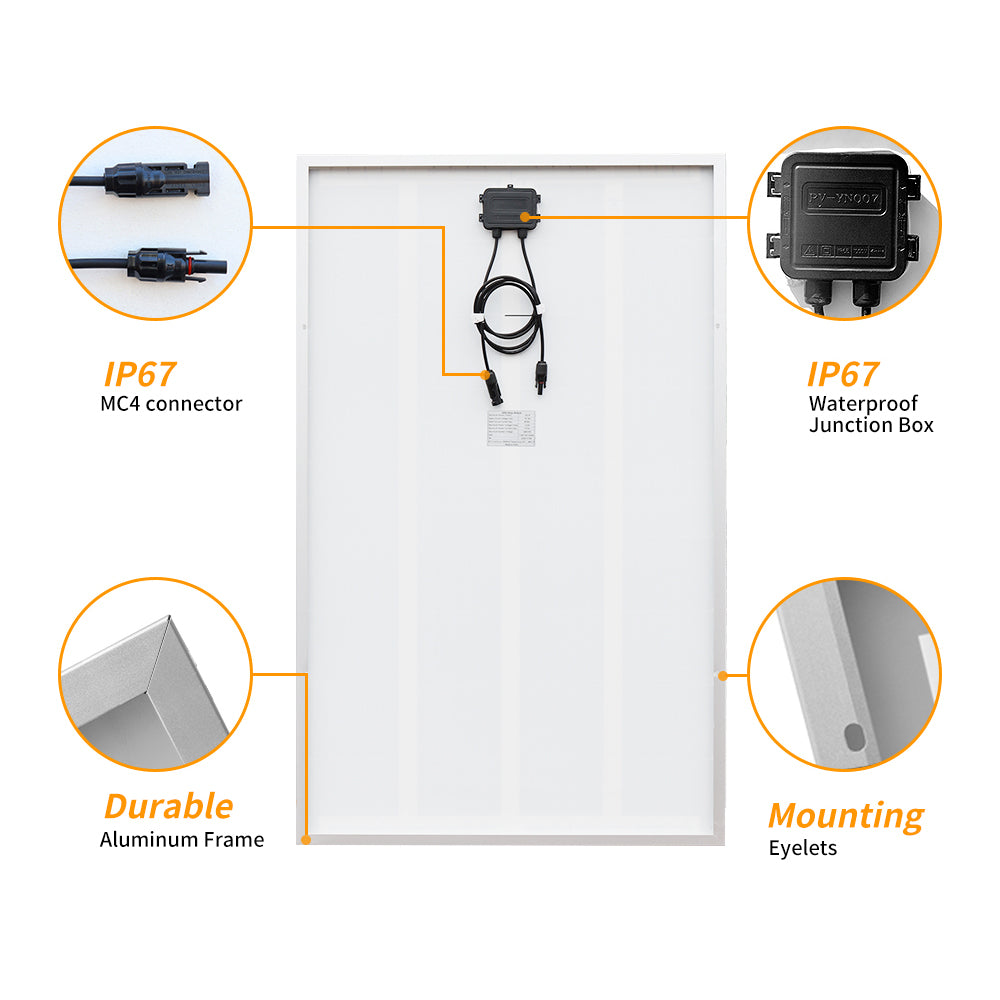

Durable: The anodized aluminum frames, tempered glass and sealed junction box make the solar panel corrosion resistant and weatherproof for excellent outdoor performance.

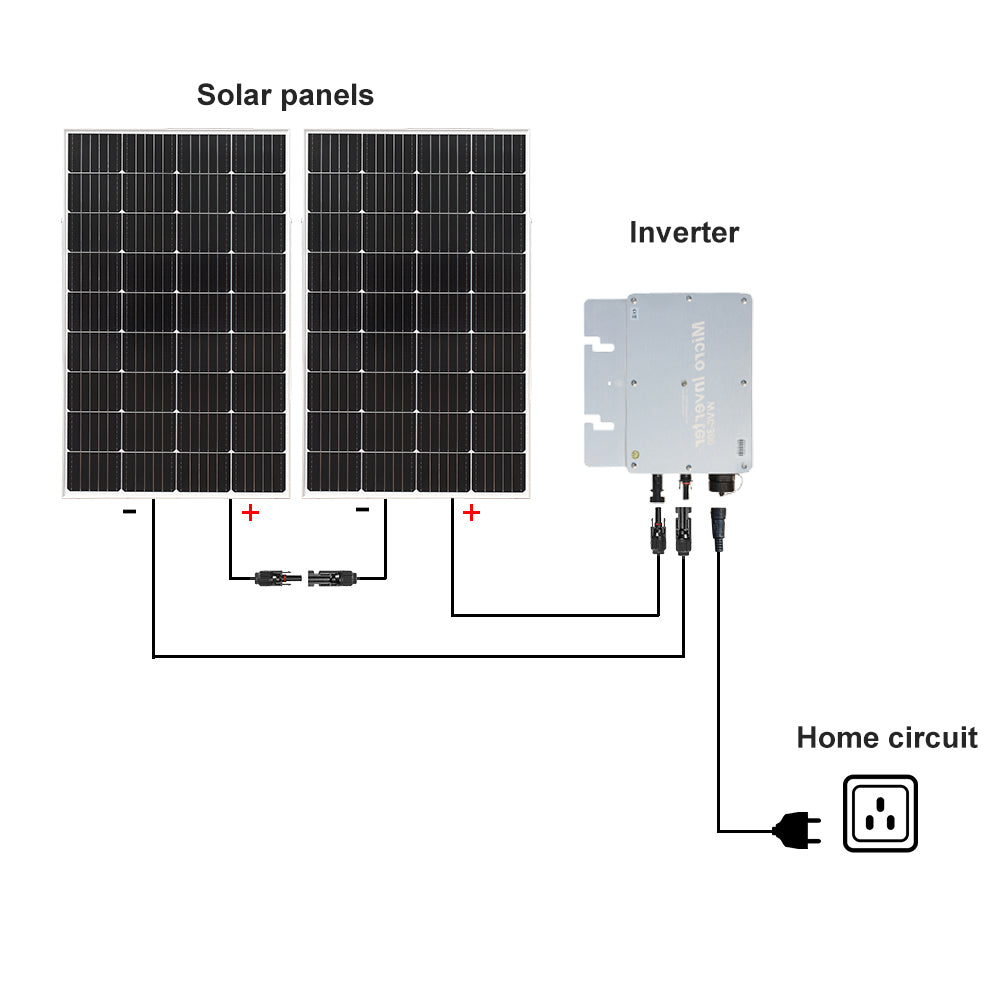

Easy to install: Solar panels have pre-determined mounting holes and can be installed using brackets.This is a grid-tied solar panel that can be installed on balcony, railing, roof, garden. The grid system is connected to the power grid by the European plug extension cable. It is plug-and-play and meets the household power needs.
Professional service: this 300W system has undergone strict quality inspection, and we have professional R&D technicians, quality engineers and excellent after-sales service teams. You can contact us anytime if you have any questions, we will serve you wholeheartedly.
Balcony power kit includes.
2X 150W solar panels
1X300W grid-connected micro-inverter
1X5M AC connection cable
1X 3M MC-4 extension cable
4X Z-type mounting bracket
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
