Maximum Power Output: 150W
Maximum Power Voltage (Vmp): 19.8V
Maximum Power Current (Imp): 7.57A
Open-Circuit Voltage (Voc): 23.76V
Short-Circuit Current (Isc): 8.32A
Maximum System Voltage: 1000V DC

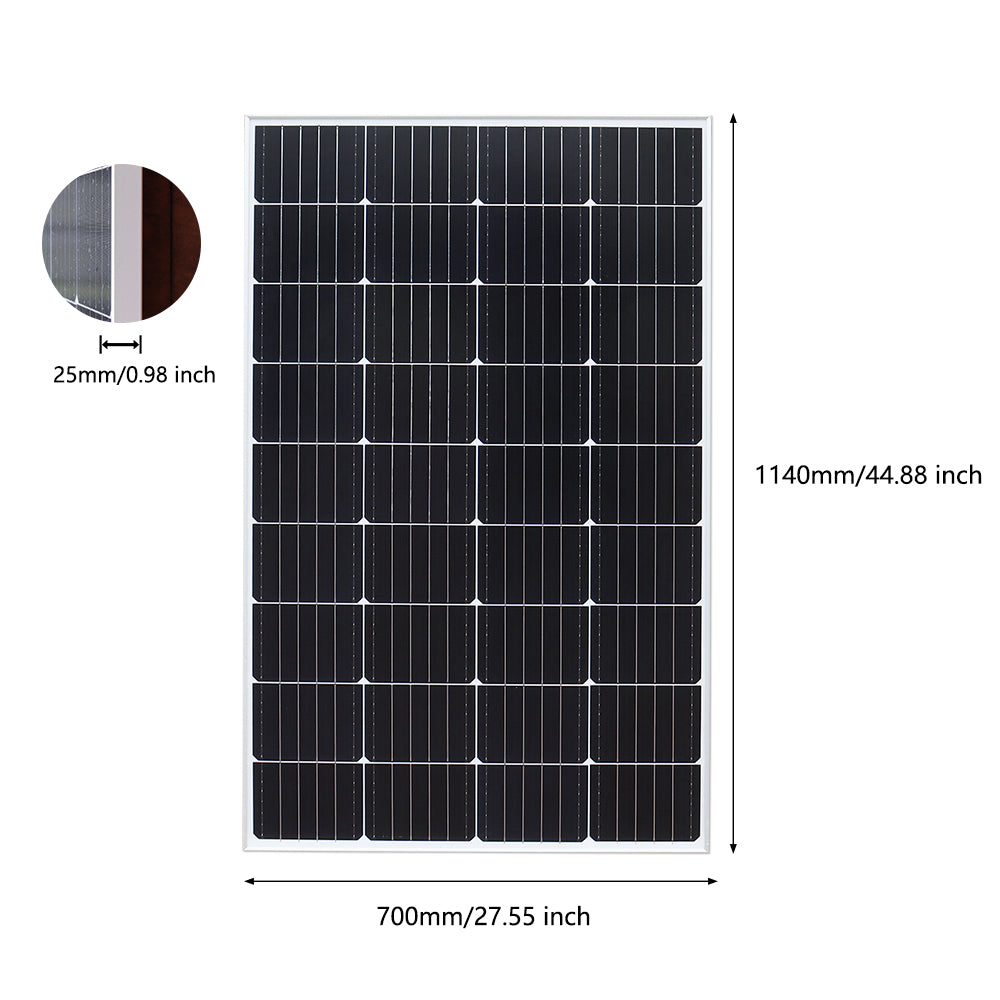

Dimensions: 44.88 x27.55x0.98 inch
Battery voltage：12V/24V auto
Operating temperature：-35~+60 ℃
suitable for ：lead acid batteries， lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

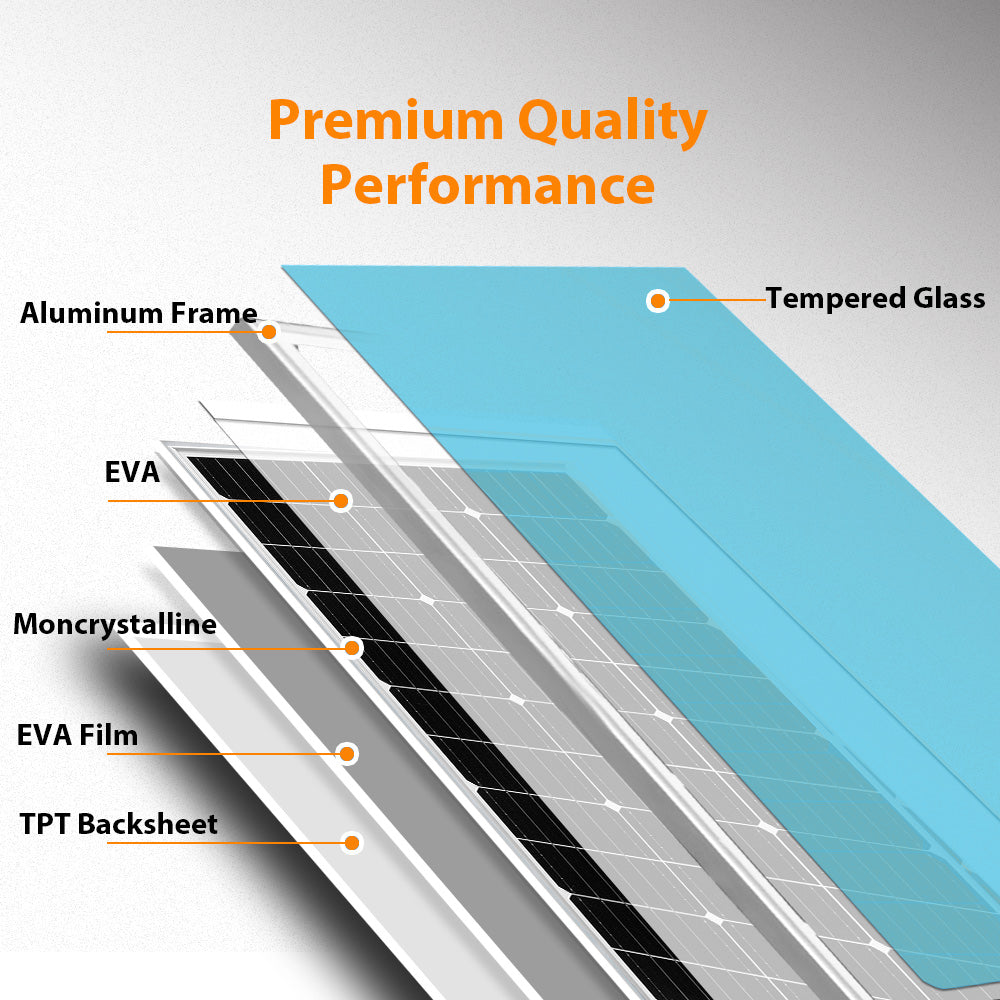

The solar panels are made of A+ PERC monocrystalline silicon cells with a conversion rate of 23%. Each solar panel can produce 600-750W of energy (depending on the intensity of light).

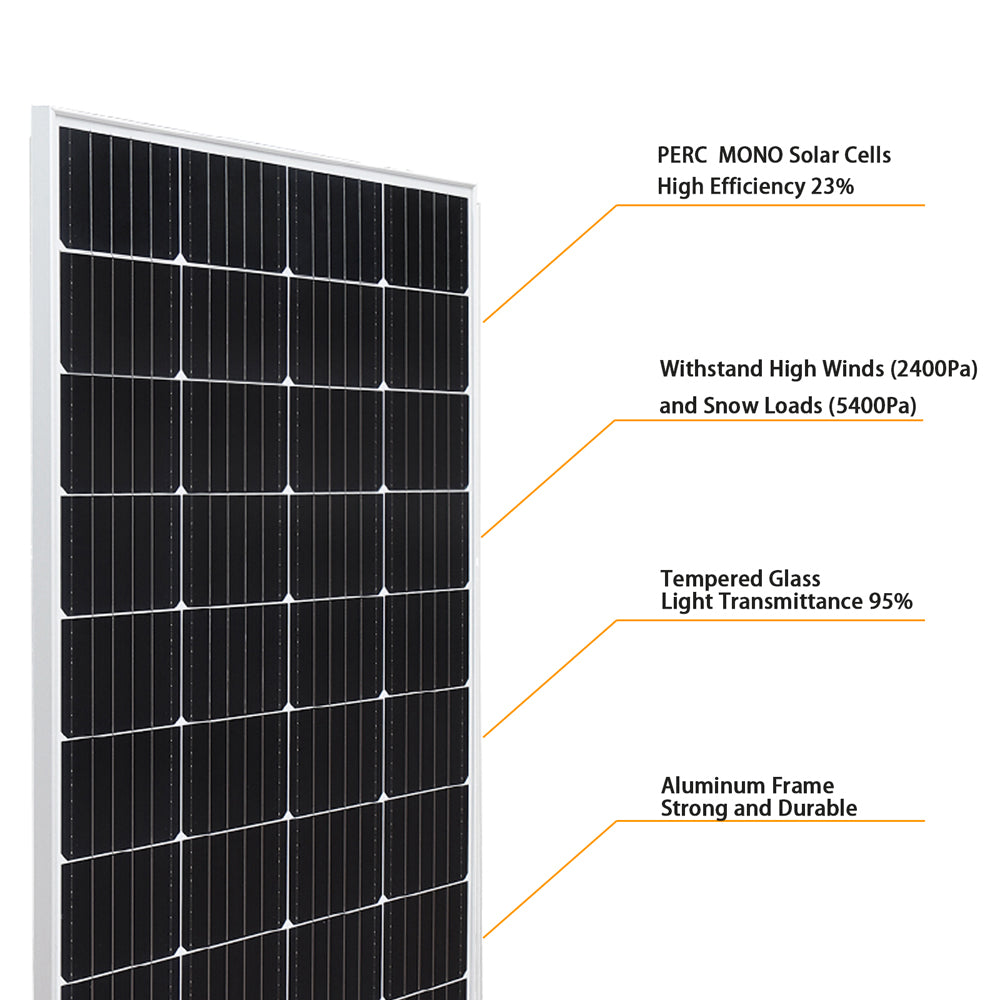

Robust and durable：Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .

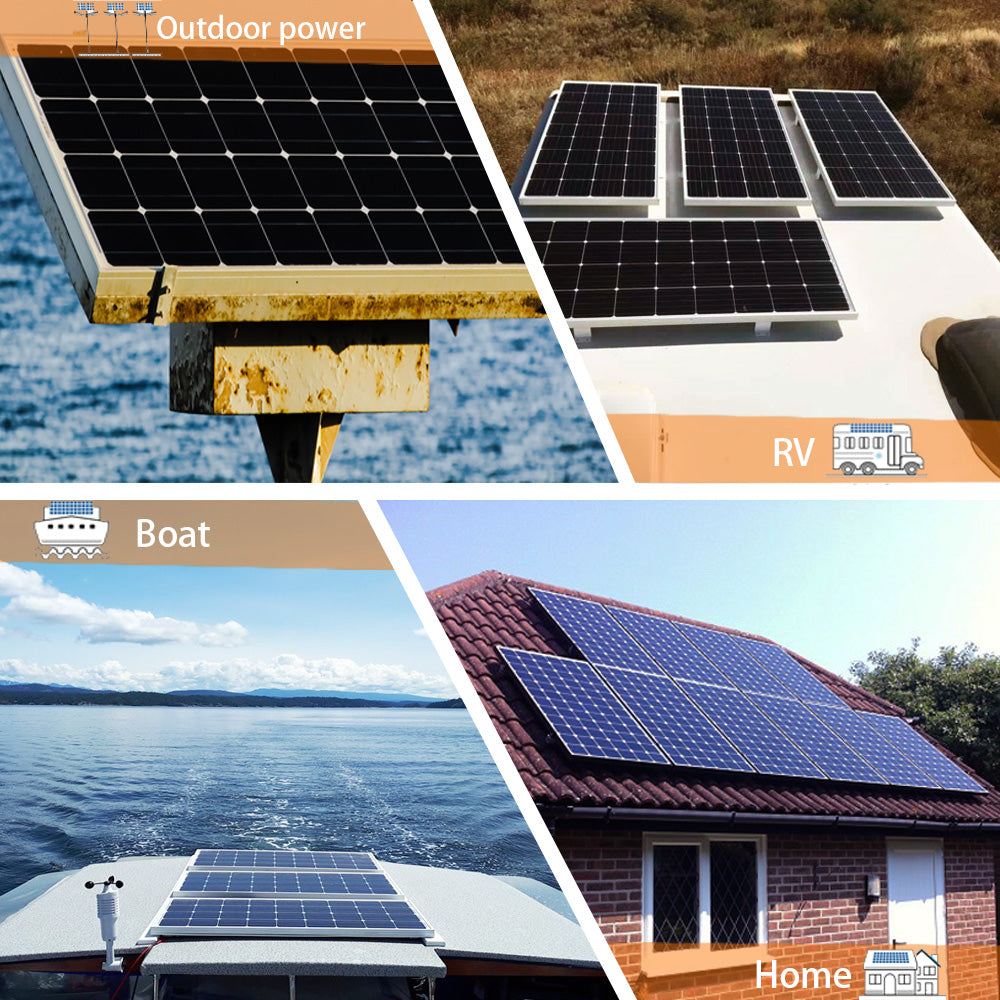

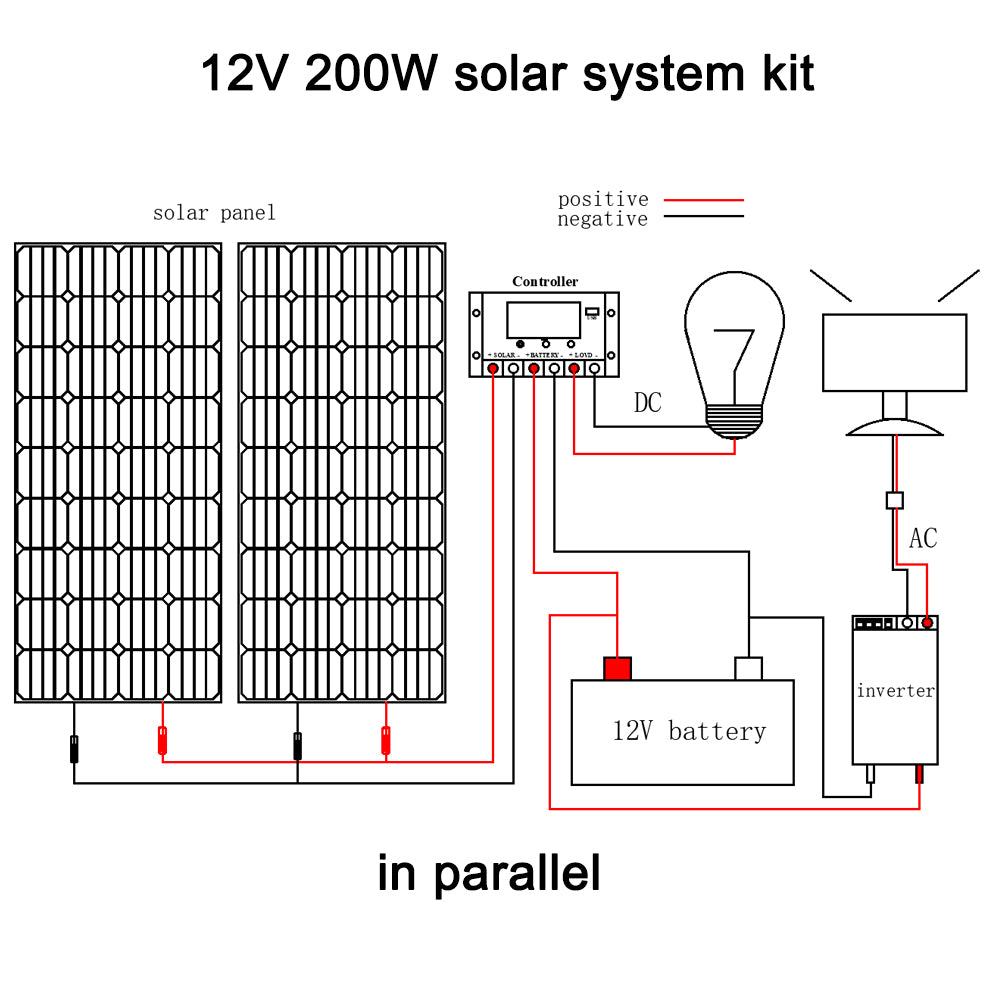

Multiple applications: Solar kit with 12V battery off-grid, perfect solution for power supply. Such as street lights, indicators, door openers, etc.. Also can meet the RV, boat, cabin, trailer, farm, home, etc. lack of power, power failure problems.

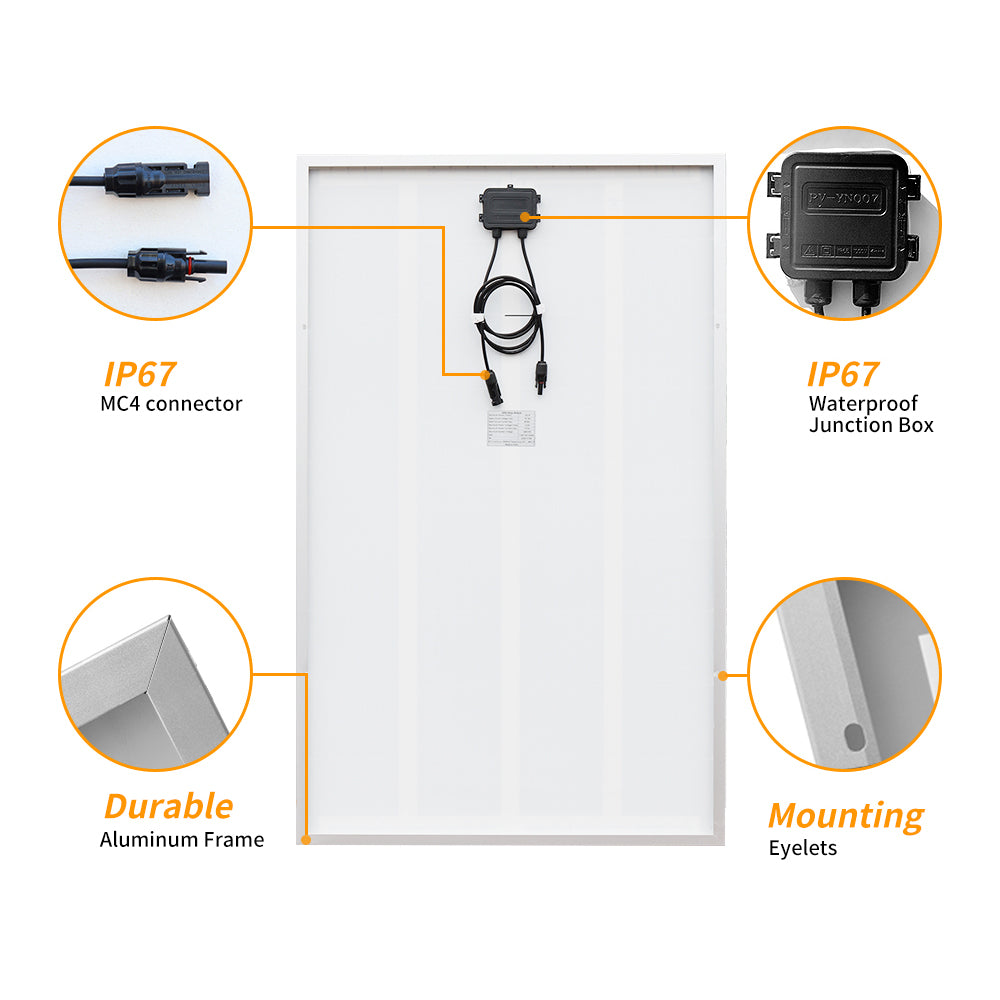

About installation: The solar panels have pre-drilled holes in the aluminum frame. Z-bracket, adjustable bracket, ABS bracket can be used for installation. The cable is plug and play, easy to install.
In order to provide better service, Customers can receive the products quickly.we have set up warehouses in many countries, United States,Australia,Canada, Germany, UK, Spain, France,Belgium, Saudi Arabia. Germany, Full coverage of EU countries, can be delivered.Our warehouse range is also expanding, please look forward to.
