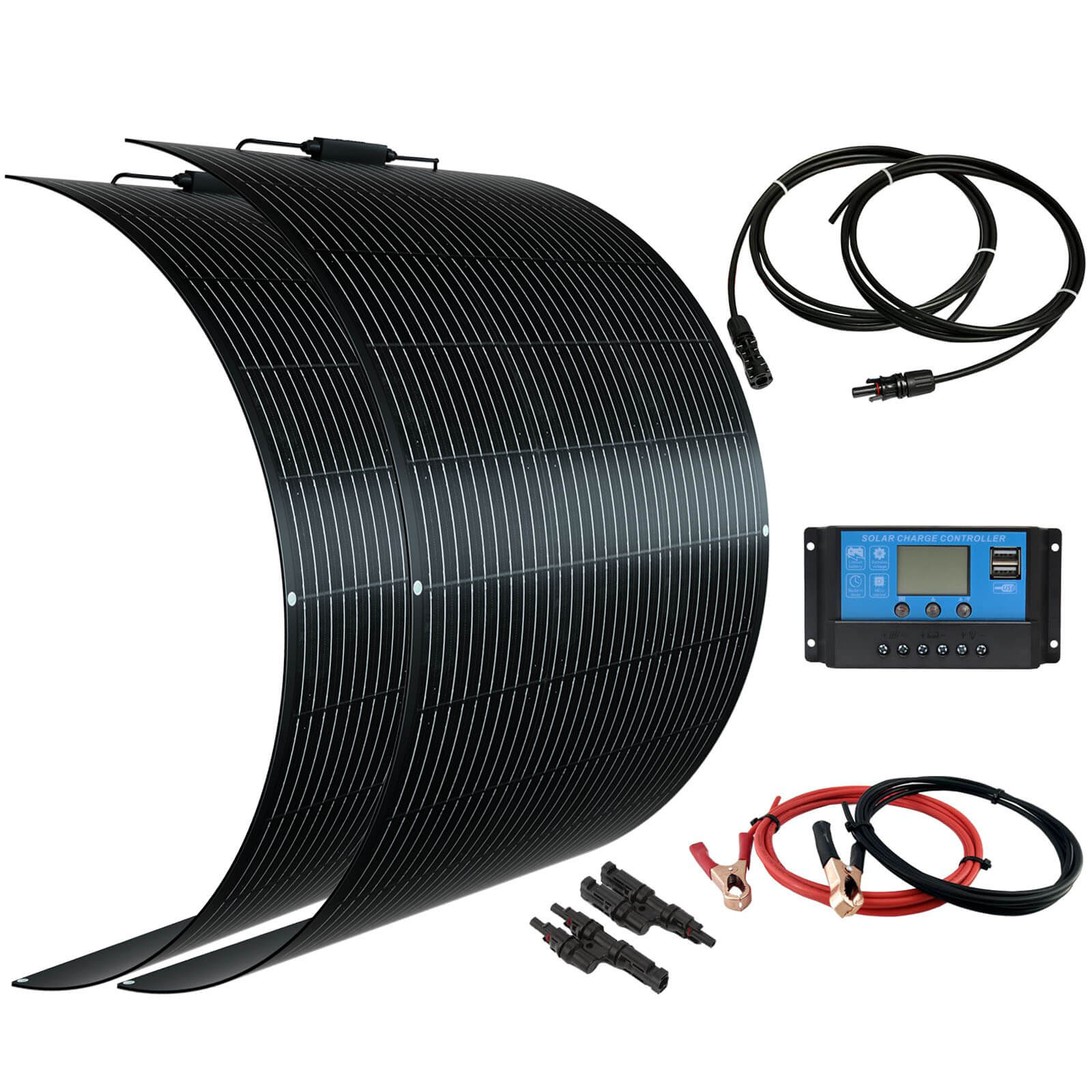

Xinpuguang 200W 12V Flexible Solar Panel Kit

solar panel specification
Maximum power(Pmax) 105W
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.36 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 5.78A
Temperature range -40℃～+80℃
Maximum system voltage 700V DC
Weight 1.85kg(4 lb)
Size 43.11x21.65x0.11 in(1095x550x3mm)
Standard Test Conditions lrradiance 1000w/m2，Temperature 25℃,AM=1.5

20A Controller
att voltage：12V/24V
auto Charge current:20A
Discharge current：20A
USB output：5V/2A
Self-consume：<10mA
Operating temperature：-35~+60 ℃ suitable for ：lead-acid batteries， lithium ions Build-in short-circuit protection,open-circuit protection, reverse

Packing list
1. 2pcs 100w solar panel
2. 1pcs 12v/24v/20A charge controller
3. 1set 3M Extension cable
4. 1set 3M cable with alligator clip(Connect the battery)
5. 1set 2 in 1 parallel adapter

[Excellent performance] High efficiency monocrystalline solar cells offer good performance even under poor light conditions, Including bypass diode, a circuit with input overcurrent protection, reverse protection design
[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat, sailboat, yacht, truck, car, coach, cabin, camper, tent, trailer, golf cart, or any other irregular surface.
[Practicality] Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.
[Lightweight] Ultralight and Ultra-thin ，Better applied to the carrier with weaker bearing, attached to the surface, no space，easy to install,
[Nice Details] The water-resistant semi-flexible solar panel is far more durable than traditional glass and aluminum models， The junction box is sealed and waterproof.
