✈ Solar Panel
Maximum Power (Pmax): 100W
Maximum System Voltage: 700 DC
Maximum Power Voltage (Vmp): 18V
Open Circuit Voltage: 21.6V
Maximum Power Current (Imp): 5.55A
Short Circuit Current: 6.06A

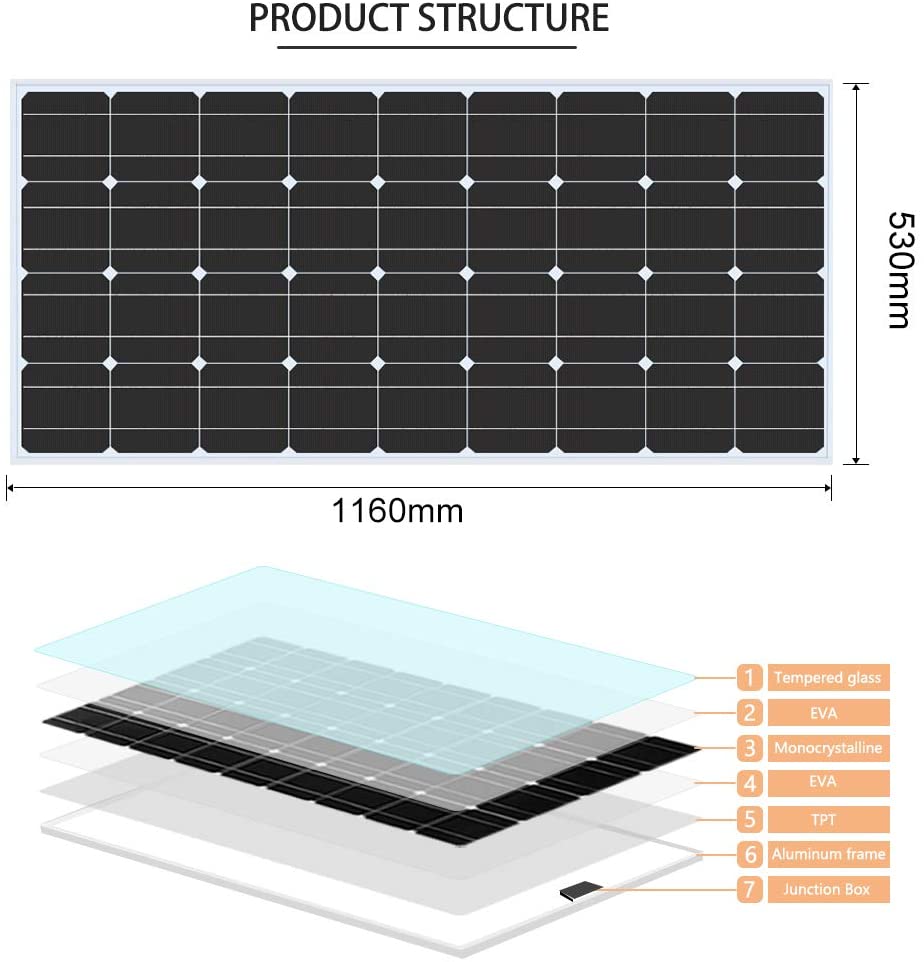

Size: 1160*530*25mm（45.66X20.86X9.84 in）
Batt voltage：12V/24V auto
Operating temperature：-35~+60 ℃
suitable for ：lead-acid batteries， lithium ions
Build-in short-circuit protection,open-circuit protection,reverse

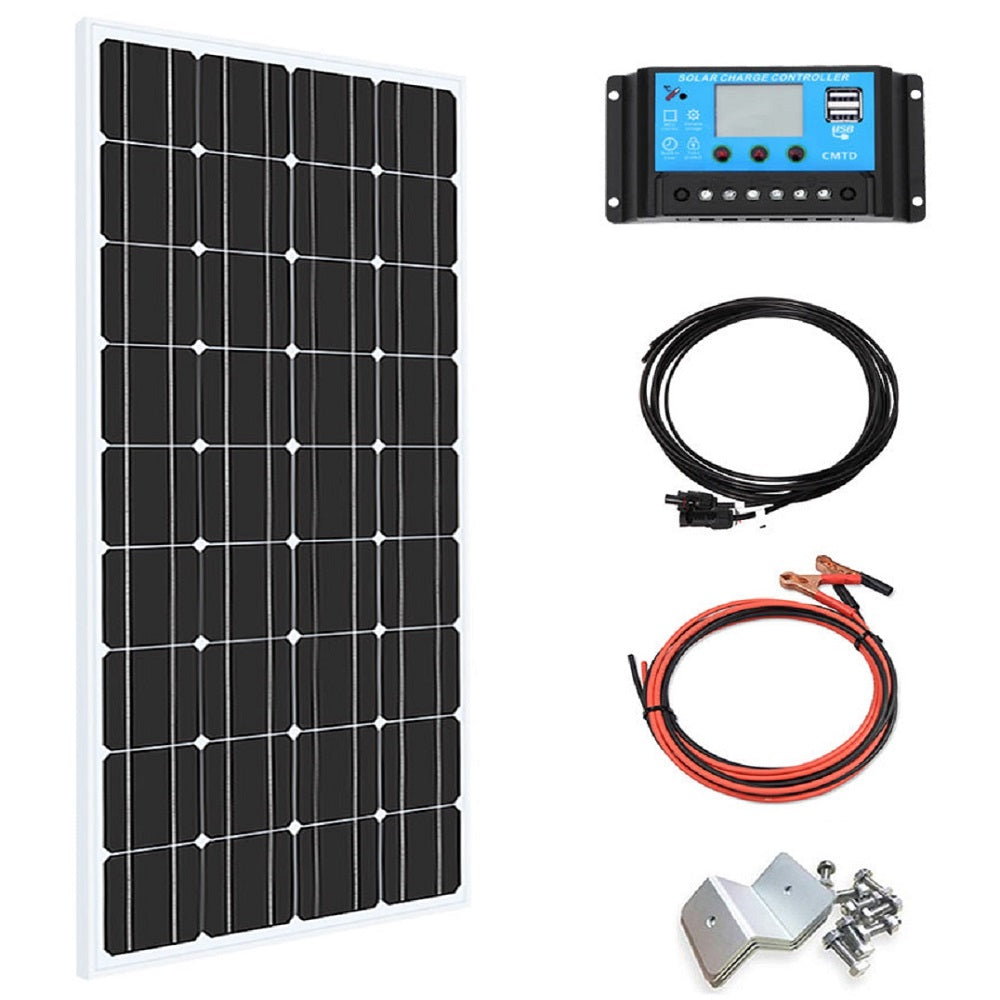

✈ Packing list:
(1) 1 x 100 W solar panels
(2) 1 x 12 V / 24 V 10 A solar charge controller
(3) 1 x 3 m extension cable with plug and socket (2.5 mm2)
(4) 1 x 3 m extension cable with female and male alligator plugs (2.5 mm2)
(5) 4 x mounting brackets

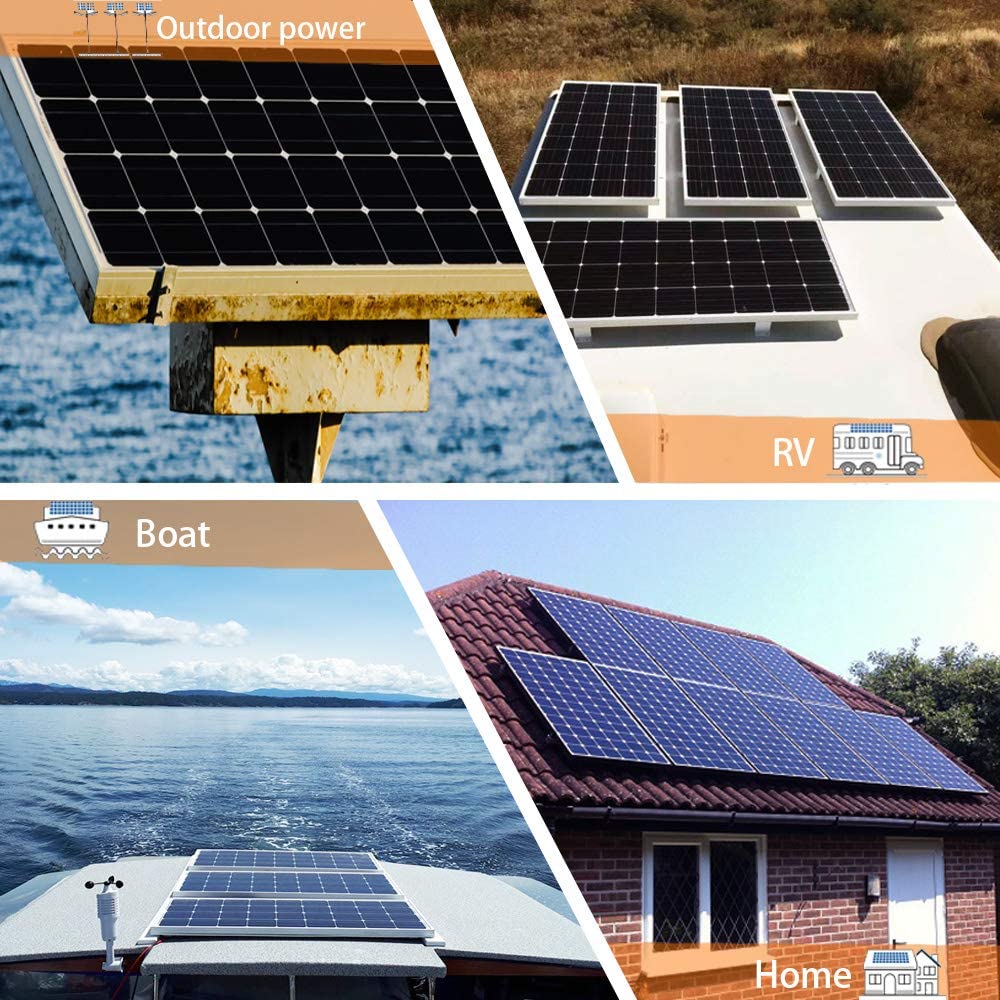

♣ Basic components for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of the panel for fast mounting and securing.
♣ Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.

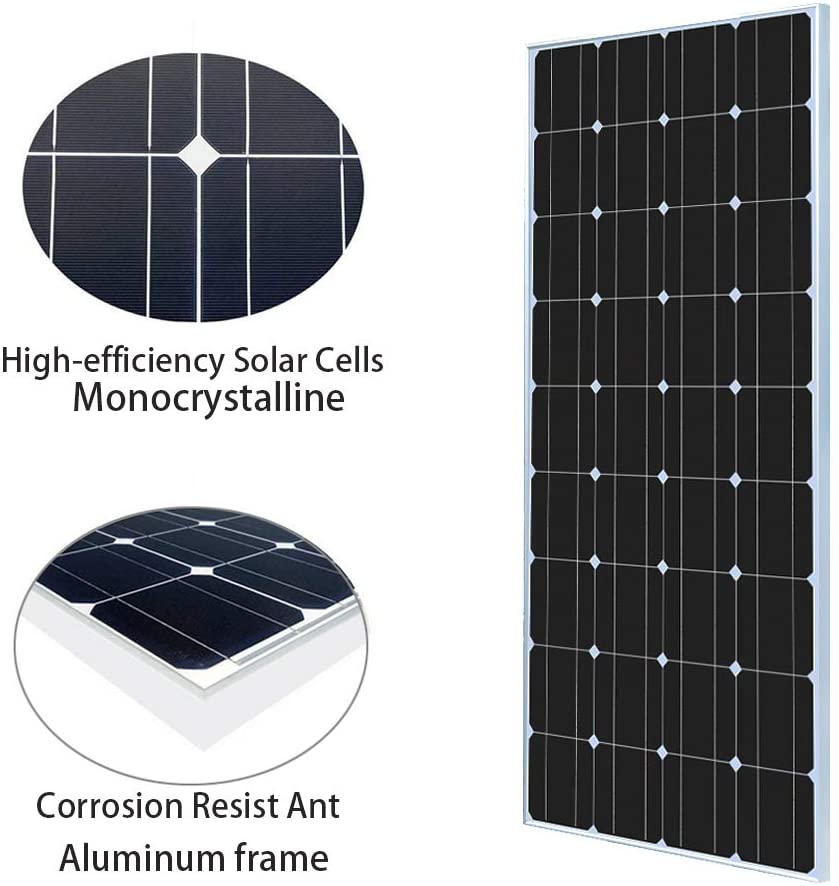

♣ Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa).
♣ By-pass diodes are pre-installed in waterproof IP-65 rated junction box to minimize power drop caused by shade and ensure excellent performance in low-light environments.
